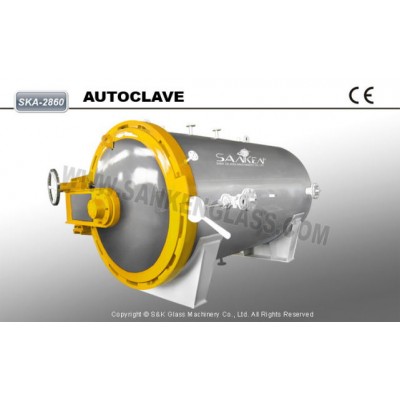

This machine will melt the PVB film and combined two layers or more than two layers glass by high temperature and high pressure.

Specification of Autoclave Glass Machine:

Cauldron body steel shell effective inside diameter: 3000mm

Processed glass extreme breadth: 2500mm

Processed glass greatest length: 6000mm

The processed glass is most light-sized: 350*350

Working pressure: 0--1.25Mpa

Safety valve opening pressure: 1.3Mpa

Operating temperature: 0-135 °C

Design temperature: 150 °C

Actuating medium: Compressed air (in cauldron temperature 5 °C-7 °C)

In cauldron gauge: 1200mm (basis customer request)

Heat preservation way: In keeps warm,

thickness 50-100mm

Opens the door the way: Electrically operated, opens the door left (toward opens left facing cauldron gate)

Total output: 114KW (energy conservation)

dimensions: 7500*3600*3250mm (L*W*H)

Material of Autoclave Glass Machine:

Autoclave gate and body: 16MnR

Heater: Gold-plated midwave infrared preheater pipe

Full-pressure system: Rubber seal packing collar

Thermal insulation material: Salty cotton and kapok and aluminum silicate

Chiller: Seamless steel pipe finned tube entire volumetric heat melt galvanization
