Regarding the mash system (brewhouse), four vessels (mash tank+lauter tank+kettle+whirlpool tank). The complete mash system inlcudes: Brewhouse, heat exchanger, steam boiler/electric heating elements, pumps, motors, operation platform, pipes and accessory and so on. There are SUS304, SUS316/316 and red copper for your choose.
we have two vessels (mash/lauter tank+kettle/whirlpool tank) and three vessels (mash tank+lauter tank+kettle/whirlpool tank) for your choose.
Output range: from 200L to 5000L per brew.
Design: individual dedicated tank process (mash mixer, lauter, boil kettle, whirlpool, hot/cold water tanks) integrated process piping including platform for combining the necessary vessels integrated pump system milled false bottoms separated CRP for individual tanks and to prevent cross product interference
Sanitary design: polished internal tank surface and welds easy and fast cleaning.
User friendly: master brew interface control system, semi-automatic (pump on/off, temperature control, flow regulation) all systems can be engineered with client input for defined process
Micro brewery equipment is the best seller system, the turnkey system includes Milling system, mash system, heating system, fermenting system, cooling system and controlling system and so on, also we can provide you with filtering system and bottles/kegs filling line according to your requirements.

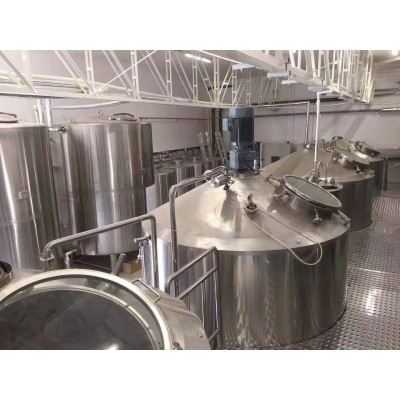

*Tonsen Brewhouse System
Brewhouse is various in combinations of vessels, of course to achieve the same four steps mashing, lautering, boiling, whirlpool, by special brewing intentions of brewer including wort output, wort gravity, sparging water, brews in certain time, brewing method etc. Tonsen accepts special design for these variations.
Heating Methods: Electric, Steam, Gas fired

Vessels: 2/3/4/5 Vessels;

Regular: MLT+BKW+HLT

Plate Heat Exchanger

Motor: CE/UL Listed

Pumps: CE/UL Listed

Oxygenator

Working Platform

Brewhouse Pipelines and Valves

Optional:

Grist Case

Wort Buffer Tank

Hop Back

Platform with Sink

Flowmeter

*Tonsen Fermenting system:

according to our standard configuration, the complete beer brewing equipment with 6pcs two batches beer fermentation tanks or with 12 pcs one batch fermentation (based on 12 days fermenting period).
The inside and external of tanks are adopt international standards 304 stainless steel material, mirror polished up to ≤0.8um≤0.6um≤0.2um polishing quality standards, fully meet the PLC automatic cleaning and disinfection of the controlled system requirements. Cone 60° resist compression design, with sample valve, CIP arm, racking arm, pressure gauge, solenoid valve, safety valves and so on.
