Welcome to

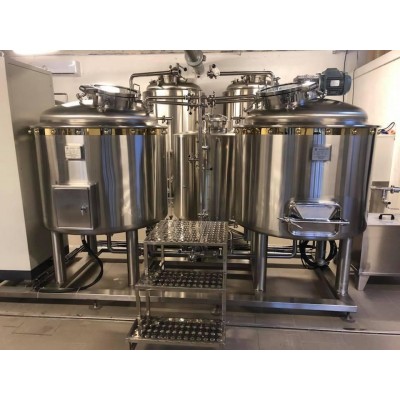

A typical two-vessel:
Mash and Lauter
Brew Kettle & Whirlpool
Hot liquor tank
Plate heat exchanger
Platform
Pump
Wort aeration
Wort thermometer
Wort Grant
Titanium stick
Yeast dosing tank
Hops filter
Two-vessel brewhouse Combination Mash Lauter Tuns are the first combination vessel in these smaller brewhouses line ups. This vessel should be sized to favor the Lauter operation, and have the mechanics for mixing mash and graining out.
Next inline is the combination of the Kettle and Whirlpool tanks. This combination vessel is designed and sized for being primarily a kettle but is equipped with a tangential fitting for whirlpooling.
Tonsen Brewhouse System
Heating Methods: Electric, Steam, Gas fired
Vessels: 2/3/4/5 Vessels;
Regular: MLT+BKW+HLT
Plate Heat Exchanger
Motor: CE/UL Listed
Pumps: CE/UL Listed
Oxygenator
Working Platform
Brewhouse Pipelines and Valves
Optional:
Grist Case
Wort Buffer Tank
Hop Back
Platform with Sink
Flowmeter
| Brewery Equipment Request | Components |
| Milling system | Malt Miller |
| Brewhouse System | Mash/Lauter/Boiler/Whirlpool Tank/Hot water tank |
| Wort pump | |
| Heat exchanger | |
| Steam boiler (optional) | |
| Platform and Other accessories are matched | |
| Fermenting system | Fermenter tank and BBT (Bright beer tank) Grinded SS304 with 2 layers |
| Cooling system | Chiller and Glycol water tank (Ice water tank, cold water tank) |
| CIP System | Sterilization tank & Alkali liquor tank & CIP pump |
| Control system | PID or PLC (SIEMENS program) as option |
| Packing system | Bottling/canning/kegging machine |
| Trade Term | EXW, FOB, CRF, CIF |
| Payment Term | T/T in advance |
| Output/Brew | 5HL | 8HL | 10HL | 15HL | 20HL | 25HL | 30HL | 35HL | 50HL |
| Brew/Week | 2~6 | ||||||||
| Output/Week | 10~30HL | 16~48HL | 20~60HL | 30~90HL | 40~120HL | 150~300HL | 180~360HL | 210~420HL | 240~360HL |
| Area Request | ＜45㎡ | ＜60㎡ | ＜70㎡ | ＜90㎡ | ＜120㎡ | ＜140㎡ | ＜150㎡ | ＜180㎡ | ＜150㎡ |
| Brew master | 1 | 1 | 1-2 | 1-2 | 2-3 | 2-3 | 3-5 | 3-5 | 3-5 |
| Material | Interior Shell: SUS304; TH=3mm; Exterior Shell:SUS304; TH=2mm / red copper | ||||||||
| Heating | Electric/Steam/Direct fire for optional | ||||||||
| Voltage | 3 phase/380(220, 415,440...)v/50 (60)Hz | ||||||||
