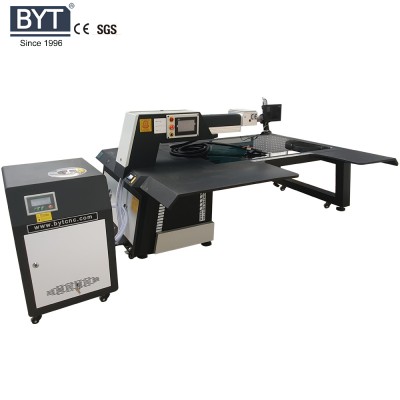

Product Description
Model | BHJ-300W | BHJ400W |
Laser source | Nd3+: YAG Rod | Nd3+: YAG Rod |
Rated power | 300W | 400W |
Application material | Stainless, Steel | Steel and Aluminum(high purity) |
Max. single-pulse energy | 90J | 120J |
Total power | 7 KW | 12 KW |
Power supply | 220V, 40A 50HZ compatible | 380V, 60A 50HZ compatible |
Laser wave length | 1064nm | 1064nm |
Facula diameter | φ 0.10-3.0mm | φ 0.10-3.0mm |
Molten pool diameter | O.3mm-3mm | 0.3mm-3mm |
Pulse width | 0.2ms-20ms | 0.2ms- 20ms |
Pulse frequency | 1- 50Hz | 1-50Hz |
Controlling system | Single- chip microprocessor | Single-chip microprocessor |
Operation interface | English | English |
Observing system | CCD | CCD |
Locating system | Infrared and locating rod | Infrared and locating rod |
Working table scale | 1000* 7 50mm | 1000* 750mm |
3-axis itinerary | X= 700mm,Y = 150mm,Z = 200mm | X= 700mm,Y = 150mm,Z= 200mm |
Machine size(mm) | P1: 1260*710*1150 | P1: 1160*610*1150 |
Gross Weight | 280kgs | 350Kg |
 | The adjustment of parameter setting is very easy; up to 10 sets of parameters can be memorized for your option.
|
With high peak laser power supply, the machine can easily weld aluminum in perfect performance (400W models for |  |
 | Red light fast positioning, CCD display, (microscope optional). |
Four supporting bars below, make the L aser cavity more stable. |  |
Laser head can be rotated in 360 degree, easy positioning for special item and tiny letters. | |
Ultrafine positioning rod makes the welding of tiny corner easier without changing spot position |  |
Marble table not easy to be scratched. |
Our Company
Shandong Yuantong Century Intelligent Technology Co.,Ltd build in 1996 and owns registered trademark BYT ,mainly produce signage and woodworking equipment, There is CNC router, vacuum forming machine, channel letter bending machine,laser machine and Metal etching machine ect.
