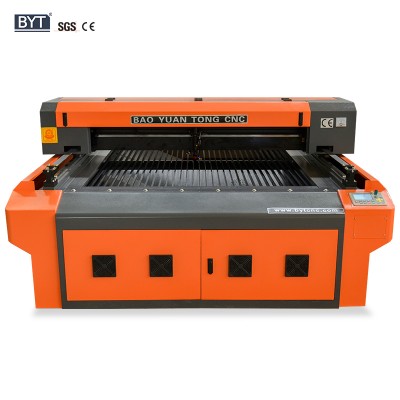

BJG-1325 Advertising Laser cutting machine for Acrylic ,MDF and PVC cutter and engraver tube CNC laser Cutting Engraving machine for non-metal Glass Wood Cloth Acrylic Stone
Product description
Model | BJG-1325 | BJG-1530 |
Laser Power | 100W(Optional) | 100W(Optional) |
Laser Tube | Sealed CO2 Glass Laser Tube | Sealed CO2 Glass Laser Tube |
Working Area(mm) | 1300*2500 | 1500*3000 |
Cooling Type | Water Cooling | Water Cooling |
Cutting Speed | 0-300(mm/s) | 0-300(mm/s) |
Engraving Speed | 0-1000(mm/s) | 0-1000(mm/s) |
Position Precision | ±0.01mm | ±0.01mm |
Resolution | ≤4000dpi | ≤4000dpi |
Work Temperature | 18-30℃ | 18-30℃ |
Work Humidity | 5%-95% (No-cemented Water) | 5%-95% (No-cemented Water) |
Driver Motor | Step Motor | Step Motor |
Support Format | BMP.PLT.DST.DXF.AI | BMP.PLT.DST.DXF.AI |
Max Cutting Thickness | Arcylic 20mm | Arcylic 20mm |
Power | 3KW | 3KW |
Working Voltage | 220v/50-60Hz/1P | 220v/50-60Hz/1P |
Net Weight(kgs) | 850 | 1000 |
Overall Size(mm)(L*W*H) | 3400*2070*1250 | 3900*2270*1250 |
Customer Feedback
Our Services
Company Information
FAQ
Q1: I knew nothing about the laser machine ,how I choose the suitable machine for my work?
A1: Very easy to choose , only need to tell use the which kind material you want to cut or engraving ,the max thickness need to cut ;and the max size you want to finish (Length and Width).
Q2: When I got the machine ,but I don’t know how to use it ,What should I do?
A2: Together with the machine ,there is detail english install and operate manual &&video, meantime before you get this machine ,our service engineer will contact with you in advance, all questions you can contact with them in anytime.
Q3: If some problems happen to this machine , what should I do ?
A3:1) Contact with our engineer ,they will analyze the cause solve it
2) If spare parts damage in our warranty time ,we provide free parts to you .(Whole machine warrant time 2 years ,except the laser tube power ≤ 60W warranty time 6 months ,laser tube power ≥80W warranty time 10 months) .
If spare parts damaged beyond the warranty period ,we will provide it to in cost price .
Q4: When I get this machine ,for this machine working ,any other parts I need to prepare?
A4: With this machine ,we have provide all working parts , you don’t need to prepare ,only install is ok .
