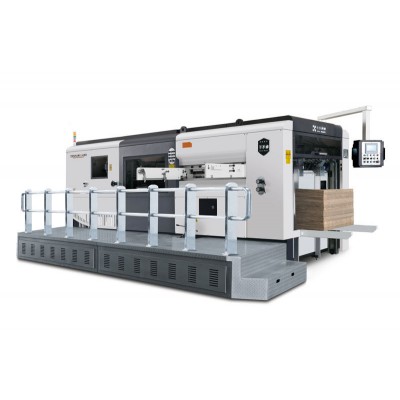

Semi-stripping system can clean three sides and middle part automatically with high efficiency.
Stripping plate adopts central positioning system, automatic clamping.
Upper Stipping plate adopts electric control lifting device.
Technical specifications
| Model | MWB 1300Q | MWB1450Q | MWB1620Q | MWB 1850Q |
| Maximum paper size | 1330×980mm | 1480×1080mm | 1650×1210mm | 1880×1420mm |
| Minimum paper size | 550×480mm | 550×480mm | 550×650mm | 650×550mm |
| Maximum cutting size | 1300×960mm | 1450×1050mm | 1620×1190mm | 1850×1400mm |
| Maximum cutting pressure | 250×104N | 300×104N | 300×104N | 300×104N |
| Stock range | Corrugated board≤9mm | Corrugated board≤9mm | Corrugated board≤9mm | Corrugated board≤9mm |
| Cutting precision | ±0.5mm | ±0.5mm | ±0.5mm | ±0.5mm |
| Maximum mechanical speed | 4200s/h | 4000s/h | 3600s/h | 3500s/h |
| Pressure adjusting range | ±1mm | ±1mm | ±1mm | ±1mm |
| Minimum Gripper margin | Gripper≥8mm | Gripper≥10mm | Gripper≥10mm | Gripper≥10mm |
| Inner chase size | 1330×990mm | 1480×1080mm | 1646×1220mm | 1890×1430mm |
| Paper delivery height | 1100mn | 1118mn | 1140mn | 1500mm |
| Total power | 17kw | 21kw | 21kw | 24kw |
| Machine Dimension(include the work platform、prefeeder) | 7440×4640×2425mm | 7750×4720×2440mm | 8150×4920×2566mm | 5295×3060×2600mm |
| Machine Dimension (exclude the work platform、prefeeder、die change frame) | 5540×2490×2425mm | 5840×2630×2440mm | 6220×2900×25660mm | 7200×5100×2600mm |
| Gripper/needle number/each | 10/16 | 11/18 | 12/20 | 14 |
| Tatal weight | ≈17t | ≈19t | ≈24t | ≈24t |
