Product Information:

Specification: 1/2′ ′ -10′ ′ (Dn15-250)

Structure: Floating Ball Valve

Type: Floating Ball Valve

Function: on-off Valve

Temperature: Normal Temperature

Standard: ISO9001 & CE

Application: Industrial Usage, Water Industrial Usage, Household

Connection Ends: Flange ( RF, RTJ)

Delivery Time: 15~20 Days

Working Pressure: 150lb-600lb

Type of Port: Full Port/Reduce Port

MOQ: 10PCS

Transport Package: Standard Plywood Case

Origin: Wenzhou, China

HS Code: 8481804090

Product Features:

1. Investment casting body

2. Anti-blow-out stem, anti-static device

3. Adjustable stem packing, metal to metal seat (option)

4. RPTFE seals and seats

5. Temperature range: -60 to 450 °F

6. Fire safe designed (option)

7. 100% leakage tested at 100 psi air under water

8. Lever Operated

9. ISO-5211 mounting pad for actuator (option)

Features:

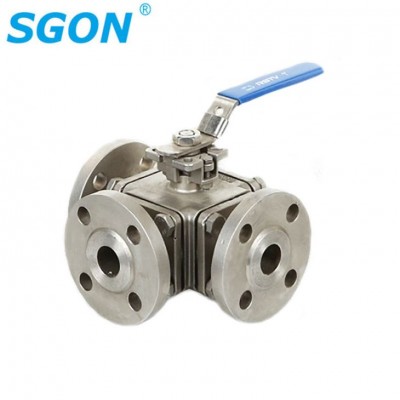

The three-way/four-way ball valve is provided with reliable sealing and smooth flow channel so as to ensure accuracy of opening and closing through small fluid pressure loss and stable flow channel. According to the forms of flow channel, the valve can be classified into "Y" pattern three-way ball valve, "L" pattern three-way ball valve, "T" pattern three-way ball valve and "LL" pattern four-way ball valve.

"Y" pattern Three-way Ball Valve(q42 Type)

The form of flow channel is "Y" pattern, which can effectively realize switching from service condition 1 to service condition 2. It is mainly used for switching "Y" pattern pipeline flow direction.

"L" Pattern Three-way Ball Valve(q44 Floating Type,Q49 Trunnion Type)

The "L" pattern three-way ball valve is used for switching pipeline medium flow direction. It can connect two flow channels that are vertical with each other. The ordinary "L" pattern floating three-way ball valve may not be suitable for some service conditions, which shall be paid special attention to when users select it.

Shipment:

we will deliver goods within 30-60 days after we received your order from Ningbo port or Shanghai Port. But the delivery time is according to the size of your order.

FAQ:

Q: What’s your port of shipping?

A: Shanghai or Ningbo port.

Q: What's your factory's monthly output?

A: Our factory’s monthly output is about 10000-30000 PCS. But usually we will arrange production according to your order to ensure that we can deliver the goods on time.

Q: What’s the terms of payment can I chose?

A: T/T. But if you want to use other payment methods, you can contact us for details.
