Product Information:

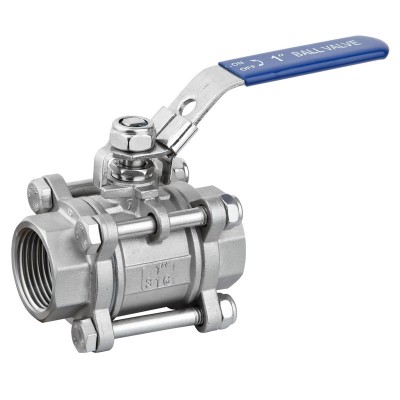

Name: Three Piece Socket Weld Ball Valve

Size Range: 1/4"--- 4"(DN8---DN100)

Material: SS201/SS304/SS316/WCB

Pressure Rating: 1000WOG

Threaded Standard: BSPT/BSPP/NPT/DIN259/DIN2999

Power: Manual

Structure: Ball

Suitable medium: Water, oil, air

Delivery Time: 7---60 Days

Origin: Zhejiang, China

Product Standard:

Product design standard: ASME B16.34

Wall thickness standard: ASME B16.34 GB12224

Inspection standard: API 598 EN12266

Main Parts And Materials:

Body: SS201/SS304/SS316/WCB

Bonnet: SS201/SS304/SS316/WCB

Ball: SS201/SS304/SS316/WCB

Bolt: SS201/SS304/SS316/WCB

Stem: SS201/SS304/SS316

Gland: SS201/SS304/SS316

Nut: SS201/SS304/SS316

Sealing: PTFE/PPL/RPTFE

The specifications can be designed and satisfied for customers' special requirements.

Product Description:

Three piece socket weld ball valve is a valve that uses a ball with a circular channel as the opening and closing parts, and the ball realizes the opening and closing actions with the rolling of the valve stem. Its opening and closing parts are a ball with holes, which are tampered around the axis perpendicular to the channel, so as to reach the policy of opening and closing the channel.

Structural Characteristics:

1. Low fluid resistance.

2. Simple layout, small volume, light weight, easy to maintain.

3. Good sealing.

4. Not limited by the installation direction, the flow direction of media can be arbitrary.

5. No vibration and low noise.

FAQ:

1. Do you guarantee the quality of your products?

A: Of course, our company's products will be pressure tested before shipment. You can rest assured that our products have passed CE certification.

2. Could you give the sample to me for free before ordering?

A: We usually can give out sample in 3 days, but the shipment charge usually paid by your side, the fee of it will be rebound when we have formal order.

3. Can your company make it to order?

A: Yes, we can make it according to customer's drawing or sample, because we have our own professional factory.

4. Where are the main markets for your products?

A: We hope to make business with companies from all over the world. And for now, our valves and fittings have been exported to especially in North America, South America, South Asia, Europe and Middle East.
