Unique Design---curved greenhouse A series
![New Curved Design Greenhouse (A7 Series)]()

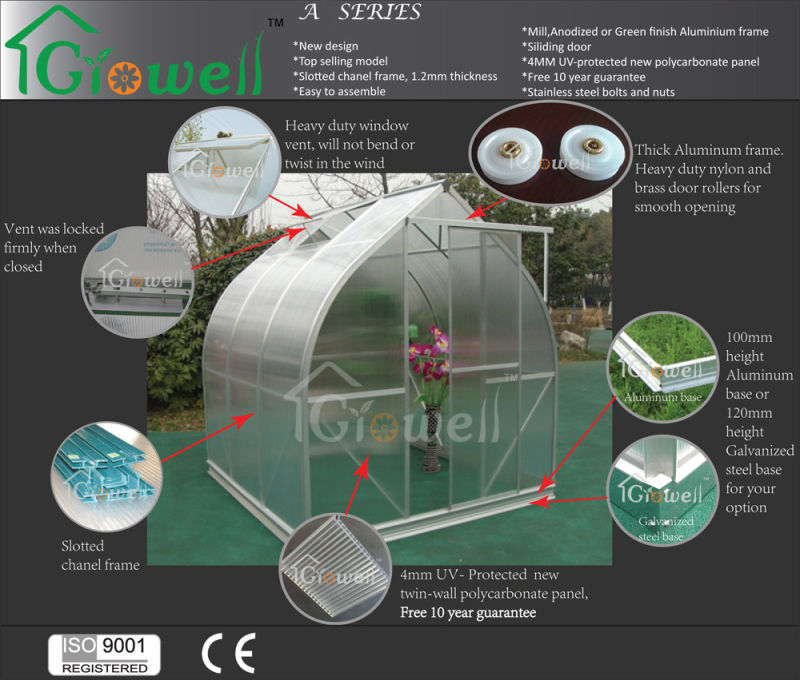

Features:1. Panel: 4mm twin-wall UV-Protected new polycarbonate panels c/w free 10year guarantee
2. Frame: 1.2mm thickness strong aluminium frame with gutter system
3. Base: 1.5mm thickness aluminium base, 1.0mm thickness galvanised steel base
4. Door & window: Sliding door and adjustable window for excellent ventilation
5. All Stainless steel bolt & nut and all useful accessories included
6. Strong and passed weight test, accredited with ISO9001: 2008 quality management system and CE certificate
7. Good packing(one carton for frame and one carton for PC, color label in each carton)
8. With detailed assembly instruction manual, easily DIY step by stepYour options:1. Color can be Mill silver/Anodized silver/Green;
2.120mm height Galvanized steel base or 100mm height aluminium base both for your choice;

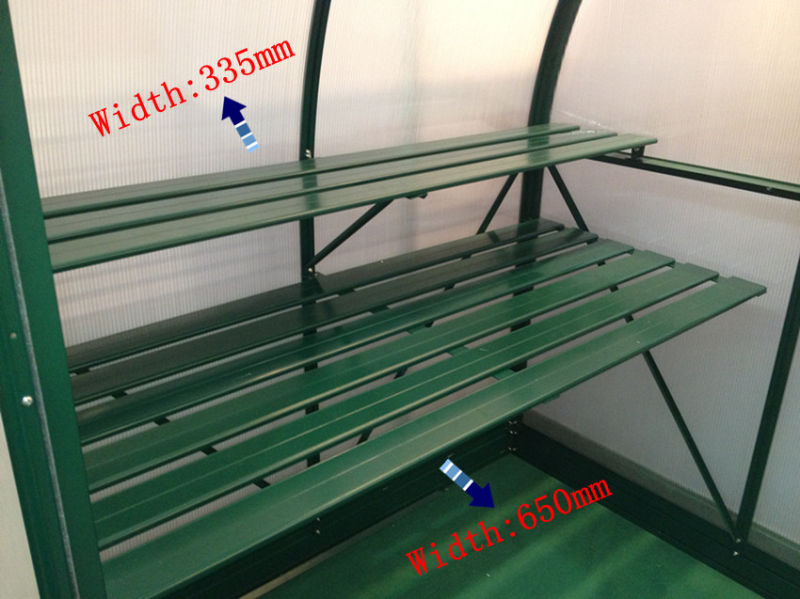

3. All accessories for your choice (like auto vent opener, solar thermostatic ventilator, staging, louver, etc)
![New Curved Design Greenhouse (A7 Series)]()
| MODEL | A705 | A707 | A710 | A712 | A714 |
| SIZE(W*L*H) All height exclude base | 2063*1481*2183MM
6' 9" *4' 10" *7' 2" | 2063*2197*2183MM
6' 9" *7' 2" *7' 2" | 2063*2913*2183MM
6' 9" *9' 7" *7' 2" | 2063*3629*2183MM
6' 9" *11' 11" *7' 2" | 2063*4345*2183MM
6' 9" *14' 3" *7' 2" |
| PACKING SIZE(L*W*H) | HOUSE | 1830*725*80MM
2140*250*95MM
2420*130*100MM | 1830*725*95MM
2310*250*95MM
2420*160*100MM | 1830*725*105MM
3020*250*95MM
2420*190*100MM | 1830*725*120MM
3740*250*95MM
2420*220*100MM | 1830*725*130MM
4460*250*95MM
2420*250*100MM |
| ALU. BASE | 2150*130*80MM | 2286*130*80MM | 3002*130*80MM | 3718*130*80MM | 4434*130*80MM |
| Galvanized Steel Base | 2210*150*80MM | 2346*150*80MM | 3062*150*80MM | 3778*150*80MM | 2302*150*110MM |
| VOLUME(M3/SET) | House with Alu base | 0.187
(0.106+0.051+0.008+0.022) | 0.215
(0.126+0.055+0.01+0.024) | 0.253
(0.139+0.072+0.011+0.031) | 0.301
(0.159+0.089+0.014+0.039) | 0.339
(0.172+0.106+0.015+0.046) |
| House with G. steel base | 0.192
(0.106+0.051+0.008+0.027) | 0.219
(0.126+0.055+0.01+0.028) | 0.259
(0.139+0.072+0.011+0.037) | 0.307
(0.159+0.089+0.014+0.045) | 0.331
(0.172+0.106+0.015+0.038) |
| NET WEIGHT(KG/PC) | HOUSE | 32.30(20.14+12.16) | 38.57(23.53+15.04) | 45.55(27.63+17.92) | 53.21(32.49+20.72) | 59.46(35.86+23.60) |
| ALU. BASE | 5.83 | 6.93 | 8.03 | 9.28 | 10.38 |
| Galvanized Steel Base | 11.64 | 13.78 | 15.92 | 18.39 | 20.71 |
| CONTAINER LOAD(HOUSE AND BASE) | 20' | 145 SET | 128 SET | 108 SET | 91 SET | 82 SET |
| 40' | 290 SET | 256 SET | 216 SET | 182 SET | 165 SET |
| 40' HQ | 338 SET | 296 SET | 250 SET | 211 SET | 192 SET |
Our principle make flowers grow well. So we use all virgin material twin polycarbonate. Free of 10year guarantee. It has the characteristics of high light transmission, good effect of heat insulation, energy save, safe and convenient structure high impact strength, also it can simply installation. For engineered aluminium frame.
Our principle is to use the strong profiles to make the greenhouse more durable. So we use 1.0mm/1.2mm/1.3mm thickness strong aluminium frame with gutter system, color can be Mill silver/Anodized silver/Green. It depends on your choiceFor quality. We have passed the factory audit from SGS, accredited with ISO9001: 2008 quality management system and all our products come with CE certificate. Most of our products are exported to European and America. We are passionate about greenhouse!
If you have any requirement, Welcome always!
