Low Cost Plastic Film Agricultural Greenhouse Parts
Brief Introduction

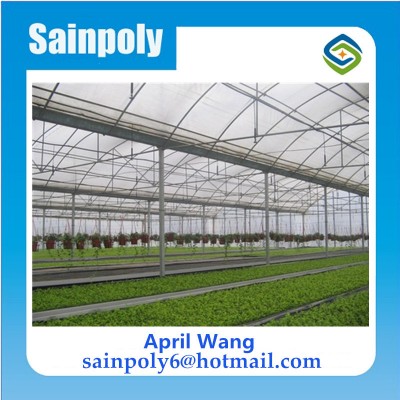

Plastic-film Multi-Span Greenhouse, cost-saving and convenient to use, is a kind of equipment for cultivation or breeding that is constructed simply. The greenhouse has great space-efficient performance and strong ventilation ability, also preventing the heat loss and the intrusion of cold air. It can be used as the seed-breeding or planting of dwarf fruit tree and for aquaculture and livestock breeding as well as for exhibition, ecological restaurant and teaching or scientific research, etc.
Structure and Configuration
Skeleton: galvanized steel materials;
Type of Construction: Arched Roof
Covering Materials:
PE film, heat-preserving and durable, is available on the roof and side.
Hollow Glass, Float Glass or PC sheet can be also used on the side.
Supporting Systems:
Outside Shading System,
Inside Shading System,
Cooling System,
Heating System,
Ventilation System,
Seedbed System,
Electric Control System, etc.
Technical Index:
Single-Span Width: 6m / 8m / 10m
Single-Bay Width: 4m
Height of Greenhouse: 4.8m (be requested)
Height of the Gutter: 3.0m (be requested)
NOTE:The height of the gutter can be defined by the requirements of our clients.
Characteristics
(1)Inner large room, convenient operation, easy to construct and accessible to remove.
(2)Accessories rust-resisting, strong ability to resist the snow and wind as the whole.
(3)High transmission rate, great heat-retaining property and hermetic ability.
The Specification of Plastic Film |
| UV 2792 AD |
Mechanical Capacity | Test Method | Index |
Tensile Breaking Strength(Mpa) | ASTM D882 | |
Longitudinal | 33 |
Lateral | 35 |
Breaking Elongation(%) | ASTM D882 | |
Longitudinal | 600 |
Lateral | 650 |
Reissfestigkeit(g/um) | ASTM D1922 | 15 |
Impact Strength(g) | ASTM D1709 | 1000 |
Optical Properties | | |
Transmittance | Internal Method | ≥91 |
Advantage
1.Full range and customized of product
2.Ideal price-quality ratio
3.True quality guarantee
Company Introduction
Weifang Sainpoly Agricultural Equipemnt Co,.Ltd is engaged in the greenhouse designing, engineering, production and servicing.
(1)Our companies also providing many another greenhouse products like screen pinion, screen rack,rack tube connetor,power drive,driving clamp, spring clips,screen wire,weight,outside shading screen, etc.
(2)At present, it's basic on good quality that I have competitive price and scientific design or according your requirement to design.
(3)We have an After-services Department, any question, please feel free contact us.
