China Manufacturer Best Quality PC-sheet GreenhouseProduct Description1. Brief Introduction
Poly-carbonate (PC) /plastic. Greenhouse has the modern outline, stable structure and beautiful style, especially many roofs on every great span. It has the great performance to keep warm and transmit the sunlight. A lot of gutters can be equipped so as to drain the water on the roof. And the PC Greenhouse can resist the wind strongly. So that the PC Multi-span Greenhouse is suitable for the areas of heavy rains and strong winds. Moreover, the PC sheet is not very heavy and has great tensile strength.
2. Structure and Configuration
The skeleton is made by rectangular steel tubes that are cold-rolled, two-sided hot-galvanizing.
The greenhouse can be collocated with some necessary systems, such as, inside & outside shading systems, side & roof ventilation system, heating & cooling systems,etc.
The covering material is the PC sheet, 8mm or 10mm thickness.
The contacting materials of PC Sheet are the appropriate aluminum alloys and the adhesive tapes are used to tighten the contact area.
3. Service Life
More than 20 years for the main body.
4. Characteristics
• great and stable lighting performance, great anti-UV ability.
• lightweight PC sheet, convenient and environmental protecting.
• strong weathering resistance and thermal adaptability.
• strong fire resistance, sound insulation and anti-condensation.
• low thermal conductivity and strong heat insulation.
Feature
Good heat retention, high intensity, easy assembly, energy saving, anti dew, strong impact resistance and long service life, etc.
Structural Characteristics
Span: 9.6M, 10.8M,12M
Section: 4M, 8M
Ventilation: Single or double roof vents, controlled by the rack and pinion system
Shading, heating, cooling, irrigation, hydroponics, and climate control systems can be installed if requested.
Product Details
1. Structure: Hot galvanized steel squre tubes, Triple-A Roof structure per bay. 15 year warranty ( Including side ventilation system).
2. Covered by twin-wall polycarbonate sheet.10 year warranty. Anti-storm. Anti-hail. Anti-Snow. Best material for warm-keeping.

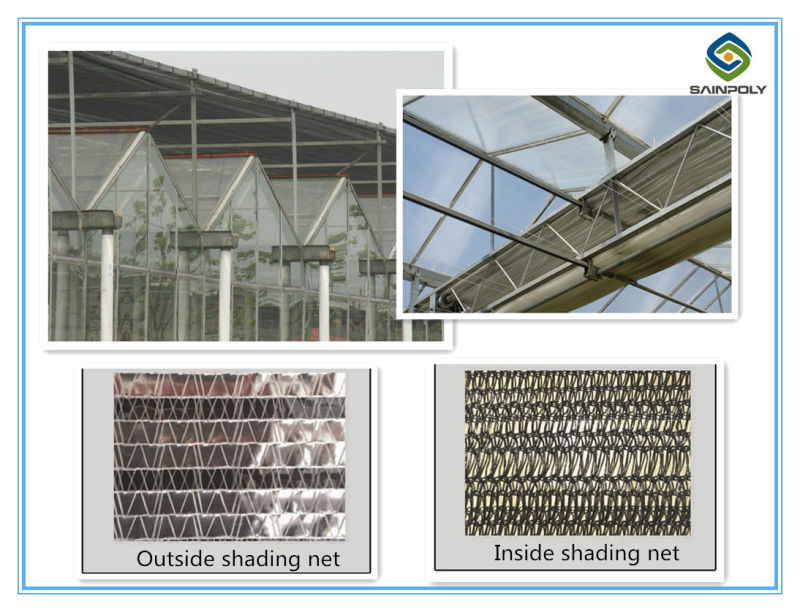

3. Greenhouse Shading System.( Inside & Outside)

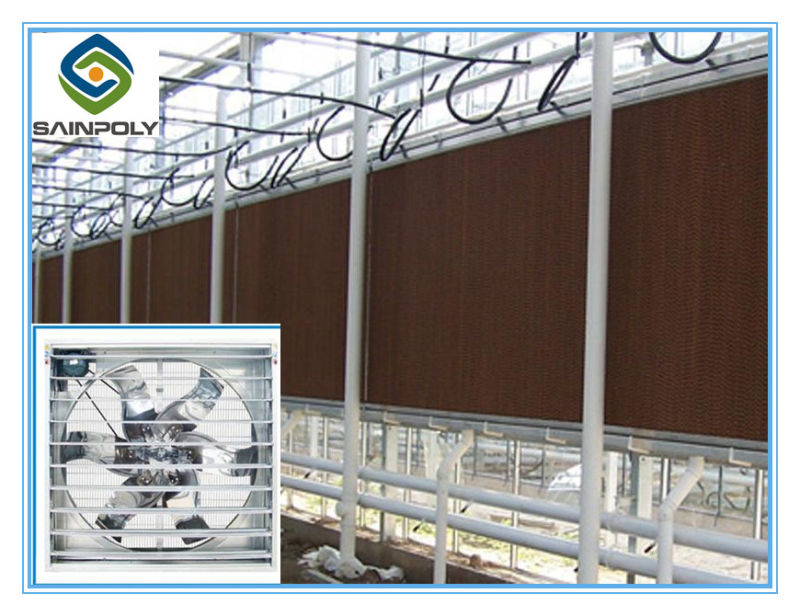

4. Greenhouse Cooling System
Cooling Pad Product Information
H: height W: width D: Depth
h: Corrugation height
α: Corrugated sheet angel A.
β: Corrugated sheet angel B.
| Type 7090 | Type 5090 |
H (mm) | 1500,1800,2000 | 1500,1800,2000 |
W(mm) | 900,600,300 | 900,600 |
D (mm) | 100,150,200,300 | 100,150,200,300 |
h (mm) | 7 | 5 |
α(°) | 45 | 45 |
β(°) | 45 | 45 |

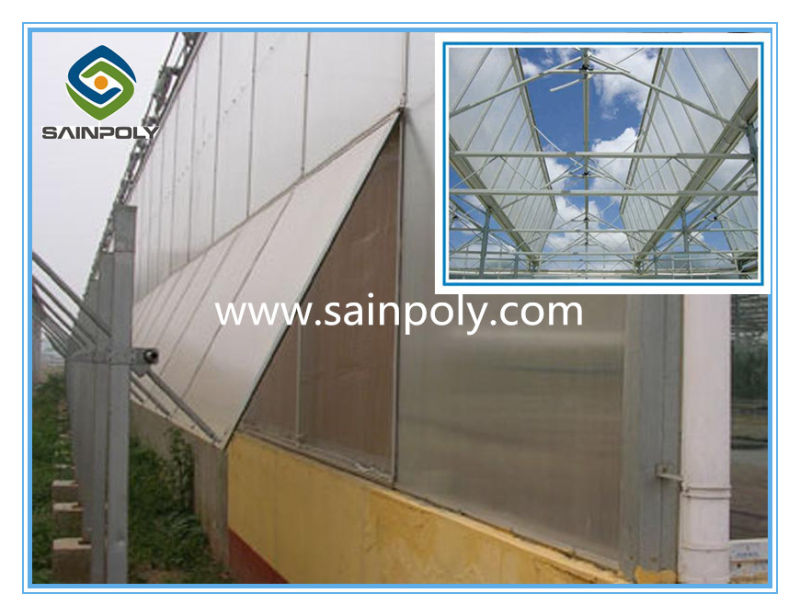

5. Greenhouse Ventilation System ( Roof Window & Side window)

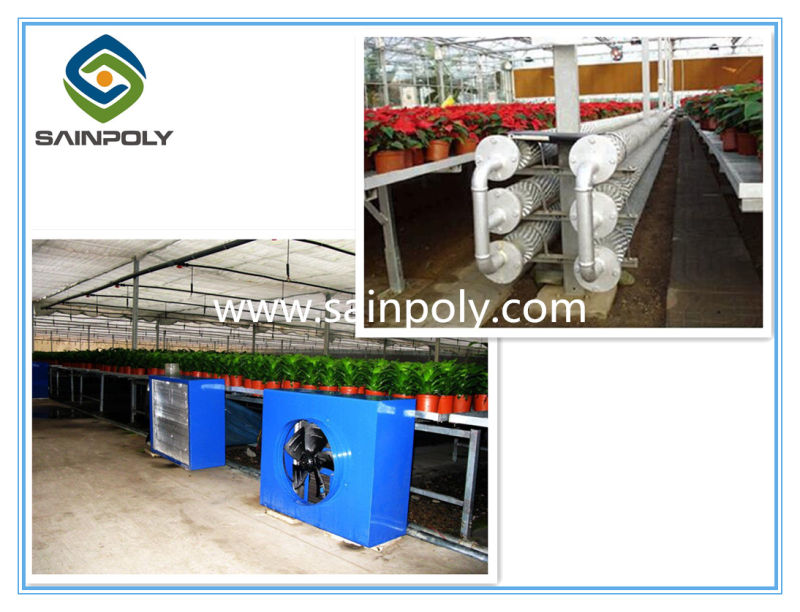

6. Greenhouse Heating System Company Information
Weifang Sainpoly Agricultural Equipemnt Co,.ltd is engaged in the greenhouse designing, engineering,production and servicing .
(1) Our companies also providing many another greenhouse products like screen pinion, screen rack,rack tube connetor,power drive,driving clamp, spring clips,screen wire,weight,outside shading screen, etc.
(2) At present, it's basic on good quality that I have competitive price and scientific design or according your requirement to design.
(3) We have an After-services Department, any question, please feel free contact us.
(4) We have been insisting on the strict quality standards and complying with International Quality System Authentication of ISO 9001: 2008 in the past of more than a decade from the construction of our factory.
