Machine Description

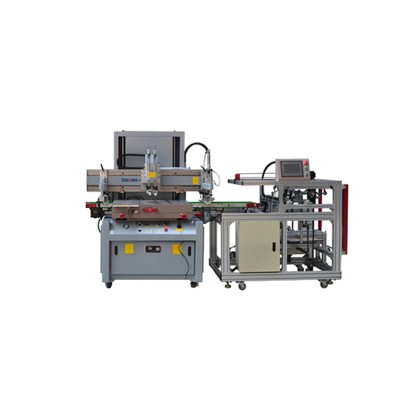

auto aluminum sheet printing machine is suitable for Flat surface printing on aluminum sheet.
SPECIFICATIONS FOR auto aluminum sheet printing machine | |||
Max Product size | 35*35CM | Min product size | 20*30CM |
Screen Frame Size Max | 60*100CM(OD) | Substrate Thickness (Printable) | 20mm |
Max Printing SPeed | 1200pc/hour | Compressed Air | 5-6MPA |
Power Supply | 3phase 380V | Power Consumption | 3KW |
Dimensions (L*W*H) | 2600*950*1580MM | Weight | 700KG |
1.Auto feeding and take off will save the worker, make the printing speed more fast
2.Squeegee carriage on Hard Chrome Plated solid steel shaft with linear bearing motion.
3. Adjustable screen frame holder
4. Variable printing stroke length
5. Single/Double stroke selection
6. Parallel screen frame movement(Convenient for spot UV varnish and low viscosity inks to avoid ink spillage all over the screen)
7. Peel off mechanism (To achieve fine reproduction of halftone dots and avoid smudging, bleeding and smearing)
8.Adjustable squeegee angle from 0 to 30º
9.Aluminium extruded squeegee holder & coater for even pressure
10.Bed movement for registration x, y, & Rotary ±10 mm
11.Emergency Rod / Stop for safety of operator
12.Castor wheels for easy mobility
13.Printing operation by foot switch or automatic cycle, with dwell timer 0-10 sec.
Machine Details
Vacuum Table
Precision Guide Rail | Squeegee / flood barclamping | High Quality AC Geared Motor | High Quality Electrical Components |
Imported timing belt | Compact Powerful Vacuum Blower | VFD (Variable Frequency Drive) | Sturdy, light weight honey comb vacuum bed |
Printing Sample
Packing & Delivery
Packaging | |
Size | 126 (L) * 100 (W) * 163 (D)CM 120 (L) * 100 (W) * 140 (D)CM |
Weight | 7000KG |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. |
1.Standard Model can be Delievry 7- 15 Days after Payment
2. Customized Model can be Delievry 20- 40 Days after Payment
By Courier By Sea
By Train By Air
Loading Port:
Shanghai Airport
Ningbo or Shanghai Sea port
FAQ
1.Are you factory or trading company ?
A:Our factory has over 17 years history, so you can trust us absolutely .We have a number of qualified technicians in the field of design and production saler,with which we can prove overall service for you at any time.
2.Can we use our own design or logo ,and do some changes to your machine ??
A:Of course ,you can,we are open and we would be very appreciate to listen to your advices.
3.What are your main production?
A:screen printing ,curing printing, coating machine , IR drying tunnel, high precision oven, large format vertical exposing machine,high precision stretching machine, auxiliary equipment.
