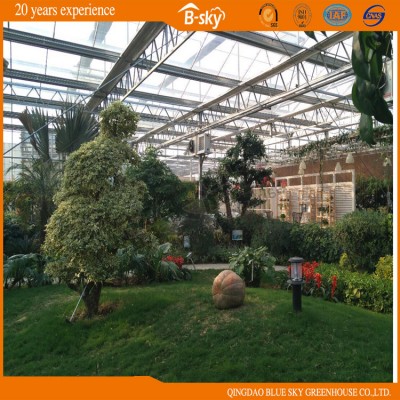

High Quality Venlo Structure Glass Greenhouse Description:

Venlo structure is a popular one at present. This architecture uses horizontal girder as main bearer, forming a stable structure with columns. There is consolidation between horizontal girder and column, and hinge is used to connect column and foundation.

In Venlo greenhouse, foundation is made of reinforced concrete and the side wall is made of brick or reinforced concrete plate. the steel frame always use hot dip galvanized light steel. Roof beam adopts horizontal girder structure and using herringbone connection. The horizontal girder bear 2 or more roofs, which is made of aluminum alloy. This material is used as roof structure material and also glass inlay material. Other beams using gutter style to minimize the section. Daylighting material of the roof and side wall using 4 mm thick float glass.

Glass greenhouse usually used for planting high-grade flowers, fruits and vegetables, scientific research, ecological restaurant, flower market, tourism exhibition, special cultivation etc..

Features of glass greenhouse:
Light transmittance is high, no water vapor, good ageing resistance, anti condensation and heating fast.
The light transmittance of single float glass is more than 90%, double hollow one is more than 80%, which is stable and will not decline over time.

Glass greenhouse always has long service life and large operation space. In where has low light but great geothermal energy or waste heat, it could be a good choice. But it need large investment and high level of management.

Performance index of our Greenhouse:

Δ Wind load: 0.50KN/m2

Δ Snow load: 0.50KN/m2

Δ Maximum drain volume: 140 mm/h

Δ Dead load: 0.50KN/m2

Δ Suspended load: 0.15KN/m2

Δ Electrical parameters: 220V 50HZ PH1/380V 50HZ PH3,  can be equipped with frequency converter to meet customer demand.

Δ Steel structure: hot-dip galvanizing carbon steel, design working life is 10 years.

The basic parameters are as follows (unit: m):
P.S.:Ridge height can be customized, generally, there is 3.0m,3.5m, 4.0m,4.5m and 6.0m etc..

Greenhouse Major Equipments:

Greenhouse Cover System

Venlo type glass greenhouse uses 8mm or 10mm hollow glass profiles or single glass pro-

files as its cover material. The glass has more than 90% light transmittance rate. It is in

strong strength resistance and strong anti-age performance. It also has a long service

time. Besides, it looks very beautiful from the appearance of the whole greenhouse.

Venlo Glass Greenhouse Ventilation:

1. Natural ventilation;

2.Motor ventilation.

Greenhouse Heating:

1. Hot water heating;

2. Hot wind heating;

3. Electrical heating.

Cooling system: whcih is made by fan and wet pad.

1)Wet Pad

It consists wet pad, aluminum alloy frame and wet pad water system.

2) Fan

Size:1380*1380 or 1250*1250

Irrigation and fertilization system;

Automatic control system and so on.
