1. Extruder fish feed machine Description:
Fish food processing line is suitable to make dry fish food pellet (catfish, aquarium, Tilapia, Freshwater fish and tropical fish etc.)
1). All fish food equipments are made of stainless steel.
2). The fish food whole line fully continuous and automatic.
3). Datongprovide basic fish food receip according to your require.
4). The final fish food shapes and sizes can be various by changing the mould.
5). Supply different size mould free.
6). Packing machine could be supplied to work with the line (depend on your require).
2. Raw materials for fish food pellet:
Most fish food pellet inculding animal protein and plant protein, Plant protein adopts corn flour,rice flour,wheat flour,soybean flour,peanut cake powder…..Animal peotein adopt fish meal, shrimp meal,crab meal, sleeve-fish meal and so on….you can add other ingredient according to the local fish live require.

1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double screw extruder produce all kinds of pet food by changing the mold.
4) Running in a high automatization and intellectualization,no pollution

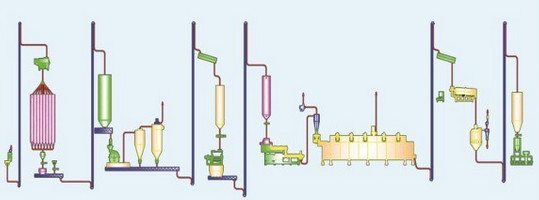

5) Mxier-extruder-dryer-flavoring machinery-cooling machinery-packing machinery

Machine Parts

Name: Double screw

Brand: Datong

Original: China

Nitriding treatment(120 Hours)
Depth of Nitrided Layer: 0.5-0.8 mm
Hardness of Nitrided Layer: 950-1100Hv (HRC56°-65°)
Chrome Plating
Thickness of Hard Chrome Plating Layer: 0.05-0.10mm

Wear sleeve and screw sleeve are made of high wear-resistant alloy steel, to reduce abrasion and prolong service life.

Main Features

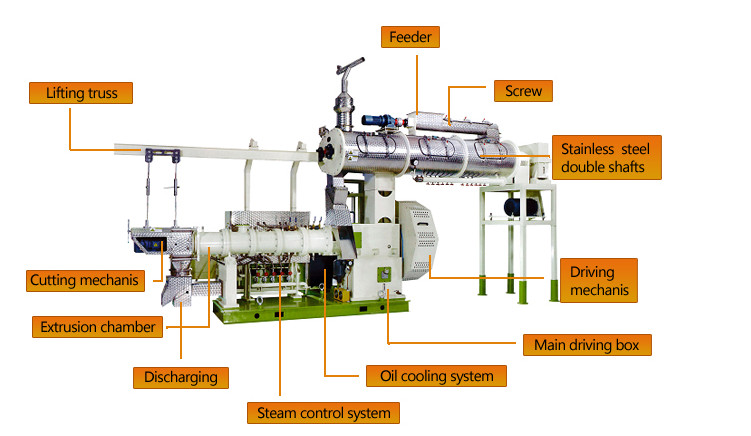

Name: SLG95 steam fish food extruder
Brand: DATONG

1. Extruder is mainly composed of feeding, pre-conditioning, extrusion and cutting systems.
2. Main engine adopts inverter to adjust speed of screw according to changing of formula.
3. adopt building block system (BBS) to be adjustable for different technology.
4. Double-shaft pre-conditioner makes excellent result of mixing and conditioning, increasing capacity of extruder 10-15%.
5. Diameter of feed φ1.2-φ12 can satisfy feed production for dog, cat, tortoise, bird, sea fish, shrimp and pet fish etc.

Machine Parts

Belt width 1300mm & above
Drying length 10m~140m Applied temperature(ºC) 30~240
Drying time 5~30 mins   Number of fans 3~ 16 pcs
Drying capacity(TPH) 0.4~10.0 ton  OVerall dimension 8000*2200*3400 ~ 22500*3900*4500mm

Weight 5~20 ton  Structure Multiple stainless steel  belt
Feeding speed 0.05-0.5 m/s    Installed power 13.5~126Kw
Steam consumption (t/h) 0.4~4.0
Application scope Food industry,Feedstuff,Agricultural Products, Application Grain,Pet Food,Fish Feed,Puffed Snacks,Soybean Chunk,Pasta,Artificial rice,Vegetarian Meat,Etc

Main Features:

Name: Flavouring system
1. Fish-oil or other nutritious additives are sprayed on the surface of the pellets to improve palatability and conversion rate of feed.
2. Adopting drum pattern and oil atomization spraying system together with continuous and automatic operation.
3. Widely used for spraying fat, vitamin, substrate and medication onto the surface of extrusion feed.
