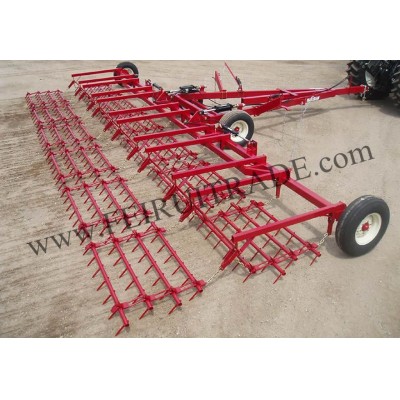

Spike tooth Harrow
· Design allows harrow to easily be changed from transport to working position.
· Great for leveling gardens, food plots and playing fields.
· Rear teeth adjustment lever is convenient to adjust.
· Forty-two (42) spike teeth for positive soil penetration and leveling.
· Staggered tooth pattern for maximum field coverage.
· Flexible design will not plug, yet levels and prepares most fields in a single or multiple passes.
· Adjustable spike tooth angle allows harrow to work as a smoothing tool or an aggressive tillage tool.
· Forged replaceable high carbon spike teeth.
· High-carbon tubular tooth bar provides strength with outstanding tooth support.
· Operating width is 5-feet for maximum coverage.
| SPIKE TOOTH HARROW SPECIFICATIONS |
| HP Required (Minimum): | 16 hp or 250cc |
| Operating Width (ft/m) | 5/(1.5m) |
| Construction | Welded Steel |
| Length w/Tongue transort (in/mm) | 83/(2108mm) |
| Length w/Tongue working position (in/mm) | 95/(2413mm) |
| Width Frame (over-all) (in/mm) | 62/(1575mm) |
| Tire Size | 4" x 12" Pneumatic |
| Hitch Type | Clevis Type |
| No.# of tooth bars | 5 |
| No.# of spike teeth | 42 |
| Tooth Pattern | Staggered |
| Spike Material | Forged High-carbon Steel |
| Tongue weight in transport (lb./kg) | 58 (26kg) |
| Shipping Weight (lb./kg) | 199 / (90.2kg) |
