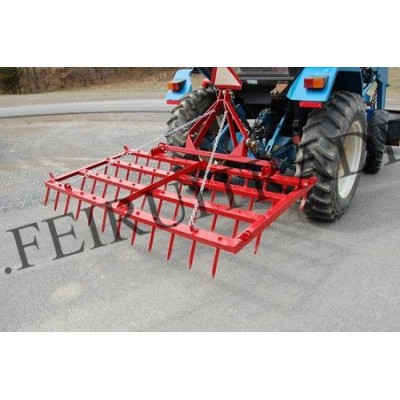

Spike tooth Harrow
· Design allows harrow to easily be changed from transport to working position.
· Great for leveling gardens, food plots and playing fields.
· Rear teeth adjustment lever is convenient to adjust.
· Forty-two (42) spike teeth for positive soil penetration and leveling.
· Staggered tooth pattern for maximum field coverage.
· Flexible design will not plug, yet levels and prepares most fields in a single or multiple passes.
· Adjustable spike tooth angle allows harrow to work as a smoothing tool or an aggressive tillage tool.
· Forged replaceable high carbon spike teeth.
· High-carbon tubular tooth bar provides strength with outstanding tooth support.
· Operating width is 5-feet for maximum coverage.
SPIKE TOOTH HARROW SPECIFICATIONS |
HP Required (Minimum): | 16 hp or 250cc |
Operating Width (ft/m) | 5/(1.5m) |
Construction | Welded Steel |
Length w/Tongue transort (in/mm) | 83/(2108mm) |
Length w/Tongue working position (in/mm) | 95/(2413mm) |
Width Frame (over-all) (in/mm) | 62/(1575mm) |
Tire Size | 4" x 12" Pneumatic |
Hitch Type | Clevis Type |
No.# of tooth bars | 5 |
No.# of spike teeth | 42 |
Tooth Pattern | Staggered |
Spike Material | Forged High-carbon Steel |
Tongue weight in transport (lb./kg) | 58 (26kg) |
Shipping Weight (lb./kg) | 199 / (90.2kg) |
