Specifications
Wrapped v-belts:
1. Heavy power
2. High-speed
3. Long service life
4., small deformation
1. Heat-resistance,
2. Wear proof,
3, ageing- resistance,
4. Fatigue resistance
5. Low elongation
6. Excellent trough ability
7. Good wet strength
8. Splendid water resistance
Features:
1). Excellent durability and flexibility in using.
2). Specially designed cords enhance durability and length stability.
3). Excellent in resistance against heat, oil and wear.
4). Can be used in small pulley.
5). Show stable in high speed rotation.
6). Resistant to heat, oil, fatigue, aging and friction due to excellent and special frame
7). Large power, high speed, long service life, small distortion, less space occupying

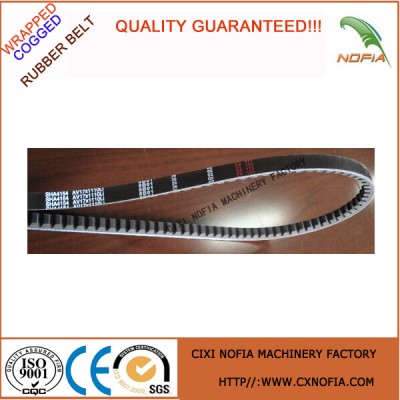

![Cogged V-Belt, Banded V-Belt, V-Belt]()
OUR CERTIFICATE:
![Cogged V-Belt, Banded V-Belt, V-Belt]()
|
Type |
Top width |
Pitch width |
Height |
length conversion |
length range(inch) |
length range(mm) |
|
HI |
25.4 |
23.6 |
12.7 |
li=la-80 |
39-79 |
1000-2000 |
|
HJ |
31.8 |
29.6 |
15.1 |
li=la-95 |
55-118 |
1400-3000 |
|
HK |
38.1 |
35.5 |
17.5 |
li=la-110 |
63-118 |
1600-3000 |
|
HL |
44.5 |
41.4 |
19.8 |
li=la-124 |
79-157 |
2000-4000 |
|
HM |
50.8 |
47.3 |
22.2 |
li=la-139 |
79-197 |
2000-5000 |
Physical Characters Of Common V-belt(wrapped) GB/T1171-2006
|
Type |
Tensile-StrengthKN ≥ |
Reference Force Extension%≤ |
Adhesive Strength Of The Cord (KN/m)≥ |
Adhesive Strength Between Cloth And Top Rubber(KN/m)≥ |
|
Z |
2 |
7 |
13 |
- |
|
A |
3 |
17 |
|
B |
5 |
21 |
2 |
|
C |
9 |
31 |
|
D |
15 |
31 |
|
E |
20 |
31 |
