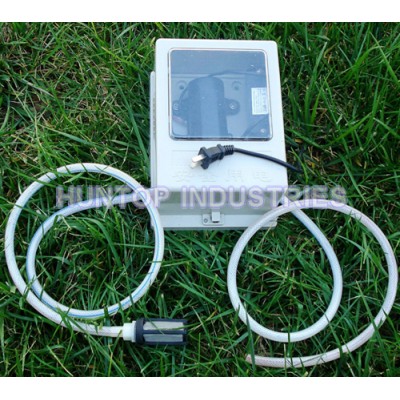

Mini Electric Fertilizer Pump
Item: HT6585
Desp.: mini electric fertilizer pump, fertilizer injector pump
Rated Voltage: 220V
Power Convert: AC100~220V→DC12V 2A
Pump Power: 12V 25W
Max Pressure: 0.45MPa
Water Yield: MAX:200L/H, 0.1MPa=150L/H, 0.2MPa=100L/H
Inlet/Outlet: 8/12mm pressure resistance tube for 1m.
Application: Fertilization and dosing in water-saving irrigation.
| Name | Voltage | Power Convert | Pump Power | Max Pressure |
| Mini Electric Fertilizer Pump | 220V | AC100~220V→DC12V 2A | 12V 25W | 4.5Bar |
Instruction:
1.The arrow on the pump is outlet, connected to irrigation system.
2.Inlet with filter put into fertiliztion tank.
3.The pump is self-priming pump, and suction lift is 2m.
Noting:
1.Fertilizer pump have a certain Water-proofing, but could not soak in the water.
2.Pressure adjusting screw could not adjust randomly, it may increase reflux pressure to leak water.
3.Make no impurities, or it will block the pump.
