Automatic hose reel irrigation sprinkler system Item No.: HT7036(JP90)
Desp.: Hose reel sprinkler irrigation system,
hose reel irrigation machinery with rain gun sprinklerJP series (JP65/75/90/100) single sprinkler reel sprinkling machine is able to walk by itself by taking advantage of the kinetie energy of pressure water. It mainly consists of chassis, frame, roll, PE pipe, automatic speed regulation device, hydro-turbine driven system, gear box, sprinkler wagon and guiding device,etc. Working principle: the pressure water will drive the rotation of the hydro-turbine and the reel plate through multi-step speed regulation mechanism to realize the even reversing of PE pipes and sprinkler wagon and at the same time, enter to the sprinkler through PE pipes to carry out normal sprinkling. With simple structure, high automation and adaptability, this product is easy to be operated and may relize multi-step speed regulation.It is the ideal choice for water saving sprinkling.JP65/75/90/100 widely used in farm land sprinkling, vegetables and fruits sprinkling, graze sprinkling, sugarcane sprinkling, dust removing in electricity plants, dust removing in docks,etc.| Desp. | JP90-300 |
| Outlet Dimension(l*b*h)mm | 3780*(1600-1900)*3210 |
| PE pipe outlet Dia(mm) | 90 |
| PE pipe length(M) | 300 |
| Sprinkler Nozzle Car Track(mm) | 1800-2500 |
| Single Sprinkler Type | Working Pressure(Mpa) | 0.52-1 |
| Nozzle Dia(mm) | 18-30 |
| Flux(m3/h) | 23-76 |
| Sprinkling Width(m) | 61-90 |
| Rainfall(mm/h) | 6-10 |
| Nozzle Spraying Distance(m) | 36_53 |
| Multi-Sprinklers Type | Working Pressure(Mpa) | 0.45-0.8 |
| Nozzle Qty* Dia(mm) | 13*(4.4-7.5) |
| Flux(m3/h) | 11.4-38.3 |
| Sprinkling Width(m) | 31-34 |
| Nozzle Spraying Distance(m) | 3.0-4.5 |
| Note: Outlet Dimension do not include the adjustable distance for sprinkler cart and Chassis wheelbase. |

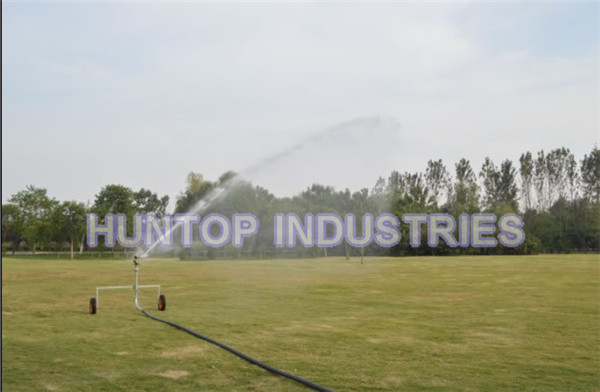

![Automatic Hose Reel Irrigation Sprinkler System (HT7036)]()
