Hose Reel Traveling Rain Gun Sprinkler Irrigation System (HT7039)--Ningbo Ecowis Plastic & Electric Co., Ltd.

Purchase Qty.: (Pieces)	1-499,999 500,000+
FOB Unit Price:	US $10,000 US $5,000,000,000

Purchase Qty. (Pieces)	FOB Unit Price
1-499,999	US $10,000
500,000+	US $5,000,000,000

Basic Info

Model NO.: HT7039
Type: Irrigation System
Drainage & Irrigation Mode: Sprinkler Irrigation Equipment
Material: Metal
Certification: SGS, ISO9001:2008, CE
Application Field: Agriculture, Livestock, Aquaculture, Fisheries, Forestry
Origin: China

Usage: Irrigation
Power Source: Electricity
Pump Type: Turbine Pump
Ground Drainage and Irrigation Machinery Type: Pumping Irrigation
Condition: New
Trademark: ECOWIS

Product Description

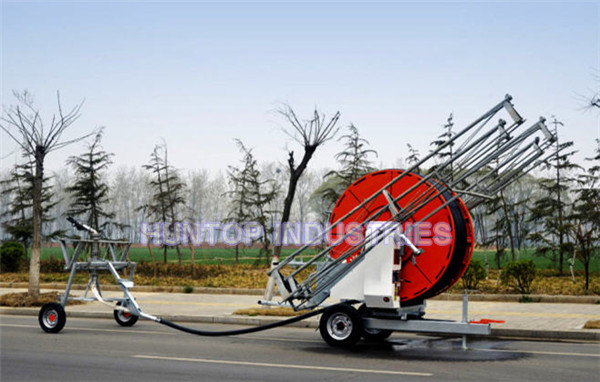

hose reel traveling rain gun sprinkler irrigation system
Item No.: HT7039
Desp.: Hose reel sprinkler irrigation system,hose reel irrigation machinery with rain gun sprinkler

JP series multi-sprinkler truss type sprinkling machine is a novel mobile sprinkler units, mainly by the reel, rack, PE water pipes, automatic speed control device, water turbine-driven device, gearbox, sprinkler car, guiding device and truss composition.
Widely used in the plains, hilly arcas for cotton, wheat, rice, tobacco, peanuts, sugarcane, hemp, fruits, vegetables and tea, foragecrop spraying operations, can also be used urban green space, power plants, docks dust remove, etc. It is the ideal water-saving irrigation equipment.
Truss type sprinkling machine may not only work in big fields but also replace the single sprinkler to carry out sprinkling for economic crops. Its main features are: low pressure, water-saving, energy-saving, high efficiency, high spray ability and low susceptibility to environmental influency, such as wind, etc.
26 m truss big-scale sprinkling machine can take care of area(width) of 34m, equipped with 3 BPZ semi-circle reflection sprinklers, 8PZ full circle reflection sprinklers and ZY1 sprinklers or 2 semi-circle reflection sprinklers. At the same time, each sprinkler is free to choose one nozzle of 7 according to the crops to be sprinkled.
12 m truss light sprinkling machine may take care of area(width) of 20 m.

Model	Size	Outlet dia of PE pipe(mm)	Length of PE Pipe(m)	Integrated uniformity coefficient of sprinkling water distribution ICU(%)	Speed difference between layers (Vu)	Rainfall(mm)	Service time(year)	Single sprinkler type				Multi-sprinkler truss type
Model	Size	Outlet dia of PE pipe(mm)	Length of PE Pipe(m)		Speed difference between layers (Vu)	Rainfall(mm)	Service time(year)	Inside pressure(Mpa)	Sprinkler dia(mm)	Flux(m3/h)	Max sprinkling width(m)	Inside pressure(Mpa)	Sprinkler Qty* Dia(mm)	Flux(m3/h)	Width under control(m)
40TX	JP40	40	125	≥85	≤20	5-30	15	0.35-0.7	9-11	4.3-10.6	32-48	0.3-0.5	9*(3.6-6.4)	4.6-19.1	20
50TX	JP50	50	125-165	≥85	≤20	6-40	15	0.4-0.76	11-14	6.7-16.5	34-50	0.3-0.5	9*(3.6-6.4)	4.6-19.1	20
65TX	JP65-75	65/75	200-300	≥85	≤20	8-50	15	0.5-0.85	14-28	13-50	47-74	0.4-0.7	13*(4.4-7.5)	11.4-38.3	34
75TX	JP65-75	65/75	230-320	≥85	≤20	8-50	15	0.5-0.85	14-28	13-50	47-74	0.4-0.7	13*(4.4-7.5)	11.4-38.3	34
85TX	JP75 85 90	75/85/90	230-400	≥85	≤20	8-50	15	0.5-0.85	14-30	13-65	47-90	0.45-0.8	13*(4.4-7.5)	11.4-38.3	34
90TX	JP85 90 100	85/90/100	240-370	≥85	≤20	8-50	15	0.6-1	16-30	16-72	54-90	0.45-0.8	13*(4.4-7.5)	11.4-38.3	34
