Hose reel sprinkler irrigation systemItem No.: HT7031(JP40)
Desp.: Hose reel sprinkler irrigation system
JP series light volume irrigation machine is a new generation of products, which is widely used in crop irrigation and sports, golfcourts, soccer fields, lawns, meadows, parks, gardens and other places spraying, irrigation and dust-proof.
High efficiency,energy saving, reliable, simple water turbine-driven device, the working pressure is low, construction is compact, operation is easy,and irrigated area is large.
To prolong the lifespan of machine, all structure parts are hot-dip galvanized.
JP40/50 widely used in farm land sprinkling, vegetables and fruits sprinkling, graze sprinkling, tea sprinkling, tobacco sprinkling, urban green sprinkling, etc.
| Desp. | JP40-140 |
| Outlet Dimension(l*b*h)mm | 2510*1190*1100 |
| PE tube outlet Dia(mm) | 40 |
| PE tube length(M) | 125 |
| Tyre | 5.00-8/3.50B |
| Sprinkler Nozzle Car Track(mm) | 1070 |
| Single Sprinkler Type | Working Pressure(Mpa) | 0.35-0.70 |
| Nozzle Dia(mm) | 7-10 |
| Sprinkler Working Pressure(Mpa) | 0.25-0.50 |
| Flux(m3/h) | 3.2-8.1 |
| Max Sprinkling Width(M) | 30-40 |
| Spraying Distance(m) | 17.6-23 |
| Multi-Sprinklers Type | Working Pressure(Mpa) | 0.2-0.5 |
| Nozzle Qty* Dia(mm) | 9*(3.6-6.4) |
| Sprinkler Working Pressure(Mpa) | 0.1-0.2 |
| Flux(m3/h) | 5-19 |
| Max Sprinkling Width(M) | 18-26 |
| Spraying Distance(m) | 3-4 |

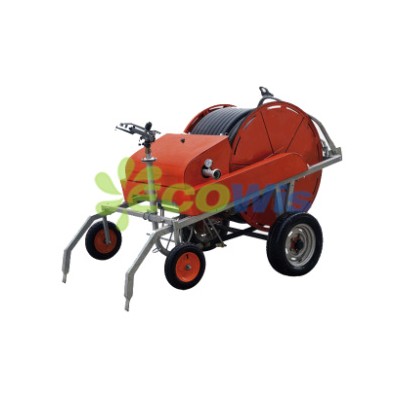

![Hose Reel Sprinkler Irrigation System (HT7031)]()
