Product Description

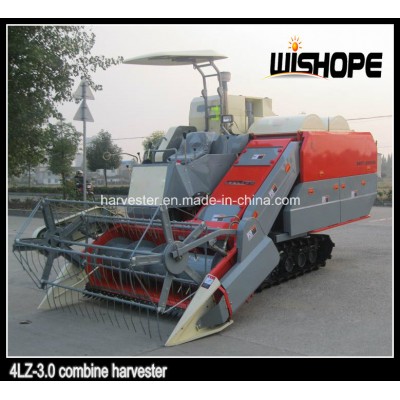

This 4LZ-3.0 machine specially euipped with double thresher, it is suitable for harvesting the soybean, rice and wheat, easy for operation and maintenance.
| Main Parameter(4LZ-3.0) |
| No. | Item | Unit | Specification |
| Weight | (KG) | 2700 |
| Feeding Capacity | kg/s | 3.0 |
| Dimension | Length | (mm) | 4550 |
| Width | (mm) | 2350 |
| Height | (mm) | 2300 |
| Engine | Model | / | 498BT/BZT/L |
| Rated Power | (kw/hp) | 66/88,55/75(Alternative) |
| Engine type | / | Water cooled,4-Cylinder,DI-Injection
Vertical Diesel,Turbocharged Engine |
| Rated Rotating Speed | (r/min) | 2600 |
| Full Tank Capactiy | L | 70 |
| Driving system | Rubber Track | (mm) | 400(450/500)*90*48 |
|
| Gearshift Type | / | Mechanism+HST(3F,3R) |
| Type of Brake | / | By foot |
| Steering | (mm) | Clutch and Brake |
Min grounded
clearance | (mm) | 280 |
| Cutting Header | Pickup Reel | Type | Off-centre |
| Diameter(mm) | 900 |
| Nos | 5 |
| Type of Header Auger | / | Telescopic Screw Conveying |
| Type of Blade | / | V Type/ Left and Right |
| Height Adjustment | / | Hydaulics |
| Cutting Bar Length | (mm) | 2000 |
| Thresher | Threshing Type | / | Spike Tooth Axial flow |
| Main Threshing Cylinder Size | (mm) | 540*1285 |
| Assistant Threshing Cylinder Size | (mm) | 540*650 |
| Reshresher | / | Blade Rotation |
| Concave sieve | / | Grid*2 |
| Vibrating sieve | / | Adjustable Sieve/Meshing
Sieve/Hole Seive(Optional) |
| Fan | Type | Swirl |
| Diameter(mm) | 325 |
| Nos | 2 |
Grain
Storing | Option 1 | Big Grain Tank with Unloading Auger,Capacity(L):1300 |
| Option 2 | Small Tank Manual Operation |
| Harvester Capacity | (hm2/h) | 0.2-0.4 |
Company introduction
WuHan Wishope Machinery Manufacture Co., Ltd is one branch company of Wishope International Group Limited, mainly engaged agricultural machinery production and trading.
Our business contains: Sales of all kinds of farming machines and related spare parts, specially professionally in full feeding crawler combine harvester, rice transplanter, tractor & power tiller, and also spare parts of branded farming machines such as Kubota, YanMar, Daedong, John Deere, Mubota, Xingguang.
Major market covers South East Asia, Middle East, as well as Southern Asia. With rich experience of exporting and excellent before-sales and after-sales service. It brings us very good reputation.
FAQs:
1.Q: What is the warranty of the agricultural machinery?
A: One year guarantee for whole machine (except quick-wear parts), engine model and gear box.
Tips: we usually suggest the buyer order some quick-wear parts separately.
2.Q: Is there any option for your combine?
A: Yes, option parts such as: rubber track, grain tank and type of grain unloading
3.Q: What is your delivery time?
A: Normally, it takes 15-20days to delivery after your deposit receipt or L/C at sight
4.How many harvesters can be loaded in one container?
1)20 Feet Container loads:
For Combine: 5 sets 4LZ-0.5; 8sets 4LZ-0.8; 1set 4LZ-1.2; 1set 4LZ-2.2; 1set 4LZ-3.0; 1set 4LZ-4.0/4.5
2) 40 High Cube Container loads:
For Combine: 11sets 4LZ-0.5; 20sets 4LZ-0.8; 4sets 4LZ-1.2; 4sets 4LZ-2.2, 3sets 4LZ-3.0, 3sets 4LZ-4.0/4.5
5.Q: What is the payment term?
A: Irrevocable L/C at sight or 30% T/T in advance and balance against B/L copy.
6.Q: What is the after-sales service?
A: Every year we send our engineer and after-service people to local market two times, to assist our sales agent training staff, marketing, advertising, maintaining and repairing the machine during the harvesting season.
7.Q: Is OEM or ODM service acceptable?
A: OEM service is no problem, if you have any special requirement about the machine, please kindly inform us, our engineer department will study and offer your suitable solution.
