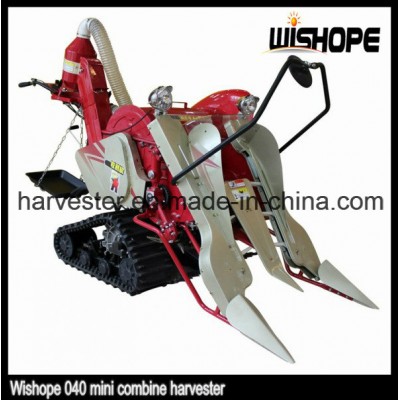

2 Row Mini Rice Combine Harvester
| Self-propelled Mini Combined Harvester 4LZ-0.4 Specifications |
| General | Harvest Rating | ≥0.05 ha/h |
| Engine | Type | Air-cooled Gasoline |
| Fuel Consumption | ≤30 kg/ha | Model | 177F/P |
| Dimensions | 2630×1050×1500mm | Rated Power | 4.5 kW |
| Weight | 330 kg | Rated Speed | 3600 r/min |
| Harvesting Scope | 835 mm | Thresher | Drum | Type | Axial-flow And Teeth |
Minimum Ground Clearance
| 150 mm | Diameter x Length | 360×630mm |
| Feeding Weight | 0.4 kg/s | Teeth Length | 70 mm |
| Shifts | 1, 0, 2, 0, -1 | Teeth Quantity | 28 |
| Walking Speed At Work | 0.4~0.6 m/s | Speed | 1220 r/min |
| Cutter | Type | Reciprocation | Concave Type | Grid |
| Lifting Type | Manual Hydraulic | Discharger | Fan | Type | Centrifugal |
| Cutter | Type | Model VI VI | Diameter | 245 mm |
| Quantity | 2 | Speed | 3300 r/min |
| Screw Conveyor | Type | Screw | Quantity | 1 |
| Speed | 246 r/min | Lifter | Type | Scraper Blades |
| Clearance | 8 mm | Loading Type | Preset Bag |
| Feeder | Rod Angle | 90° | Walking | Crawler Belt | Length x PCs x Width | 75mm×28pcs×250mm |
| Rod Length | 130 mm | Track Gauge | 570 mm |
| Rod Gap | 175 mm | Transmission Gearbox | Step speed change
With reverse gear |
| Chain Speed | 0.8 m/s | Walking Clutch Type | Tensioner |
| Divider | Available | Operating Type | hand-operation and step with device |
| Working Clutch Type | Tensioner | Steering Type | Drum Clutch |
About us:
WuHan Wishope is one branch company of Wishope International Group Limited, mainly engaged agricultural machinery production and trading.
Our business contains: Sales of all kinds of farming machines and related spare parts, specially professionally in full feeding crawler combine harvester, rice transplanter, tractor & power tiller, and also spare parts of brandedd farming machines such as Kubota, YanMar, Daedong, John Deere, Mubota, Xingguang.
Major market covers South East Asia, Middle East, as well as Southern Asia. With rich experience of exporting and excellent before-sales and after-sales service. It brings us very good reputation.
FAQ:
1.Q: What is the warranty of the agricultural machinery?
A: One year guarantee for whole machine (except quick-wear parts), engine model and gear box.
Tips: we usually suggest the buyer order some quick-wear parts separately.
2.Q: Is there any option for your combine?
A: Yes, option parts such as: rubber track, grain tank and type of grain unloading
3.Q: What is your delivery time?
A: Normally, it takes 15-20days to delivery after your deposit receipt or L/C at sight
4.How many harvesters can be loaded in one container?
1)20 Feet Container loads:
For Combine: 5 sets 4LZ-0.4; 8sets 4LZ-0.8; 1set 4LZ-1.2; 1set 4LZ-2.2; 1set 4LZ-3.0; 1set 4LZ-4.0/4.5
2) 40 High Cube Container loads:
For Combine: 11sets 4LZ-0.4; 20sets 4LZ-0.8; 4sets 4LZ-1.2; 4sets 4LZ-2.2, 3sets 4LZ-3.0, 3sets 4LZ-4.0/4.5
5.Q: What is the payment term?
A: Irrevocable L/C at sight or 30% T/T in advance and balance against B/L copy.
6.Q: What is the after-sales service?
A: Every year we send our engineer and after-service people to local market two times, to assist our sales agent training staff, marketing, advertising, maintaining and repairing the machine during the harvesting season.
7.Q: Is OEM or ODM service acceptable?
A: OEM service is no problem, if you have any special requirement about the machine, please kindly inform us, our engineer department will study and offer your suitable solution.
