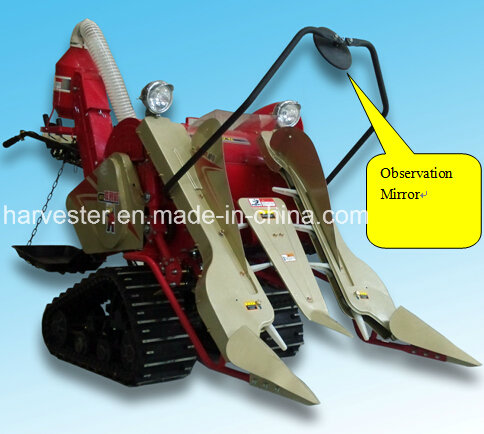

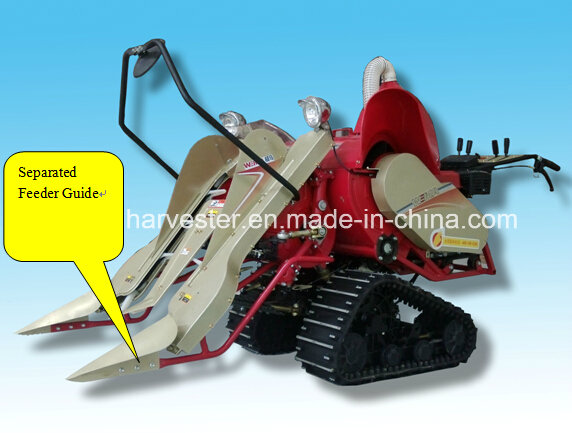

Wishope 4lz-0.4 Mini Combine Harvester--Wuhan Wishope Trade Co., Ltd.

FOB Price:	US $3,000 / Piece
Min. Order:	1 Piece

Min. Order	FOB Price
1 Piece	US $3,000/ Piece

Basic Info

Model NO.: 4lz-0.4
Application: Rice, Wheat
Harvest method: Cutting
Transmission: Hard Shaft
Certification: SGS, ISO9001:2008, CE
Condition: New
Engine Power: 4.5kw
Weight: 330kgs
Transport Package: Standard
Origin: Chongqing

Type: Hand-Type Harvester
Power Source: Diesel
Drive Type: Gear Drive
Portable Harvester Type: Self Propelling
Color: Red
Application Field: Agriculture
Cutting Width: 0.13m
Trademark: WISHOPE
Specification: CE SGS ISO
HS Code: 8433510090

Product Description

Wishope 0.4kg/s Feeding Capacity Mini Combine Harvester

Self-propelled Mini Combined Harvester 4LZ-0.4 Specifications
General	Harvest Rating		≥0.05 ha/h	Engine	Type			Air-cooled Gasoline
	Fuel Consumption		≤30 kg/ha		Model			177F/P
	Dimensions		2630×1050×1500mm		Rated Power			4.5 kW
	Weight		330 kg		Rated Speed			3600 r/min
	Harvesting Scope		835 mm	Thresher	Drum		Type	Axial-flow And Teeth
	Minimum Ground Clearance		150 mm				Diameter x Length	360×630mm
	Feeding Weight		0.4 kg/s				Teeth Length	70 mm
	Shifts		1, 0, 2, 0, -1				Teeth Quantity	28
	Walking Speed At Work		0.4~0.6 m/s				Speed	1220 r/min
Cutter	Type		Reciprocation		Concave Type			Grid
	Lifting Type		Manual Hydraulic	Discharger	Fan	Type		Centrifugal
	Cutter	Type	Model VI VI			Diameter		245 mm
		Quantity	2			Speed		3300 r/min
	Screw Conveyor	Type	Screw			Quantity		1
		Speed	246 r/min		Lifter	Type		Scraper Blades
		Clearance	8 mm		Loading Type			Preset Bag
	Feeder	Rod Angle	90°	Walking	Crawler Belt		Length x PCs x Width	75mm×28pcs×250mm
		Rod Length	130 mm				Track Gauge	570 mm
		Rod Gap	175 mm		Transmission Gearbox			Step speed change With reverse gear
		Chain Speed	0.8 m/s		Walking Clutch Type			Tensioner
	Divider		Available	Operating Type				hand-operation and step with device
Working Clutch Type			Tensioner	Steering Type				Drum Clutch

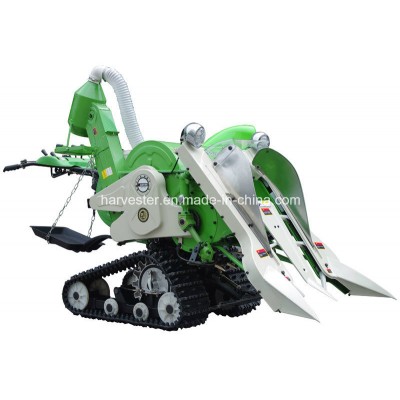

More Photos:

About Us:
WuHan Wishope is one branch company of Wishope International Group Limited, mainly engaged agricultural machinery production and trading.

Our business contains: Sales of all kinds of farming machines and related spare parts, specially professionally in full feeding crawler combine harvester, rice transplanter, tractor & power tiller, and also spare parts of brandedd farming machines such as Kubota, YanMar, Daedong, John Deere, Mubota, Xingguang.

Major market covers South East Asia, Middle East, as well as Southern Asia. With rich experience of exporting and excellent before-sales and after-sales service. It brings us very good reputation.

FAQ:
1.Q: What is the warranty of the agricultural machinery?
  A: One year guarantee for whole machine (except quick-wear parts), engine model and gear box.
Tips: we usually suggest the buyer order some quick-wear parts separately.

2.Q: Is there any option for your combine?
  A: Yes, option parts such as: rubber track, grain tank and type of grain unloading

3.Q: What is your delivery time?
A: Normally, it takes 15-20days to delivery after your deposit receipt or L/C at sight

4.How many harvesters can be loaded in one container?
1)20 Feet Container loads:
For Combine: 5 sets 4LZ-0.4; 8sets 4LZ-0.8; 1set 4LZ-1.2; 1set 4LZ-2.2; 1set 4LZ-3.0; 1set 4LZ-4.0/4.5
2) 40 High Cube Container loads:
For Combine: 11sets 4LZ-0.4; 20sets 4LZ-0.8; 4sets 4LZ-1.2; 4sets 4LZ-2.2, 3sets 4LZ-3.0, 3sets 4LZ-4.0/4.5

5.Q: What is the payment item?
  A: Irrevocable L/C at sight or 30% T/T in advance and balance against B/L copy.

6.Q: What is the after-sales service?
  A: Every year we send our engineer and after-service people to local market two times, to assist our sales agent training staff, marketing, advertising, maintaining and repairing the machine during the harvesting season.

7.Q: Is OEM or ODM service acceptable?
  A: OEM service is no problem, if you have any special requirement about the machine, please kindly inform us, our engineer department will study and offer your suitable solution.
