Big engine power combine harvester for rice and wheat
| Main Parameter |
| No. | Item | Unit | Specfication |
| Weight | | (kg) | 3020 |
| Dimension | Length | | (mm) | 4850 |
| Width | | (mm) | 2650 |
| Height | | (mm) | 2700 |
| Engine | Model | | / | SD4105 |
| Type | | / | Turbocharging |
| Rated Power | | (kw) | 73 |
Rated Rotating
Speed | | (r/min) | 2600 |
| Power Supply | | (V) | 24 |
Moving
Parts | Crawler | Width*Pitch distance*Pitch number | / | 400mm*90mm*51 |
| Center Distance | / | 1118 |
| Average Grounded Pressure | (kPa) | 22.3 |
| Gearshift Type | | / | Static hydraulic stepless
variable speed
(HST) |
| Gears | | / | Three Gears |
| Moving Speed | | (m/s) | Low Speed:0~0.86
Standard:0~1.62
High Speed:0~2.70 |
| Steering Type | | / | Hydraulic Type |
Min Grounded
Clearance | | (mm) | 280 |
Header
Conveyor | Cutting Width | | (mm) | 2080 |
| Lowest Stubble | | (mm) | 70 |
| Header Height | | (mm) | 610 |
| Convey weight | | (mm) | 700 |
| Thresher | Threshing Type | | / | Longitudinal Axial Flow Type |
| Threshing roller | Diameter×Length | (mm) | 650*1878 |
| Rotating Speed | (r/min) | 705 |
Secondary
Processing | | / | Re-seive Spiraltooth |
| Sieving Way | | / | Air Blowing, Vibration Sieve |
Vibration Sieve
Size | | m2 | 1.34 |
Grain
Unloading | Grain Tank
Capacity | | m3 | 1.2 |
| Unloading type | | / | Manual Bagging/Grain Tank |
| Productivity | | hm2/h | 0.2~0.6 |

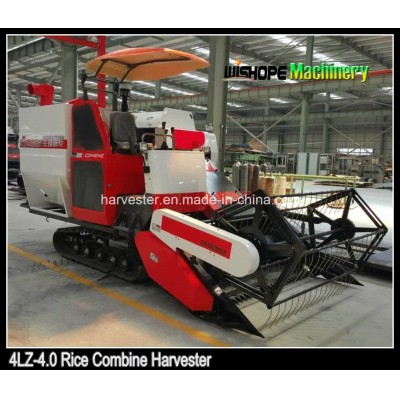

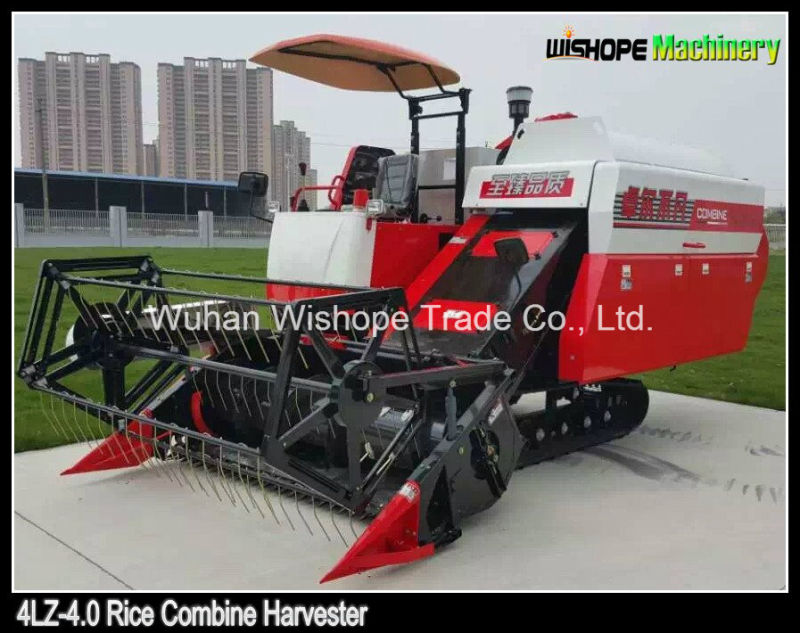

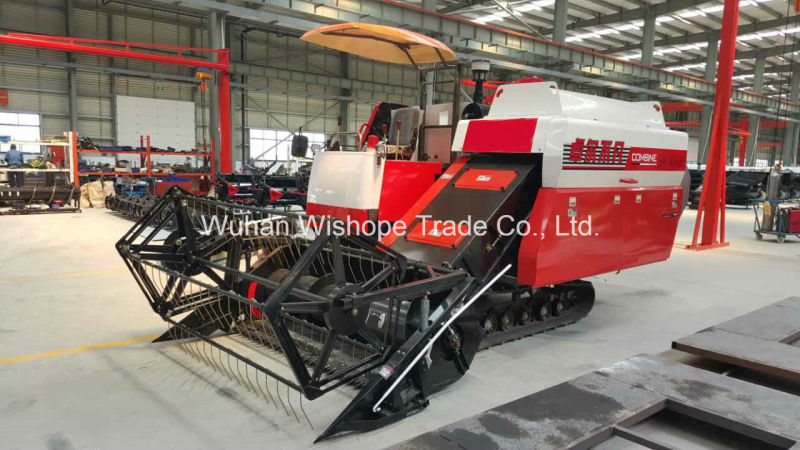

Product details of the 4LZ-4.0 rice combine harvester:
1 Reliable gear box set up with HST so that drivers can drive the harvester a lot easier with flexible turning, running forward and going back.
2. Strong threshing system ensures the purtiy of the grain.
Packaging and Shipping of the harvester:
20" GP:1SET GROSS WEIGHT:3200KGS MEASUREMENT:21CBM
40" HC:3 UNITS GROSS WEIGHT:9600KGS MEASUREMENT:63CBM
![Big Engine Power Combine Harvester for Rice and Wheat]()
![Big Engine Power Combine Harvester for Rice and Wheat]()
![Big Engine Power Combine Harvester for Rice and Wheat]()
![Big Engine Power Combine Harvester for Rice and Wheat]()
About Us:

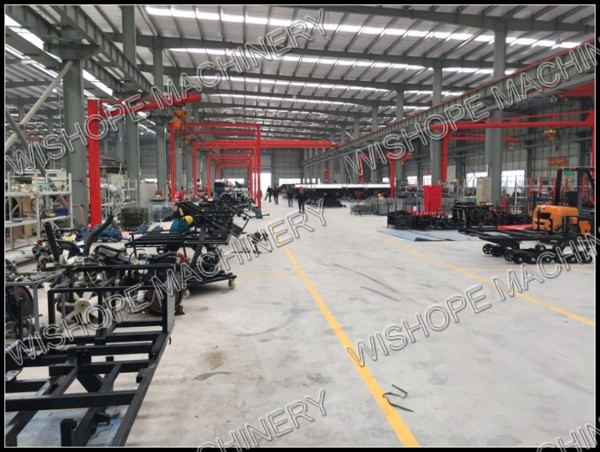

WuHan Wishope is one branch company of Wishope International Group Limited, mainly engaged agricultural machinery production and trading.
Our business contains: Sales of all kinds of farming machines and related spare parts, specially professionally in full feeding crawler combine harvester, rice transplanter, tractor & power tiller, and also spare parts of brandedd farming machines such as Kubota, YanMar, Daedong, John Deere, Mubota, Xingguang.
Major market covers South East Asia, Middle East, as well as Southern Asia. With rich experience of exporting and excellent before-sales and after-sales service. It brings us very good reputation.
FAQ:
1.Q: What is the warranty of the agricultural machinery?
A: One year guarantee for whole machine (except quick-wear parts), engine model and gear box.
Tips: we usually suggest the buyer order some quick-wear parts separately.
2.Q: Is there any option for your combine?
A: Yes, option parts such as: rubber track, grain tank and type of grain unloading
3.Q: What is your delivery time?
A: Normally, it takes 15-20days to delivery after your deposit receipt or L/C at sight
4.How many harvesters can be loaded in one container?
1)20 Feet Container loads:
For Combine: 5 sets 4LZ-0.5; 8sets 4LZ-0.8; 1set 4LZ-1.2; 1set 4LZ-2.2; 1set 4LZ-3.0; 1set 4LZ-4.0/4.5
2) 40 High Cube Container loads:
For Combine: 11sets 4LZ-0.5; 20sets 4LZ-0.8; 4sets 4LZ-1.2; 4sets 4LZ-2.2, 3sets 4LZ-3.0, 3sets 4LZ-4.0/4.5/5.0z
5.Q: What is the payment term?
A: Irrevocable L/C at sight or 30% T/T in advance and balance against B/L copy.
6.Q: What is the after-sales service?
A: Every year we send our engineer and after-service people to local market two times, to assist our sales agent training staff, marketing, advertising, maintaining and repairing the machine during the harvesting season.
7.Q: Is OEM or ODM service acceptable?
A: OEM service is no problem, if you have any special requirement about the machine, please kindly inform us, our engineer department will study and offer your suitable solution.
