9.7Kw engine power 1200mm cutting width mini rice harvester| Main specification(4LZ-0.7) |
| Item | Unit | Specification |
| Model | / | 4LZ-0.7 |
| Structural type | / | Self-propelled full feeding |
| Engine equipped | Model | / | CHANGCAI L14 |
| Structural type | / | Single cylinder, horizontal, water-cooled four-stroke,Direct Injection |
| Rated Power | kw | 9.7 |
| Rated Rotating speed | r/min | 2400 |
| Dimension(L*W*H) | mm | 3300*1500*1500 |
| Weight | kg | 650 |
| Cutter Width | mm | 1200 |
| Feeding Capacity | kg/s | 0.8 |
| Minimum Ground Clearance | mm | 210 |
| Moving Speed | Km/h | 1.4-3.2 |
| Productivity | hm2/h | 0.08-0.133 |
| Fuel Consumption | Kg/hm2 | 10.5-13.5 |
| Cutting Type | / | Reciprocating |
| Reel | Type | / | Eccentric Wheel |
| Diameter | mm | 560 |
| Quantity | pc | 4 |
| Threshing Roller | Quantity | pc | 1 |
| Type | / | axial flow spike tooth |
| Diameter*Length | mm | 330*755 |
| Type of concave | / | Fixed Grid |
| Fan | Type | / | Fixed |
| Diameter | mm | 242 |
| Quantity | pc | 1 |
| Grain Unloading | / | Manually |
| Crawler | Width*pitch*number | mm | 290mm*66mm*43 |
| Grain breakage rate | | / | ≤1.5% |
| Grain impurity rate | / | ≤3% |
Product details of 9.7Kw engine power 1200mm cutting width mini rice harvester
mini rice harvester
![9.7kw Engine Power 1200mm Cutting Width Mini Rice Harvester]()

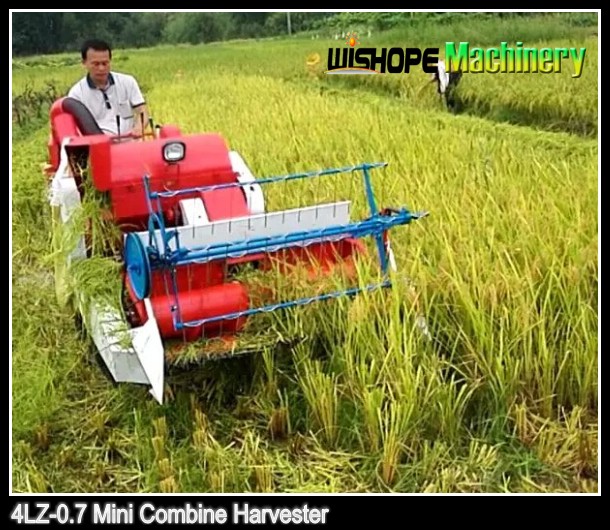

One man only could work well by this mini combine harvester when just sitting on.
Our 9.7Kw engine power 1200mm cutting width mini rice harvester is small, and especially suitable to use in the hilly and mountain areas. Though it has small size, the working productivity is as fast as
550-1500 m2/ hour~!

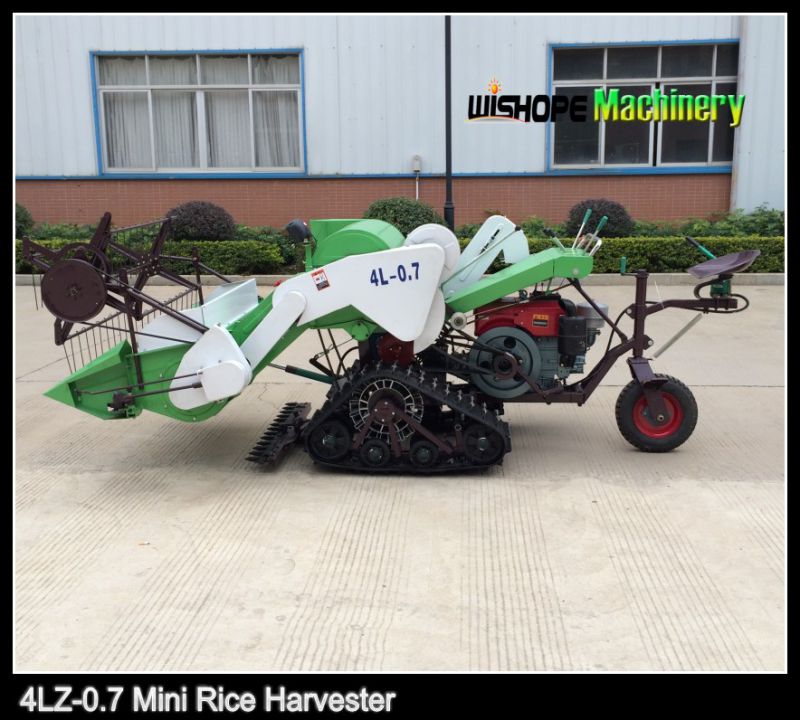

![9.7kw Engine Power 1200mm Cutting Width Mini Rice Harvester]()
FAQ:
1.Q: What is the warranty of the agricultural machinery?
A: One year guarantee for whole machine (except quick-wear parts), engine model and gear box.
Tips: we usually suggest the buyer order some quick-wear parts separately.
2.Q: Is there any option for your combine?
A: Yes, option parts such as: rubber track, grain tank and type of grain unloading
3.Q: What is your delivery time?
A: Normally, it takes 15-20days to delivery after your deposit receipt or L/C at sight
4.How many harvesters can be loaded in one container?
1)20 Feet Container loads:
For Combine: 5 sets 4LZ-0.5; 8sets 4LZ-0.8; 1set 4LZ-1.2; 1set 4LZ-2.2; 1set 4LZ-3.0; 1set 4LZ-4.0/4.5
2) 40 High Cube Container loads:
For Combine: 11sets 4LZ-0.5; 20sets 4LZ-0.8; 4sets 4LZ-1.2; 4sets 4LZ-2.2, 3sets 4LZ-3.0, 3sets 4LZ-4.0/4.5/5.0z
5.Q: What is the payment term?
A: Irrevocable L/C at sight or 30% T/T in advance and balance against B/L copy.
6.Q: What is the after-sales service?
A: Every year we send our engineer and after-service people to local market two times, to assist our sales agent training staff, marketing, advertising, maintaining and repairing the machine during the harvesting season.
7.Q: Is OEM or ODM service acceptable?
A: OEM service is no problem, if you have any special requirement about the machine, please kindly inform us, our engineer department will study and offer your suitable solution.
