Wishope combine harvester with 450*90*56 lengthened rubber track| Main Parameter: |
| No. | Item | Unit | Specification |
| 1 | Model | | / | 4LZ-4.5b |
| 2 | Sturcture Type | | / | Full Feeding Rubber Crawler Self-propelled |
| 4 | Engine | Brand/Model | / | YUCHAI 4-Cylinder,Vertical Engine,Water Cooled, DI-Injection, Turbocharged Engine |
| 5 | Type | / | 4 Stroke |
| 6 | Rated Power | kw | 78 |
| 7 | Rotating Speed | r/min | 2400 |
| 8 | Dimension:Length*Width*Height | mm | 4850*3200*2500 |
| 9 | Weight | | kg | 3100 |
| 10 | Cutting Platofrm Width | | mm | 2060 |
| 11 | Feeding Capacity | | kg/s | 4.5 |
| 12 | Minimum Ground Clearance | | mm | 325 |
| 13 | Theoretical Operation Speed | | km/h | 2 to 4 |
| 14 | Productivity | | hm2/h | 0.25 to 0.65 |
| 15 | Fuel Consumption | | kg/hm2 | ≤28 |
| 16 | Cutter Type | | / | V Type/ Reciprocating |
| 17 | Type of Cutting Header Auger | / | Helical blade+Eccentric telescopic rod |
| 18 | Reel | Type | / | Eccentric Tooth(off center) |
| 19 | Diameter | mm | ∮944 |
| 20 | Quantity | pc | 5 |
| 21 | Threshing Roller | Quantity | pc | 1 |
| 23 | Type | / | Vertical axis flow spike tooth |
| 24 | External Diameter*Length | mm | ∮626*2000 |
| 25 | Concave Sieve Type | | / | Grid |
| 26 | Fan | Type | / | centrifugal |
| 27 | Diameter | mm | ∮395 |
| 28 | Quantity | pc | 1 |
| 29 | Rubber Crawler | Size | / | 500mm*90mm*54 |
| 30 | Track gauge | mm | 1250 |
| 31 | Minimum radius of steering | Right | mm | 3440 |
| 32 | Left turn | mm | 3120 |
| 33 | Gear Box | Type turn | / | (forward,backward)hydraulic stepless speed change* 3 Range Shifts |
| 34 | Brake Type | | / | Wet friction Plate |
| 35 | Rethresher type | | / | Blade Rotation |
| 36 | Grain Unloading Type | | / | Mechanically/Manually |
| 37 | Rice Unlaoding
Auger | Option 1 | / | 90Degree Rice Unloading Auger (Standard) |
| 38 | Option 2 | / | 360Degree Rice Unloading Auger |
More pictures

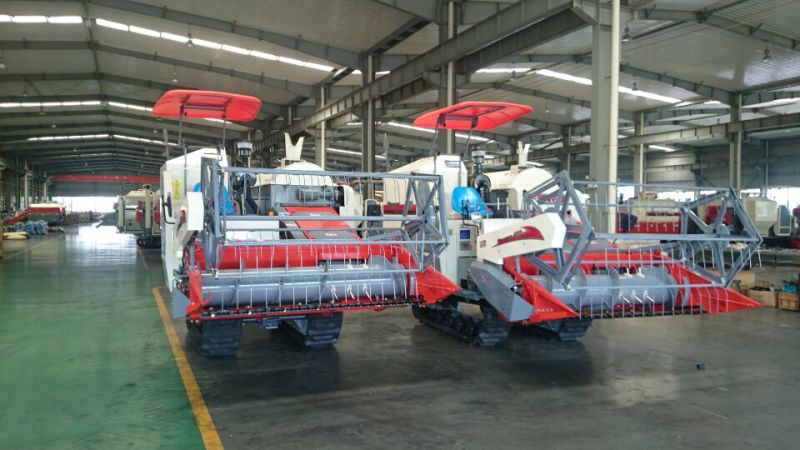

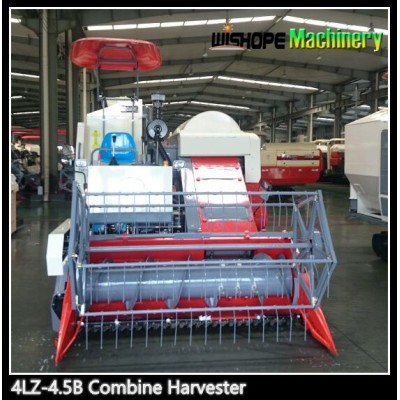

![Wishope Combine Harvester with 450*90*56 Lengthened Rubber Track]()
![Wishope Combine Harvester with 450*90*56 Lengthened Rubber Track]()
About Us:
WuHan Wishope is one branch company of Wishope International Group Limited, mainly engaged agricultural machinery production and trading.
Our business contains: Sales of all kinds of farming machines and related spare parts, specially professionally in full feeding crawler combine harvester, rice transplanter, tractor & power tiller, and also spare parts of brandedd farming machines such as Kubota, YanMar, Daedong, John Deere, Mubota, Xingguang.
Major market covers South East Asia, Middle East, as well as Southern Asia. With rich experience of exporting and excellent before-sales and after-sales service. It brings us very good reputation.
FAQ:
1.Q: What is the warranty of the agricultural machinery?
A: One year guarantee for whole machine (except quick-wear parts), engine model and gear box.
Tips: we usually suggest the buyer order some quick-wear parts separately.
2.Q: Is there any option for your combine?
A: Yes, option parts such as: rubber track, grain tank and type of grain unloading
3.Q: What is your delivery time?
A: Normally, it takes 15-20days to delivery after your deposit receipt or L/C at sight
4.How many harvesters can be loaded in one container?
1)20 Feet Container loads:
For Combine: 5 sets 4LZ-0.5; 8sets 4LZ-0.8; 1set 4LZ-1.2; 1set 4LZ-2.2; 1set 4LZ-3.0; 1set 4LZ-4.0/4.5
2) 40 High Cube Container loads:
For Combine: 11sets 4LZ-0.5; 20sets 4LZ-0.8; 4sets 4LZ-1.2; 4sets 4LZ-2.2, 3sets 4LZ-3.0, 3sets 4LZ-4.0/4.5/5.0z
5.Q: What is the payment term?
A: Irrevocable L/C at sight or 30% T/T in advance and balance against B/L copy.
6.Q: What is the after-sales service?
A: Every year we send our engineer and after-service people to local market two times, to assist our sales agent training staff, marketing, advertising, maintaining and repairing the machine during the harvesting season.
7.Q: Is OEM or ODM service acceptable?
A: OEM service is no problem, if you have any special requirement about the machine, please kindly inform us, our engineer department will study and offer your suitable solution.
Welcome inquiry!
