Potato Harvester
The potato harvester is designed and manufactured with the patent technology of proprietary intellectual property rights. A digger blade with adjustable row spacing, potato and soil separation mechanism, potato seedling separation mechanism, and potato tuber collection and laying device are added to separate potato and soil, and potato seedlings, collect and lay potato tuber, increase the obvious rate of potatoes, greatly decrease the damage rate of potatoes and obviously enhance production rate.It integrates potato and soil separation technology; potato seedling separation technology; digging depth control technology; collecting, cleaning, skin breaking comprehensive control technology; a combination of mechanical and electrical hydraulic technology; It developed the harvester integrating gullying, digging, conveying and separation, stem and vine separation and collection and laying. The potato harvester is in a novel structure, connected firmly, convenient for dismounting, obtains few repair feedbacks and reliable in performance.
The contra-rotating plastic wheel technology developed creatively by Transce Company is adopted in the harvester. World-leading CNC laser cutting technology and CNC bending technology are adopted in the process of production to guarantee the quality of products and enable the products to master a good quality, high obvious rate, low damage rate, high production efficiency, wide applicable scope and other excellent performances. Regarding to technology and product quality, the potato harvesters of our Company spearhead congeneric products in the aspects of the stability of products and its core technology through the continuous enhancement and innovation by us.

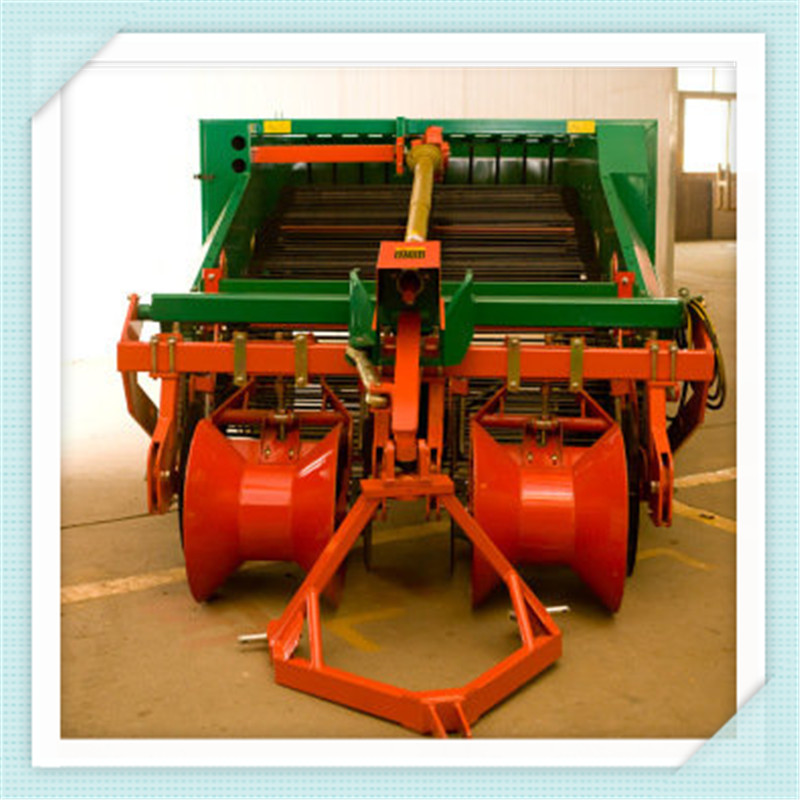

4UQ-165 Potato Harvester| No. | Item | Unit | Parameter Index |
| 1 | Structural style | / | Pull-type |
| 2 | Overall dimension (length×width×height) | mm | 5980×2590×1710 |
| 3 | Machine quality | kg | 2320 |
| 4 | Supporting power | kW | 92~118 |
| 5 | Working row (ridge) number | / | 2 |
| 6 | Operation width | mm | 1650 |
| 7 | Applicable ridge width | mm | ≤700 |
| 8 | Excavation depth | mm | 150~300 |
| 9 | Production rate of pure working hour | hm²/h | 0.32~0.55 |
| 10 | Obvious rate | / | ≥96% |
| 11 | Damage rate | / | ≤1.5% |
| 12 | Skin-broken rate | / | ≤2% |
| 13 | Digger blade type | / | Combine type of grafter |
| 14 | Chaff cutter type | / | Disc type |
| 15 | Suppressing depth limiting roller type | / | Trapezoid cylinder type |
| 16 | Conveying separation mechanism type | / | Grating and screening type conveying chain + potato seedling separation mechanism |
| 17 | Collected potato laying type | / | Soil-gathered compacting, forming and laying |
![New Arrival Potato Harvester 4uq-165 with Good Performance]()
![New Arrival Potato Harvester 4uq-165 with Good Performance]()
![New Arrival Potato Harvester 4uq-165 with Good Performance]()
FAQ:
| Q1: Are you a factory or trading company? |
We are a factory with self-supported import and export right.
|
Q2: How can I trust on your company? |
We are a fully registered manufacture and exporting company by China Export Registration Authorities. Moreover, our products have been exported to a number of countries including Switzerland, Russia, Spain, Mongolia, Australia, pakistan, Thailand, Ukraine, Indonesia, Kazakhstan, Chile, South Africa, Sudan etc. The good faith, punctual, strict quality control and reasonable price, this is the pledge to each customer.
|
Q3: Where is your factory located? How can I visit there? |
Our factory is located in Yucheng City, Shandong Province, China. Which is about one hour away from Jinan Airport. All our clients are warmly welcomed to visit us!
|
Q4: How can I place an order from your website? |
It is very easy.Once you find the implement you need on our website and place an inquiry against it, or, get to the inquiry section and leave us a message there with name, country and phone number, we will get in touch with you at the earliest. You can also e-mail us directly or join us on live chat for instantaneous answers.
|
Q5: How can I make the payment? |
Payment is made via Telegraphic Transfer (T/T) through the bank against the proforma invoice.
30% as prepayment and the balance 70% will be paid by you when the goods are ready for shipping.
Irrevocable L/C at sight could be also accepted.
|
Q6: What's the Payment terms? |
FOB, the price of the implement without sea shipment costs. CIF, including the unit cost + marine insurance + Shipment charges to your destination port. CFR, including the unit cost + Shipment charges to your destination port.
|
Q7: At which port do you usually ship the good? |
We usually ship goods via Qingdao, Tianjin port of China which is near to our factory.
|
Q8. How about the Warranty ? |
12 months warranty from the time of the goods arrive at destination.
|
