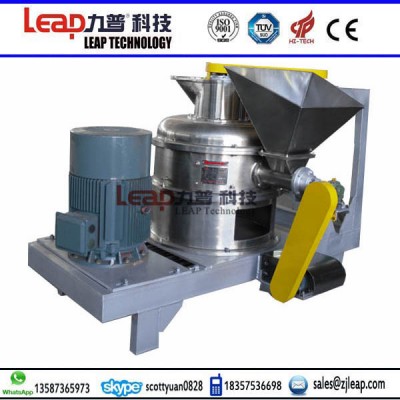

Ultrafine Mesh Melamine Powder Shredder
ACM Series Air Classifier Mill
1)Low-noise
2)Environment-friendly
3) High capacity
4)Stainless steel main parts or Carbon Steel parts
5)Precipitator using a cartridge filter area, Filtration area of 96 square meter.
The current domestic crushing equipment, the high hardness, crushing the material difficulty exists, such as Short life for the wearing parts, not easy to crush high hardness, high humidity, sticky, low melting point, hard To discharge the material, and flammable. The main advantages of various types of integrated mill in the ACM Series, based on the repeated practice made. The correct fineness is based on the material.
Main purpose
This applies to the following seven non-metallic mineral hardness, diatomite, fluorspar, Fluorite, mica, and Low humidity, high melting point, viscosity of sulfur Juan, pesticides, and other ultra-fine grinding of Materials to solve the major problem which current domestic crushing industry can not solve. Fineness Can reach at 5 to 10 microns. Especially for cocoa coarse material,cocoa shell,coconut cake,rice, sugar,corn, fibre material,medicinal materials...
Technical Parameter
| MODEL | ACM-5 | ACM-15 | ACM-30 | ACM-50 | ACM-60 | ACM-100 | ACM-120 |
| Parameter\ |
| Matched Powder(kw) | Grinding Plate | 4 | 11 | 22 | 30 | 45 | 90 | 110 |
| Classifying wheel | 0.75 | 4 | 5.5 | 7.5 | 11 | 15 |
| Feeder | 0.35 | 0.37 | 0.55 | 1.1 |
| Air Flow(m3/h) | 250-500 | 1200-2000 | 2200-3600 | 3500-5500 | 4000-7500 | 7500-15000 | 9000-18000 |
| Rotation Speed (r/min) | Grinding plate | 9000 | 5600 | 4600 | 4200 | 2900 | 2100 | 1800 |
| Classifying wheel | 900-3500 | 750-2800 | 700-2800 | 650-2600 | 600-2400 | 500-2000 | 400-1800 |
| Pulverizatin Fineness(μm) | 5-300 |
| Dimension(l×w×h)mm | 690×690×770 | 1300×650×750 | 1640×960×1030 | 2000×1200×1300 | 2000×1200×1300 | 2400×1500×1600 | 2400×2200×2600 |
| N.W(kg) | 300 | 600 | 1000 | 1600 | 2000 | 3000 | 3500 |
