Chinese Low price Rosin Powder Granulator
Working Principle

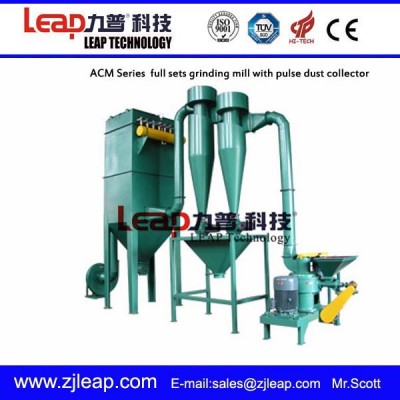

Air classifier mill material would be conveyed by feeding system evenly to milling chamber, and would be impacted by high-speed rotating beater, and also under the centrifugal force, it would impact the grinding track.By several different pulverization powers, the material would be milled into fine powder.The milled powder would go with air flow up to the classifying chamber.With the help of adjustable classifier wheel, coarse powder and fine powder would be separated.Qualified fine powder would go through the wheel vane then into the cyclone separator or dust collector, while mixture of coarse powder and fine powder would fall down to the milling chamber to be milled again.
Performance Features
1.Air classifier mill milling and classifying in one system.Required product size achieved by the adjustment of classifier wheel.
2.Compact structure, small space occupation, low installation power, wide application, and high performance cost.
3.Different beater designs, pin shape, hammer shape and tooth shape, for different materials.High milling efficiency.
4.Suitable for powder product milling between d50:2micron and 75micron.
Technical Parameter
| MODEL | ACM-5 | ACM-15 | ACM-30 | ACM-50 | ACM-60 | ACM-100 | ACM-120 |
| Parameter\ |
| Matched Powder(kw) | Grinding Plate | 4 | 11 | 22 | 30 | 45 | 90 | 110 |
| Classifying wheel | 0.75 | 4 | 5.5 | 7.5 | 11 | 15 |
| Feeder | 0.35 | 0.37 | 0.55 | 1.1 |
| Air Flow(m3/h) | 250-500 | 1200-2000 | 2200-3600 | 3500-5500 | 4000-7500 | 7500-15000 | 9000-18000 |
| Rotation Speed (r/min) | Grinding plate | 9000 | 5600 | 4600 | 4200 | 2900 | 2100 | 1800 |
| Classifying wheel | 900-3500 | 750-2800 | 700-2800 | 650-2600 | 600-2400 | 500-2000 | 400-1800 |
| Pulverizatin Fineness(μm) | 5-300 |
| Dimension(l×w×h)mm | 690×690×770 | 1300×650×750 | 1640×960×1030 | 2000×1200×1300 | 2000×1200×1300 | 2400×1500×1600 | 2400×2200×2600 |
| N.W(kg) | 300 | 600 | 1000 | 1600 | 2000 | 3000 | 3500 |
Inquiry Service
Please fill in your need products and your message and do not forget mail and/or phone if you like to be contacted.
We are the professional machine manufacturer in China.
I need to ask you some details for sending you the more suitable quotation,
1.What is the raw material do you want to process?
2.What is the capacity per hour do you need?
3.What is the raw material input size?
4.What is the output size of your product?
I hope you can tell me these details, i will give you the best quotation ASAP, thanks.Your satisfaction is our greatest pursuit, we would like to sincerely for your service!We look forward to your inquiry!
