Quick Details
Place of Origin:
China (Mainland)
Product Description
Basic Info
- Model NO.: ACM
- Processing Object: Beans
- Screen Mesh: Without Screen Mesh
- Pellet Mill Type: Ring Die Pelleter
- Expanding Method: Dry Expansion
- Trademark: LEAP
- Origin: China
- Type: Grinding Equipment
- Processing Technics: Crushing-before-Mixing
- Grinding Equipment Type: Feed Hammer Mill
- Bulking Machine Type: Twin Screw Bulking Machine
- Condition: New
- Specification: ISO9001
- HS Code: 8479820090
Product Description
Herbal grinding mill,chinese herbal medicine grinder,pulverizer

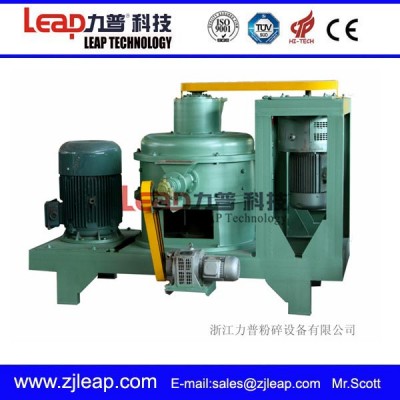

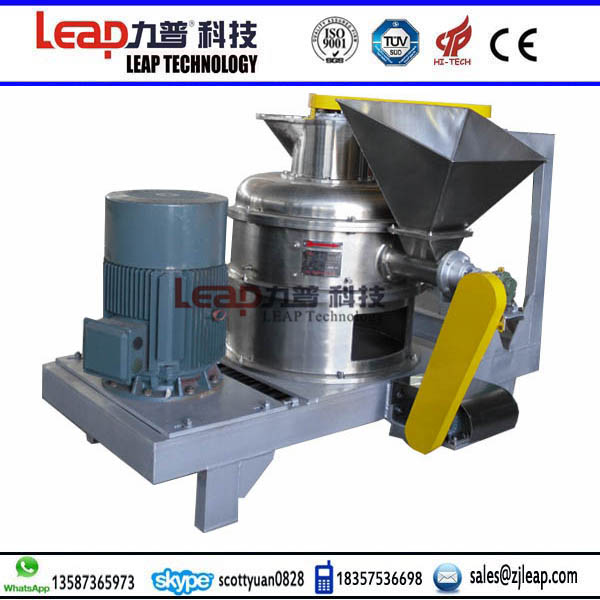

ACM Series Air Classifier Mill1)Low-noise
2)Environment-friendly
3) High capacity

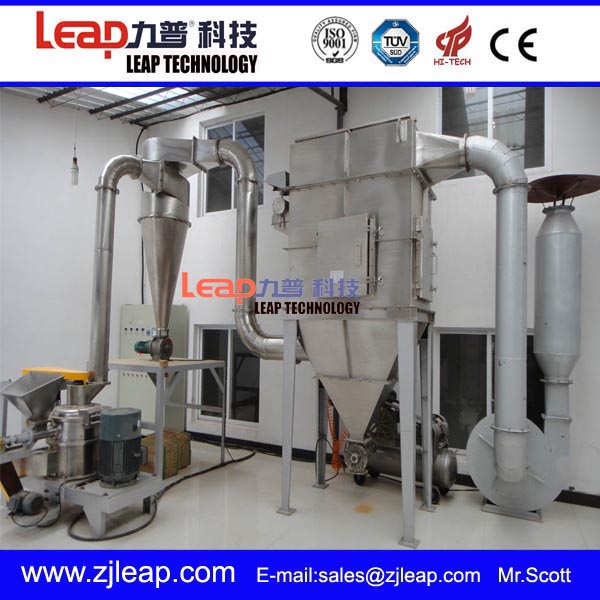

4)Stainless steel main parts or Carbon Steel parts5)Precipitator using a cartridge filter area, Filtration area of 96 square meter.The current domestic crushing equipment, the high hardness, crushing the material difficulty exists, such as Short life for the wearing parts, not easy to crush high hardness, high humidity, sticky, low melting point, hard To discharge the material, and flammable. The main advantages of various types of integrated mill in the ACM Series, based on the repeated practice made. The correct fineness is based on the material.Main purposeThis applies to the following seven non-metallic mineral hardness, diatomite, fluorspar, Fluorite, mica, and Low humidity, high melting point, viscosity of sulfur Juan, pesticides, and other ultra-fine grinding of Materials to solve the major problem which current domestic crushing industry can not solve. Fineness Can reach at 5 to 10 microns. Especially for cocoa coarse material,cocoa shell,coconut cake,rice, sugar,corn, fibre material,medicinal materials...Technical Parameter
| MODEL | ACM-5 | ACM-15 | ACM-30 | ACM-50 | ACM-60 | ACM-100 | ACM-120 |
| Parameter\ |
| Matched Powder(kw) | Grinding Plate | 4 | 11 | 22 | 30 | 45 | 90 | 110 |
| Classifying wheel | 0.75 | 0.75 | 4 | 5.5 | 7.5 | 11 | 15 |
| Feeder | 0.35 | 0.37 | 0.55 | 0.55 | 0.55 | 1.1 | 1.1 |
| Air Flow(m3/h) | 250-500 | 1200-2000 | 2200-3600 | 3500-5500 | 4000-7500 | 7500-15000 | 9000-18000 |
| Rotation Speed (r/min) | Grinding plate | 9000 | 5600 | 4600 | 4200 | 2900 | 2100 | 1800 |
| Classifying wheel | 900-3500 | 750-2800 | 700-2800 | 650-2600 | 600-2400 | 500-2000 | 400-1800 |
| Pulverizatin Fineness(μm) | 5-300 |
| Dimension(l×w×h)mm | 690×690×770 | 1300×650×750 | 1640×960×1030 | 2000×1200×1300 | 2000×1200×1300 | 2400×1500×1600 | 2400×2200×2600 |
| N.W(kg) | 300 | 600 | 1000 | 1600 | 2000 | 3000 | 3500 |
![Herbal Grinding Mill, Chinese Herbal Medicine Grinder, Pulverizer]()
![Herbal Grinding Mill, Chinese Herbal Medicine Grinder, Pulverizer]()
![Herbal Grinding Mill, Chinese Herbal Medicine Grinder, Pulverizer]()
