Vertical Ultrafine Grinding Machine, vertical pulverizer for secondary grinding
Description& Features for Vertical Ultrafine Grinding Machine, vertical pulverizer for secondary grinding
1.The machine is of no-screen type structure,non-blocking, grinding , wind grading and secondary grinding are finished at the same time;
2.Special grinding plate design, which features high capacity, even fineness and low temperature rise;
3.Fineness is adjustable from 60 to 200 meshes,special micro grinding can be achieved;
4.Advanced driving system,running is stable, temperature rise of bearing is low, no need to add oil and maintenance is convenient;
5.The hammer head and teeth ring are welded with high quality alloy steel, the useful life of wearing parts is improved gratefully;
6.With special silencer to reduce noise drastically ;
7.The screw feeder can automatically remove impurities of large specific gravity to ensure normal working of machine.
Specification for Vertical Ultrafine Grinding Machine, vertical pulverizer for secondary grinding, hammer mill| Model | Capacity
(t/h)
[90% through 60 mesh] | Main Power
(KW) | Power of Air Separating Motor
(KW) | Power of Feeding Motor
(KW) |
| SWFL55 | 0.6-1.0 | 55 | 4 | 0.75 |
| SWFL75 | 1.2-1.5 | 75 |
| SWFL90 | 1.5-2 | 90 | 5.5 | 1.1 |
| SWFL110 | 3-4 | 110 | 11 | 1.1 |
| SWFL132 | 4-4.5 | 132 | 15 | 1.5 |
| SWFL150 | 6-10 | 160 | 18.5 | 1.5 |

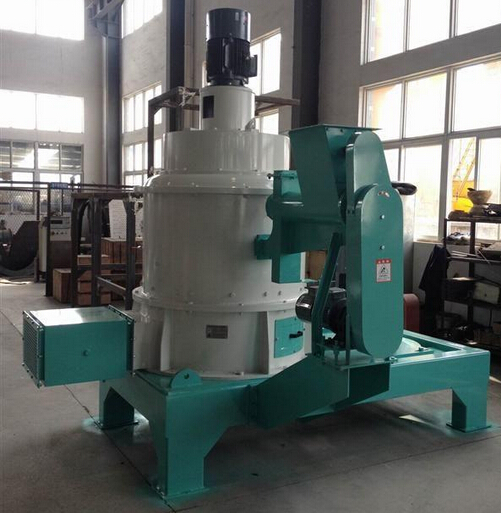

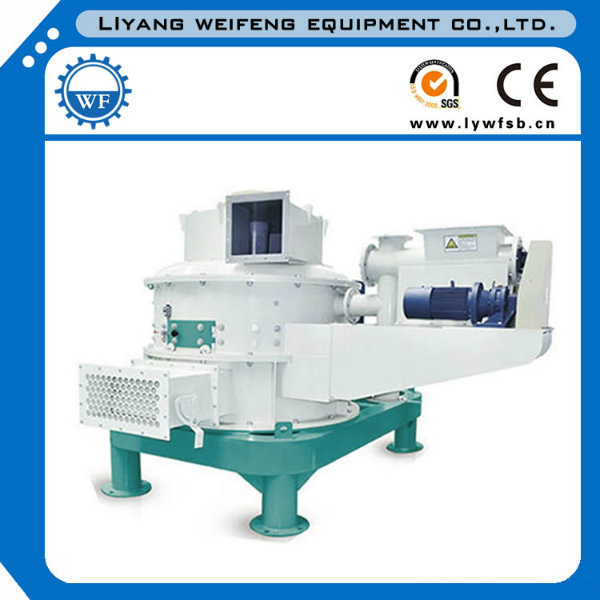

Photos for Hammer Mill,ultrafine grinder,Vertical Pulverizer,micro grinding machine
![Vertical Ultrafine Grinding Machine, Vertical Pulverizer for Secondary Grinding]()
![Vertical Ultrafine Grinding Machine, Vertical Pulverizer for Secondary Grinding]()
