Chinese high quality animal feed pellet mill
We are manufacturing various pellet mill and complete project, such as high quality animal
feed, poultry feed, livestock feed, farm animal feed, pig feed, horse feed, chicken feed pellet
machine, cattle feed pellet machine, crab feed pellet mill, duck feed, cow feed, goat feed,
cat feed, rabbit feed, pigeon feed, sheep feed, fish feed pellet mill, aqua feed pellet machine,
shrimp pellet machine, and so on.

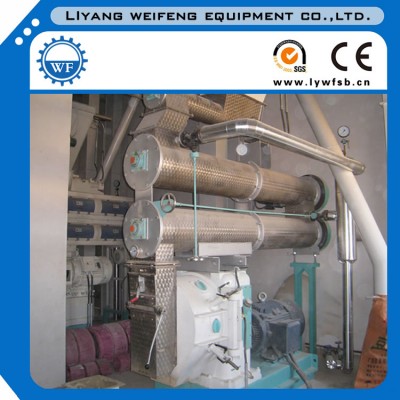

small animal feed pellet mill, animal feed pellet machine
Features:
1.1 SZLH series top-grade pellet mill belong to hard granular material die pellet mill, it is widely used in various feed mills.
1.2 This machine has characteristics such as compact structure, fine appearance, low power
consumption, easy to use and reliable working etc.
1.3 This machine is equipped with dies of various apertures asφ 2 , φ 3 , φ 4 , φ 4. 5, φ 5 , φ 6 ,φ 8
and φ10 , and can customize the die of different apertures for users , users can select for use
according to different needs.
1.4 This machine adopts frequency conversion (electromagnetic) transfer speed electric motor to
feed material, and with lengthened type and strengthened type of big door-opening
conditioner which equipped with axial steam spraying device, also there is strong magnetic
security device, overload protective device and outside-machine material discharging mechanism.
Technical parameter:
| No. | Item | Technical parameters and performance index |
| SZLH250 | SZLH320 | SZLH350 | SZLH400 | SZLH420 | SZLH508 |
| 1 | Capacity (t) | 0.5-1.5 | 1-5 | 2-7 | 3-12 | 3-14 | 4-20 |
| 2 | Power
(Kw) | Main machine | 15/22 | 37 | 55 | 75/90 | 90/110 | 110/132/160 |
| Screw feeder | 0.55 | 0.75 | 0.75 | 1.5 | 1.5 | 1.5 |
| Conditioner | 1.5 | 3 | 3 | 5.5 | 5.5 | 11 |
| 3 | Inner diameter of die (mm) | φ250mm | φ350mm | φ350mm | φ400mm | φ420mm | φ508mm |
| 4 | Pellet size (mm) | φ2-φ18mm | φ2-φ18mm | φ2-φ18mm | φ2-φ18mm | φ2-φ18mm | φ2-φ18mm |
| 5 | No. of press roll | 2 | 2 | 2 | 2 | 2 | 2 |
| 6 | Outer diameter of press roll | / | / | φ140mm | φ190mm | φ190mm | / |
| 7 | Shaping rate(%) | ≥95% | ≥95% | ≥95% | ≥95% | ≥95% | ≥95%
|
We use WANNAN/Siemens brand motor,NSK bearing,forging main shaft.
Adopting gear driven, the power consumption can low down 15% and output capacity can improve 10% than belt driven.
All feeder,conditioner and face plate are stainless steel.
1 .High efficiency
Gear directly-connecting driving is adopted for high efficiency;
2 .Stainless steel feeder
Full stainless steel feeder; Variable pitch anti-bridging structure; Imported FC control;
3 . High quality conditioner
LL stainless steel conditioner with axial steam spraying extends the conditioning and cooking time
4 .Low noise and Long service
Main gear and pinion shaft adopt the carbonizing quenching with high accuracy; Smooth driving, low noise and long service life;
5 . Good quality spare parts
Gearbox and driving holes' accuracy are guaranteed by specialized casting supplier and NCC;
6 . Imported bearing and oil seal
The bearing and oil seal in the main drive are imported, and especially lubrication oil return system is available to ensure reliable bearing lubrication;
7. E-installation.
2 pc quick disassembling type precisely-cast die clamp is adopted to connect the die and quill flange, resulting in convenient and quick disassembling of die;
8 . Anti-corrosion
Pellet chamber door and feed chute are fully made of stainless steel with high anti-corrosion ability and long service life;
9. Reasonable internal structure
The connection between motor and gearbox adopts new type S-shape spring coupling with more convenient disassembling and assembling and more reliable use.
Welcome to visit our factory in China!
