SZLH 1-10t/h animal feed pellet mill supplier
![Szlh 1-10t/H Animal Feed Pellet Mill Supplier]()

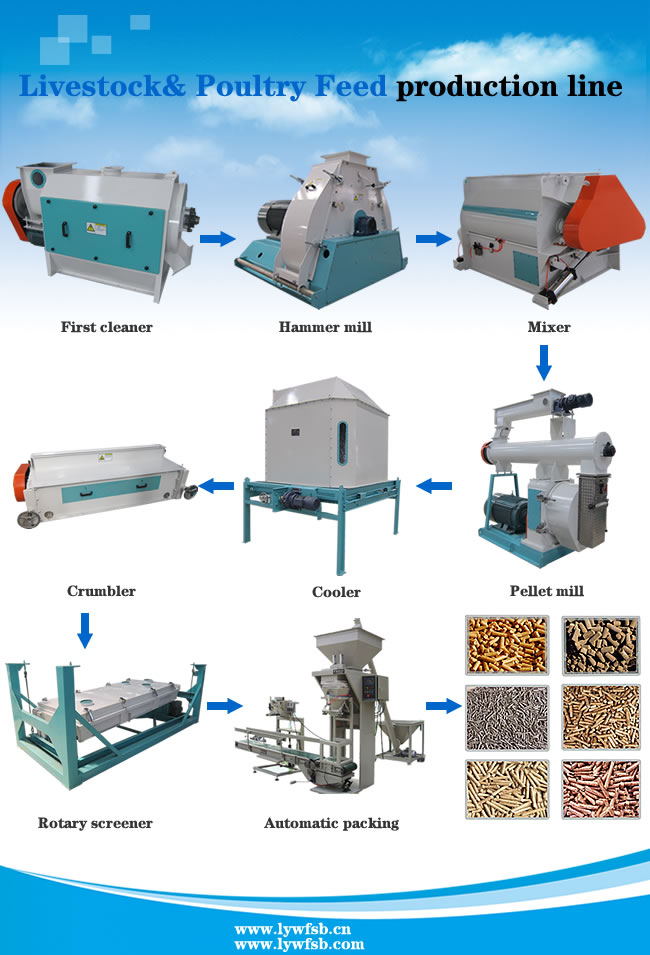

We are manufacturing various pellet mill and complete project, such as high quality animal
feed, poultry feed, livestock feed, farm animal feed, pig feed, horse feed, chicken feed pellet
machine, cattle feed pellet machine, crab feed pellet mill, duck feed, cow feed, goat feed,
cat feed, rabbit feed, pigeon feed, sheep feed, fish feed pellet mill, aqua feed pellet machine,
shrimp pellet machine, and so on.
![Szlh 1-10t/H Animal Feed Pellet Mill Supplier]()
small animal feed pellet mill, animal feed pellet machine
Features:
1.1 SZLH series top-grade pellet mill belong to hard granular material die pellet mill, it is widely used in various feed mills.
1.2 This machine has characteristics such as compact structure, fine appearance, low power
consumption, easy to use and reliable working etc.
1.3 This machine is equipped with dies of various apertures asφ 2 , φ 3 , φ 4 , φ 4. 5, φ 5 , φ 6 ,φ 8
and φ10 , and can customize the die of different apertures for users , users can select for use
according to different needs.
1.4 This machine adopts frequency conversion (electromagnetic) transfer speed electric motor to
feed material, and with lengthened type and strengthened type of big door-opening
conditioner which equipped with axial steam spraying device, also there is strong magnetic
security device, overload protective device and outside-machine material discharging mechanism.
Technical parameter:
No. | Item | Technical parameters and performance index |
SZLH250 | SZLH320 | SZLH350 | SZLH400 | SZLH420 | SZLH508 |
1 | Capacity (t) | 0.5-1.5 | 1-5 | 2-7 | 3-12 | 3-14 | 4-20 |
2 | Power (Kw) | Main machine | 15/22 | 37 | 55 | 75/90 | 90/110 | 110/132/160 |
Screw feeder | 0.55 | 0.75 | 0.75 | 1.5 | 1.5 | 1.5 |
Conditioner | 1.5 | 3 | 3 | 5.5 | 5.5 | 11 |
3 | Inner diameter of die (mm) | φ250mm | φ350mm | φ350mm | φ400mm | φ420mm | φ508mm |
4 | Pellet size (mm) | φ2-φ18mm | φ2-φ18mm | φ2-φ18mm | φ2-φ18mm | φ2-φ18mm | φ2-φ18mm |
5 | No. of press roll | 2 | 2 | 2 | 2 | 2 | 2 |
6 | Outer diameter of press roll | / | / | φ140mm | φ190mm | φ190mm | / |
7 | Shaping rate(%) | ≥95% | ≥95% | ≥95% | ≥95% | ≥95% | ≥95% |
![Szlh 1-10t/H Animal Feed Pellet Mill Supplier]()

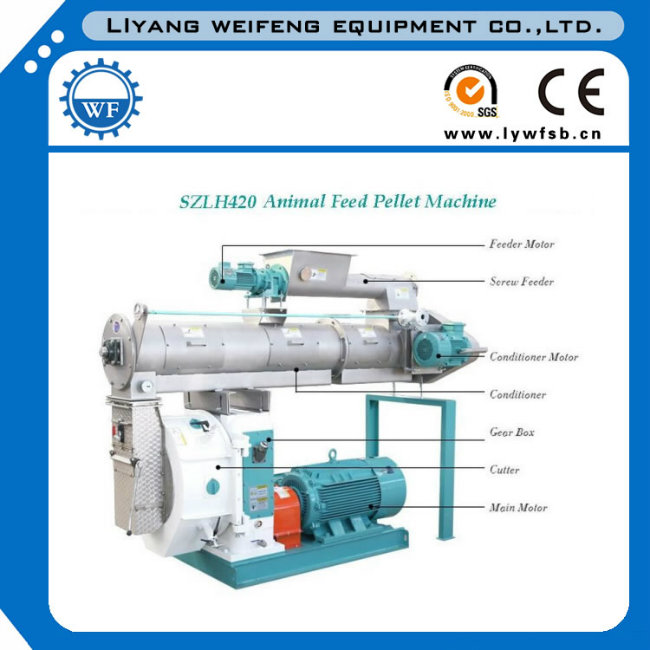

We use WANNAN/Siemens brand motor,NSK bearing,forging main shaft.
Adopting gear driven, the power consumption can low down 15% and output capacity can improve 10% than belt driven.
All feeder,conditioner and face plate are stainless steel.

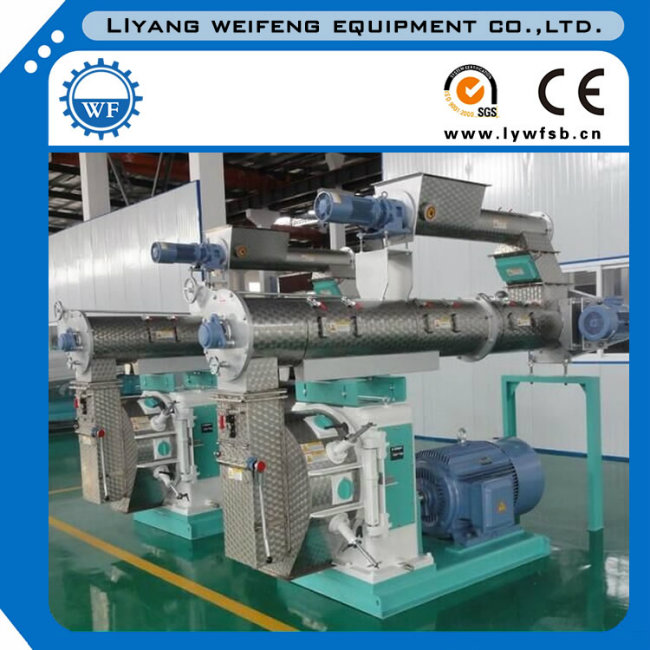

SZLH Feed Pellet Mill in Stock:![Szlh 1-10t/H Animal Feed Pellet Mill Supplier]()
Welcome to visit our factory in China!
