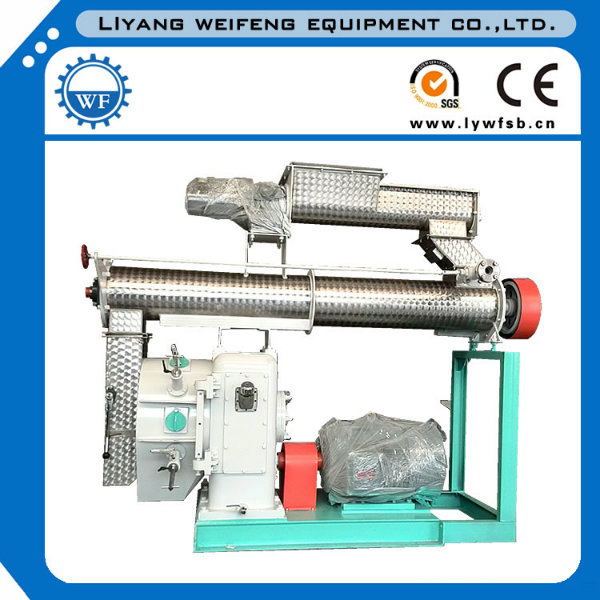

0.5-1.5t/h Animal Feed Pellet Mill Machine for chicken/duck/pig/cattle/cow
We are manufacturing various pellet mill and complete project, such as high quality animal feed, poultry feed, livestock feed, farm animal feed, pig feed, horse feed, chicken feed pellet machine, cattle feed pellet machine, crab feed pellet mill, duck feed, cow feed, goat feed, cat feed, rabbit feed, pigeon feed, sheep feed, fish feed pellet mill, aqua feed pellet machine, shrimp pellet machine, and so on.
![0.5-1.5t/H Animal Feed Pellet Mill Machine for Chicken/Duck/Pig/Cattle/Cow]()
Pellet Mill: SZLH250, SZLH320, SZLH 350, SZLH420, SZLH508 and so on.
Capacity:1t/h, 2t/h,3t/h,5t/h,8t/h,10t/h,20t/h,30t/h
Technical parameter for SZLH250- 0.5-1.5t/h Animal Feed Pellet Mill Machine:
1. Main power: 15/22kw
2. Capacity: 0.5-1.5t/h
3. Power of Feeder: 0.55kw
4. Power of Conditioner: 1.5kw
5. Diameter of Inner Die: ø 250mm
6. Pellet size: ø2-ø18
Features:
1. Main drive adopt high accurate gear drive, the ring die adopt quick assemble and disassemble hoop type, the capacity of gear drive can be increased by 15% or more than belt drive.
2. The driving part of the machine adopt imported high quality bearing and oil seal, which insure the drive high efficient, stable, low noise.
3. Full stainless feeder, varying pitch anti- caking arch structure, speed adjusted and controlled by imported frequency conversion .
4. Lengthening and overstriking clip type conditioner, built-in steam set cover can make the steam even ,and fully temper curing material, insure the feed with high quality.
5. Matched with iron and security overload protection equipments; advanced snake type spring coupling, stainless steel gate and chute.
6. Can equip with double , three layer conditioners, or double shaft ,different diameter conditioner, meet the different demands of producing high quality poultry & livestock feed and aqua feed .
Technical parameter for other pellet machine model:
No. | Item | Technical parameters and performance index |
SZLH250 | SZLH320 | SZLH350 | SZLH400 | SZLH420 | SZLH508 |
1 | Capacity (t/h) | 0.5-1.5 | 1-5 | 2-7 | 3-12 | 3-14 | 4-20 |
2 | Power (Kw) | Main machine | 15/22 | 37 | 55 | 75/90 | 90/110 | 110/132/160 |
Screw feeder | 0.55 | 0.75 | 0.75 | 1.5 | 1.5 | 1.5 |
Conditioner | 1.5 | 3 | 3 | 5.5 | 5.5 | 11 |
3 | Inner diameter of die (mm) | φ250mm | φ350mm | φ350mm | φ400mm | φ420mm | φ508mm |
4 | Pellet size (mm) | φ2-φ18mm | φ2-φ18mm | φ2-φ18mm | φ2-φ18mm | φ2-φ18mm | φ2-φ18mm |
5 | No. of press roll | 2 | 2 | 2 | 2 | 2 | 2 |
6 | Outer diameter of press roll | / | / | φ140mm | φ190mm | φ190mm | / |
7 | Shaping rate(%) | ≥95% | ≥95% | ≥95% | ≥95% | ≥95% | ≥95% |
Project pictures:
![0.5-1.5t/H Animal Feed Pellet Mill Machine for Chicken/Duck/Pig/Cattle/Cow]()

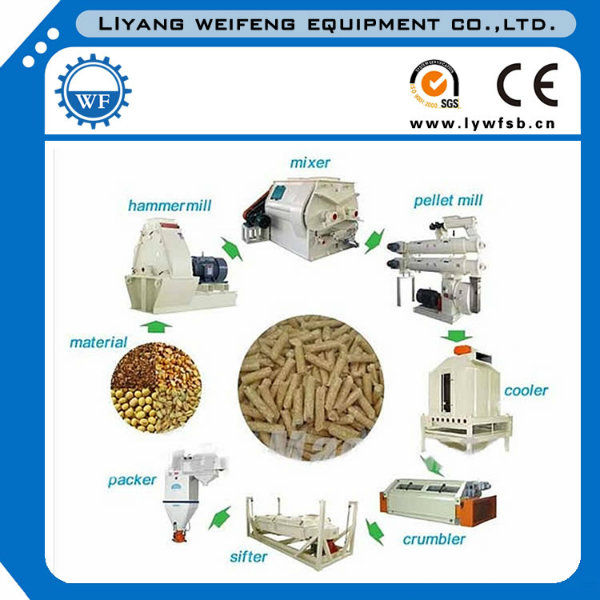

Flow chart for 0.5-1.5t/h Animal Feed Pellet Mill Machine, including pre-cleaning, grinding, batching & mixing, pelleting, cooling, packing, etc.
![0.5-1.5t/H Animal Feed Pellet Mill Machine for Chicken/Duck/Pig/Cattle/Cow]()
Welcome to our factory.
