1-10t/h capacity Single Screw Steam floating fish/pet feed Extruder
WF-AFE145,175,215Model Single Screw Steam Extruder
This series of extruder is deliberately made for Aquafeed, it has a very impressive performance and efficiency, especially when producing 3~5mm floating aquafeed.
![1-10t/H Capacity Single Screw Steam Floating Fish/Pet Feed Extruder]()
Performance characteristics:
*Wide range of applications, can adapt to a variety of production process, replaceable and adjustable screw can have different configurations to adapt different target product.
*Stainless steel DDC with 12 steam injectors and 6 liquid nozzles.
*The gearbox can stand strong torque and thrust up to 400hp.
*Jacket design barrel with liner can achieve heating/cooling function. Steam and water can also be injected directly into the barrel.
*Screw is made of special anti-wear alloy with L/D ratio up to 18:1 that assures smoothly production for all kinds of sinking/floating feed.
*Fast replacing mechanism for die and screw and on-line adjustment for cutter.
*AFE series of extruder has a special frequency control feeder, that assures the feeding process become more smooth and stable.
![1-10t/H Capacity Single Screw Steam Floating Fish/Pet Feed Extruder]()
Specification of Floating Fish Feed Extruder Machine For Sale:
Model | Main Power (KW) | Feeder Power (KW) | Conditioner Power (KW) | Cutter Power (KW) | Capacity (T/h) |
WF-AFE145 | 75/90/100 | 1.5 | 11 | 5.5 | 1.0~3.0 |
WF-AFE175 | 132/160/200 | 1.5 | 15/18.5 | 5.5 | 3.0~7.0 |
WF-AFE215 | 250/310 | 2.2 | 18.5/22 | 7.5 | 6.0~12.0 |
![1-10t/H Capacity Single Screw Steam Floating Fish/Pet Feed Extruder]()

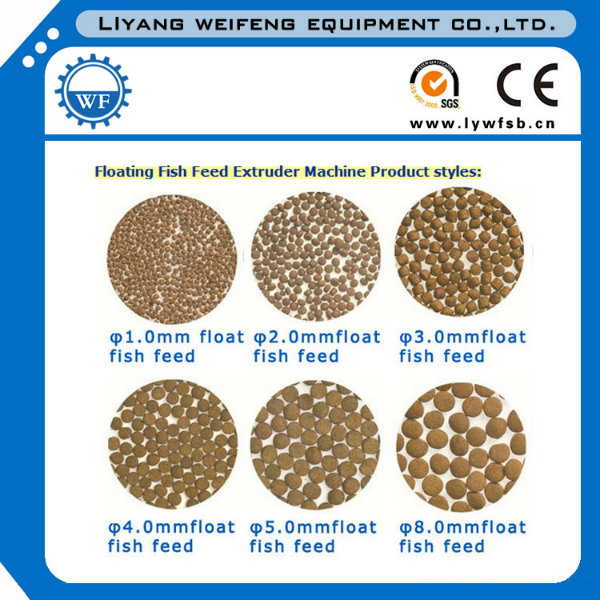

Finished Products Pictures:
![1-10t/H Capacity Single Screw Steam Floating Fish/Pet Feed Extruder]()
Welcome to visit our factory in China!
