Animal feed pellet making machine
We are manufacturing various pellet mill and complete project, such as high quality animal feed, poultry feed, livestock feed, farm animal feed, pig feed, horse feed, chicken feed pellet machine, cattle feed pellet machine, crab feed pellet mill, duck feed, cow feed, goat feed, cat feed, rabbit feed, pigeon feed, sheep feed, fish feed pellet mill, aqua feed pellet machine, shrimp pellet machine, and so on.

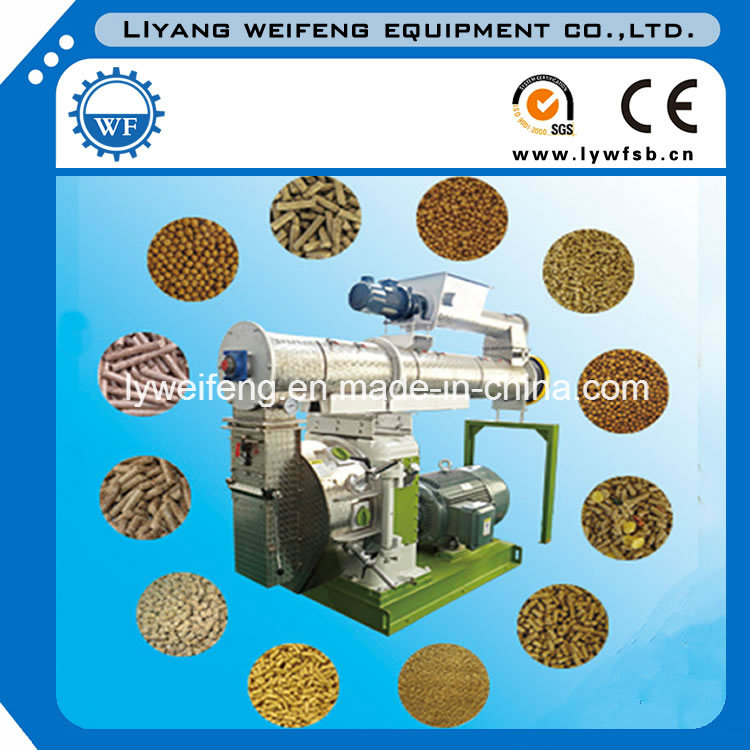

![Animal Feed Pellet Making Machine]()
Advantages of our Animal feed pellet making machine:
1) high output
2) low noise
3) low energy consumption
4) easy opertaion
Animal feed pellet making machine:
1.1 SZLH series top-grade pellet mill belong to hard granular material die pellet mill, it is widely used in various feed mills.
1.2 This machine has characteristics such as compact structure, fine appearance, low power consumption, easy to use and reliable working etc.
1.3 This machine is equipped with dies of various apertures asφ 2 , φ 3 , φ 4 , φ 4. 5, φ 5 , φ 6 ,φ 8 and φ10 , and can customize the die of different apertures for users , users can select for use according to different needs.
1.4 This machine adopts frequency conversion (electromagnetic) transfer speed electric motor to feed material, and with lengthened type and strengthened type of big door-opening conditioner which equipped with axial steam spraying device, also there is strong magnetic security device, overload protective device and outside-machine material discharging mechanism.
Technical parameter of our Animal feed pellet making machine
No. | Item | Technical parameters and performance index |
SZLH250 | SZLH320 | SZLH350 | SZLH400 | SZLH420 | SZLH508 |
1 | Capacity (t/h) | 0.5-1.5 | 1-5 | 2-7 | 3-12 | 3-14 | 4-20 |
2 | Power (Kw) | Main machine | 15/22 | 37 | 55 | 75/90 | 90/110 | 110/132/160 |
Screw feeder | 0.55 | 0.75 | 0.75 | 1.5 | 1.5 | 1.5 |
Conditioner | 1.5 | 3 | 3 | 5.5 | 5.5 | 11 |
3 | Inner diameter of die (mm) | φ250mm | φ350mm | φ350mm | φ400mm | φ420mm | φ508mm |
4 | Pellet size (mm) | φ2-φ18mm | φ2-φ18mm | φ2-φ18mm | φ2-φ18mm | φ2-φ18mm | φ2-φ18mm |
5 | No. of press roll | 2 | 2 | 2 | 2 | 2 | 2 |
6 | Outer diameter of press roll | / | / | φ140mm | φ190mm | φ190mm | / |
7 | Shaping rate(%) | ≥95% | ≥95% | ≥95% | ≥95% | ≥95% | ≥95% |

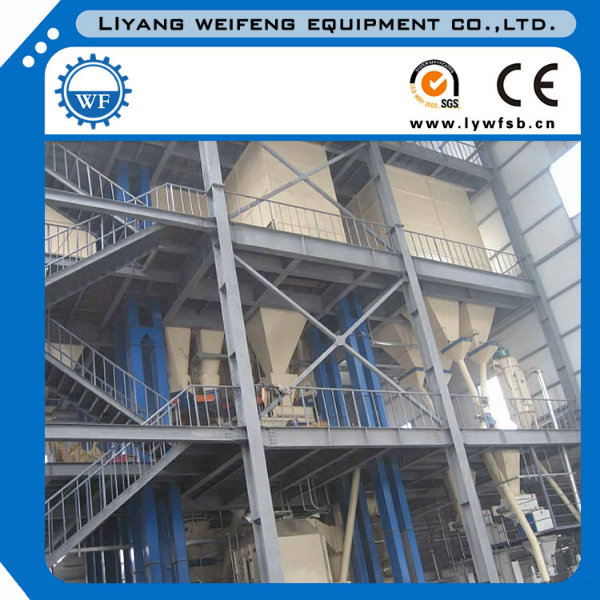

Detailed pictures of our Animal feed pellet making machine:![Animal Feed Pellet Making Machine]()

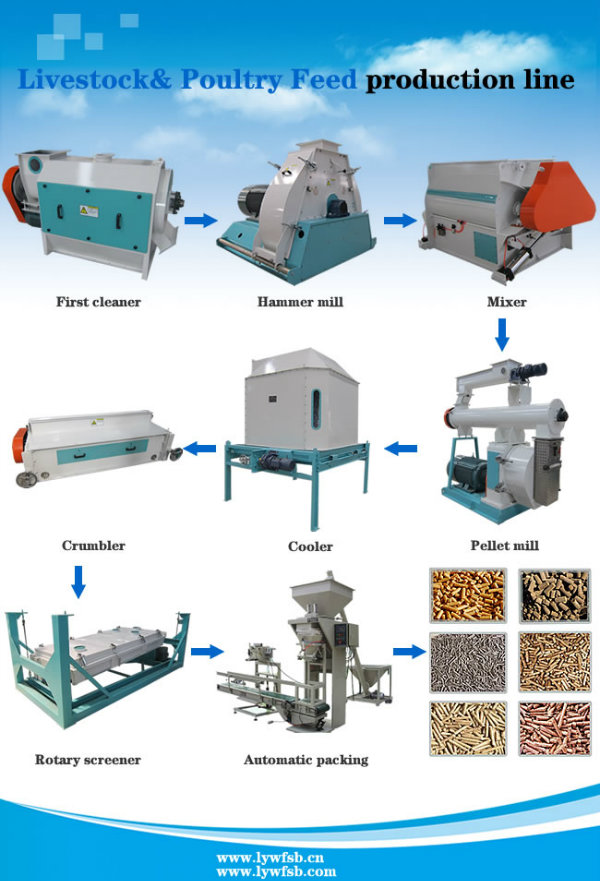

Including the process: Pre-cleaning---Grinding---Batching & Mixing---Pelleting---Cooling & Sifting---Packing
![Animal Feed Pellet Making Machine]()
We can provide turnkey projects of the feed pellet mill machine line, including equipment, electrical control cabinate, delivery, installation, commissioning, after-sale service, etc.
Our services:
(1) Warranty time: 1-3 years, from the date which the product is qualified commissioning. Any damage except the wrong operation during warranty period is repaired freely. But the travel and hotel expenses should be count on buyer.
(2) Commissioning services: the product's installation and commissioning at the demand side, our engineers will not leave there until get your agreement.
(3) Training services: our engineers will train your staff to operate it during the period of installation and commissioning, and they will not leave there until your staff can operate it properly and normally.
(4) Maintenance services: any malfunction happened, once you enquiry us, we will reply you within 48 hours except the special reasons.
(5) Lifelong services: we provide lifelong services for all the products we sold out, and supply the spare parts with discount price.
