Azeus Sinking Fish Feed Pellet Making Machine--Zhengzhou Azeus Machinery Co., Ltd.

FOB Price:	US $26,800 / Piece
Min. Order:	1 Piece

Min. Order	FOB Price
1 Piece	US $26,800/ Piece

Basic Info

Model NO.: SZLH420
Processing Object: Mixed Feed
Screen Mesh: With Screen Mesh
Pellet Mill Type: Ring Die Pelleter
Expanding Method: Dry Expansion
Applicable Materials Shape: Powder
Main Motor: 110kw
Conditioner Power: 7.5kw
Rollers Qty: 2 PCS
Size: 3500*1300*2800 mm
Roller Od: 206mm
Specification: CE
HS Code: 8474802000

Type: Pellet Mill
Processing Technics: Crushing-before-Mixing
Grinding Equipment Type: Feed Hammer Mill
Bulking Machine Type: Sigle Screw Bulking Machine
Condition: New
Name: Sinking Fish Feed Pellet Making Machine
Feeder Power: 1.5kw
Diameter of Mould: 420mm
Capacity: 8-10t/H for Animal Feed
Ring Die Speed: 287rpm
Trademark: Azeus
Origin: China

Product Description

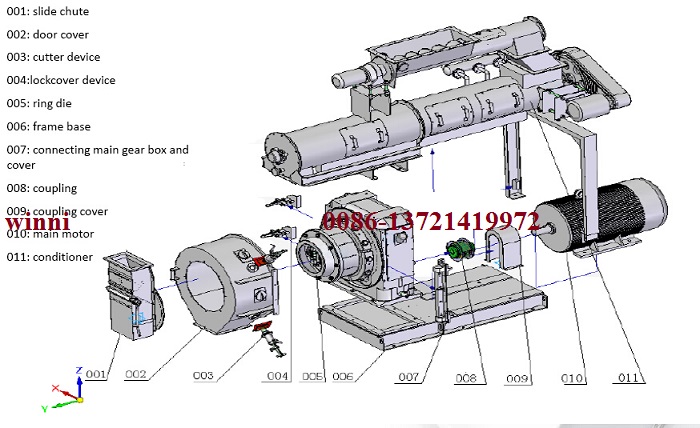

SZLH Series Feed Mill Drawing

1.Azeus Sinking Fish Feed Pellet Making Machine Specification:

(1)This series pellet mill suitable for making all kinds of animal feedstuff. Which capacity 1000-200000 kg for feed factory .
(2)The machines can be match different size of ring die hole size , such as φ1.0,φ1.2,φ1.5,φ2.0,φ2.5,φ3.0,φ3.5,φ4.0,φ4.5,φ5.0,φ6.0,φ8.0 , always for making shrimp, fish feed to use for φ1.0--3.5 ring die ; chicken feed for φ3.0; Swine feed for φ3.0--4.5; Cattle, horse for φ6.0--8.0).
(3)The machine adopt imported SKF or NSK bearings, the motor brand is Siemens or china famous Wannan brand .
Driven by gear .more strong than by belt, and the capacity 10% higher than by belt .
(4)The machine also matched the safty equipment , once overload , the safty pin will crack, to protecting the machine lifetime

2. Azeus Sinking Fish Feed Pellet Making Machine Quotation Details :

(1)Payment: 40% payment should be prepaid by telegraph transfer, the balanced 60% should be paid within 5(five) days after got the copy of B/L
(2)Delivery Time: 25- 30 days after receive the advance payment
(3)Price based on FOB Shanghai port,China Per Set
(4)Packing: Standard export packing by Fumigation-free wooden cases
(5)MOQ:1set
(6)Validity of Quotation: 2 months
(7) Warranty Period: 18 months except the spare parts

3. Azeus Sinking Fish Feed Pellet Making Machine Details Data:

Model	SZLH320	SZLH350	SZLH400	SZLH420	SZLH508
Capacity	2-5T/H	1.5-8T/H	2-10T/H	3-12T/H	4-20T/H
Main Motor Power	37KW	55KW	75/90KW	110KW	132/160KW
Screw Feeder Power	0.55KW	0.75KW	0.75KW	1.5KW	1.5KW
Conditioner Power	2.2KW	2.2KW	2.2KW	5.5KW	7.5KW
Ring die inner diameter	320mm	350mm	400mm	420mm	508mm
Ring die rotational speed	305PRM	336PRM	307PRM	287PRM	287PRM
Roller outer diameter	140mm	165mm	190mm	206mm	/
Dimension	230010002100 mm	320011001700 mm	320013001900 mm	350013002800 mm	350015002900 mm

Pellets diameter: 2mm, 3mm, 4mm, 4.5mm, 5mm, 6mm, 8mm, 10mm
Pellets shaping rate:    ≥95%
Pellets stability in water:    ≥20Min
Noise:    ≤86dB(A)   ≤90dB(A)
Roller working temperature:    ≤85ºC
Steam working pressure:    0.1-0.4Mpa
Steam temperature:    130-150ºC

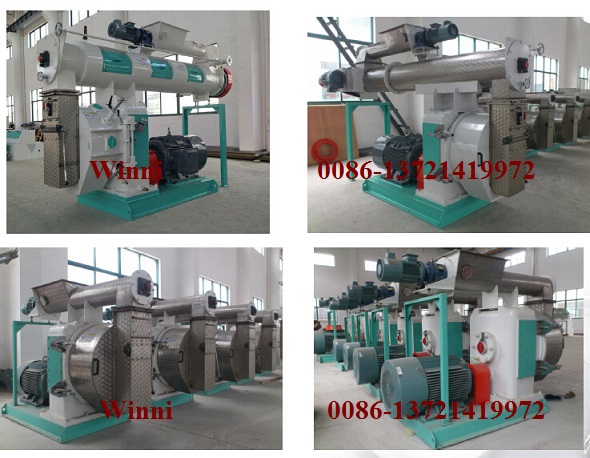

Azeus Sinking Fish Feed Pellet Making Machine Photos:

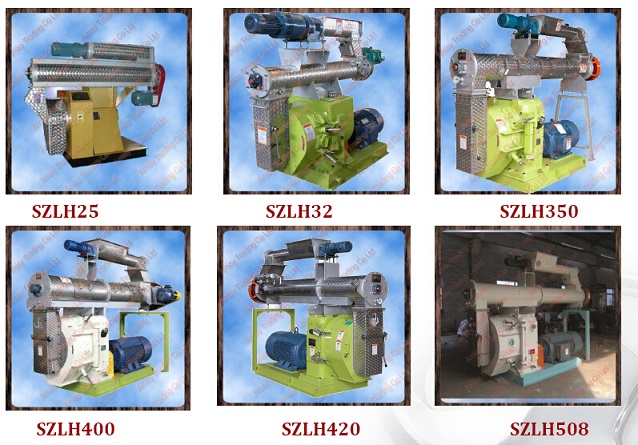

Other More Related Photos Of Azeus Sinking Fish Feed Pellet Making Machine
