Agricultural machine 400-450kg/h good quality cat feed machine

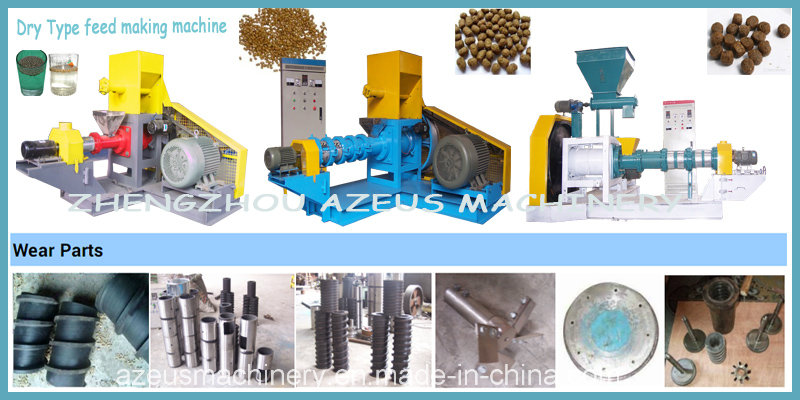

1. Introduction of our cat feed machine
Our cat feed machine also may be referred to animal feed machine, pet food machine, shrimp feed extruder and so on, which is widely used for producing grains into high-grade aquatic feed pellets for fish, catfish, shrimps, crab etc.
Cat feed machine can be classified into dry type machine & wet type machine.
*** Dry type --- Easy operation and simple.
*** Wet type--- With conditioner and need steam boiler as supporting device to work, has high yield than dry type in the same power.
![Agricultural Machine 400-450kg/H Good Quality Cat Feed Machine]()
2. Material requiement of our Cat feed production
Our fish food pellet machine is based on the raw material of corn meal, flour, Wheat middling, Wheat bran, rice bran, soybean meal, cottonseed meal, fish meal, bone meal, meat meal and etc.------ Moisture of raw material: 20% -25%
------ Raw material type: Powder
------ Fineness of material: 60-80 mesh
3. Features of our cat feed machine
1) Pellets can keep floating for 24 hours without pollution to water.
2) Our cat feed machine can make pellet from dia.1.0mm-20mm just by changing the mold.
4) The cutting device can make pellets of different length.
5) The wet type cat feed machine needs a boiler device.
6) Electric heating device is adopted which can improve the feed expansion rate and pellets floating time.
7) High temperature and high pressure cooking process can kill the salmonellosis and bacterial infections and also makes the pellets easily to digest.
8) In the same case of the feed formula, the cost of using our extruder machine can be 60% -80% less than the market cost.
4. Also supply animal feed production line![Agricultural Machine 400-450kg/H Good Quality Cat Feed Machine]()

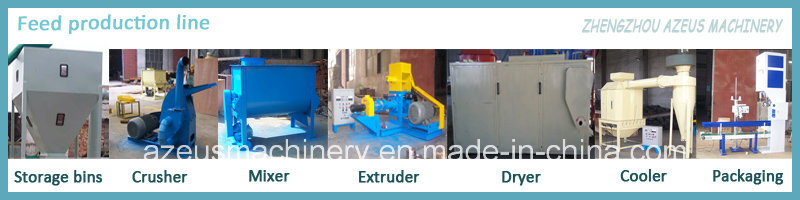

The animal feed production line is goes as follows:
Material crushing----powder mixing----pellets extruding---pellet drying---pellet cooling---pellet packing.
1) Crusher----To crush the raw material into powder.
2) Mixer -------To make all kinds of powder mixed evenly.
3) Extruder----To make many kinds of feed pellet. Such as fish feed, pet feed.
4) Dryer--------To remove the extra moisture of the pellet.
5) Cooler------ To reduce the temperature of the pellet after dring.
6) Packaging-- After cooling the feed pellet, we could package it.
The capacity of the feed production line have 60-80KG/H, 120-150KG/H, 180-200kg/h, 200-250KG/H, 320-350KG/H, 500-600KG/H, 700-800KG/H, 1.0-1.2T/H, 1.8-2.0T/H for your choosing.
This production also suitable for: 1. Animal/pet food processing line; 2. Dog food processing line; 3. Cat food processing line.5. Picture of finally feed sample
![Agricultural Machine 400-450kg/H Good Quality Cat Feed Machine]()
6. Technical parameter of our cat feed machine| Model | Output | Host Power | Feedin Power | Cutting Power | Screw Diameter |
| AZSG-50C | 60-80KG/H | 11KW | 0.4KW | 0.4KW | Φ50 |
| AZSG-60B | 120-150KG/H | 15KW | 0.4KW | 0.4KW | Φ60 |
| AZSG-70B | 180-200KG/H | 18.5KW | 0.4KW | 0.4KW | Φ70 |
| AZSG-80B | 200-250KG/H | 22KW | 0.4KW | 0.6KW | Φ80 |
| AZSG-90B | 320-350KG/H | 37KW | 0.6KW | 0.8KW | Φ90 |
| AZSG-120B | 500-600KG/H | 55KW | 1.1KW | 2.2KW | Φ120 |
| AZSG-135B | 700-800KG/H | 75KW | 1.1KW | 2.2KW | Φ135 |
| AZSG-160B | 1.0-1.2T/H | 90KW | 1.5KW | 3.0KW | Φ155 |
| AZSG-200B | 1.8-2.0T/H | 132KW | 1.5KW | 3.0-4.0KW | Φ195 |
7. FAQ of our cat feed machine
1) The cat feed machine is a single machine or a complete production line?
---It Is depend on your chooice. The animal food machine can working seperatly, also in a production line, from material crushing to final pellet packing. You can choose it freely.
2) What is the delivery time of the cat feed machine?
----Usually the single machine can be sent within 15 days after getting the deposit If it is a large order or production line, the time maybe longer.
8. Please Kindly contained these following 2 tips in your inquiry
Tips 1. The model you prefer is:
Tips 2. The capacity of the machine or the production line you need is
Any questions, please feel free to contact with us. Thank you!!!
