Top selling 320-350kg/h pellet machine dog feed machine with CE
1. Introduction of our dog feed machine
Our dog feed machine also may be referred to animal feed machine, pet food machine, shrimp feed extruder and so on, which is widely used for producing grains into high-grade aquatic feed pellets for fish, catfish, shrimps, crab etc.
Dog feed machine can be classified into dry type machine & wet type machine.
*** Dry type --- Easy operation and simple.
*** Wet type--- With conditioner and need steam boiler as supporting device to work, has high yield than dry type in the same power.

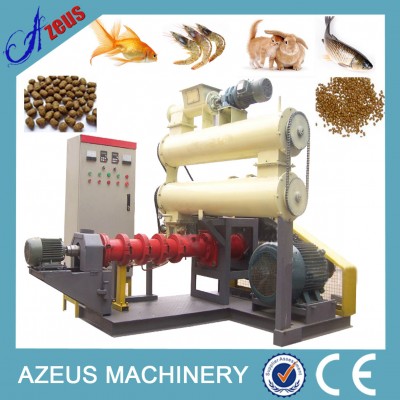

![Top Sell 320-350kg/H Pellet Machine Dog Feed Machine with CE]()
2. Material requiement of our dog feed machine
Our dog feed machine is based on the raw material of corn meal, flour, Wheat middling, Wheat bran, rice bran, soybean meal, cottonseed meal, fish meal, bone meal, meat meal and etc.------ Moisture of raw material: 20% -25%------ Raw material type: Powder
------ Fineness of material: 60-80 mesh
3. The finished production feed
![Top Sell 320-350kg/H Pellet Machine Dog Feed Machine with CE]()
A. Aquafeeds---The fish feed pellet is 0.9-20mm size, you can choose the size you prefer.
B. Pet feeds---There have 9 shapes feed for your choosing, such as three prism-shaped, triangles, cross-shaped, square-shaped, plum-shaped, feet shaped, wafer-shaped, large bone-shaped, small bone-shaped.
All of these types feed pellet be made through changing the different shape molds, amd we will supply 3 sets molds free for you.
4. Features of our floating feed extruder machine
1) Pellets can keep floating for 24 hours without pollution to water.
2) Our floating fish food pellet machine can make pellet from dia.1.0mm-20mm just by changing the mold.
4) The cutting device can make pellets of different length.
5) The wet type fish feed mill needs a boiler device.
6) Electric heating device is adopted which can improve the feed expansion rate and pellets floating time.
7) High temperature and high pressure cooking process can kill the salmonellosis and bacterial infections and also makes the pellets easily to digest.
8) In the same case of the feed formula, the cost of using our extruder machine can be 60% -80% less than the market cost.
5. Also supply animal feed production line
The animal feed production line is goes as follows:
Material crushing----powder mixing----pellets extruding---pellet drying---pellet cooling---pellet packing.
The capacity of the feed production line have 60-80KG/H, 120-150KG/H, 180-200kg/h, 200-250KG/H, 320-350KG/H, 500-600KG/H, 700-800KG/H, 1.0-1.2T/H, 1.8-2.0T/H for your choosing.
This production also suitable for: 1. Animal/pet food processing line; 2. Dog food processing line; 3. Cat food processing line.6. Technical parameter of our dog feed machine| Model | Output | Host Power | Feedin Power | Cutting Power | Screw Diameter |
| AZSG-50C | 60-80KG/H | 11KW | 0.4KW | 0.4KW | Φ50 |
| AZSS-60B | 120-150KG/H | 15KW | 0.4KW | 0.4KW | Φ60 |
| AZSS-70B | 180-200KG/H | 18.5KW | 0.4KW | 0.4KW | Φ70 |
| AZSS-80B | 200-250KG/H | 22KW | 0.4KW | 0.6KW | Φ80 |
| AZSS-90B | 320-350KG/H | 37KW | 0.6KW | 0.8KW | Φ90 |
| AZSS-120B | 500-600KG/H | 55KW | 1.1KW | 2.2KW | Φ120 |
| AZSS-135B | 700-800KG/H | 75KW | 1.1KW | 2.2KW | Φ135 |
| AZSS-160B | 1.0-1.2T/H | 90KW | 1.5KW | 3.0KW | Φ155 |
| AZSS-200B | 1.8-2.0T/H | 132KW | 1.5KW | 3.0-4.0KW | Φ195 |
7. Please Kindly contained these following 2 tips in your inquiry
Tips 1. The model you prefer is:
Tips 2. The capacity of the machine or the production line you need is
8. The picture of our factory
![Top Sell 320-350kg/H Pellet Machine Dog Feed Machine with CE]()
Any questions, please feel free to contact with us. Thank you!!!
