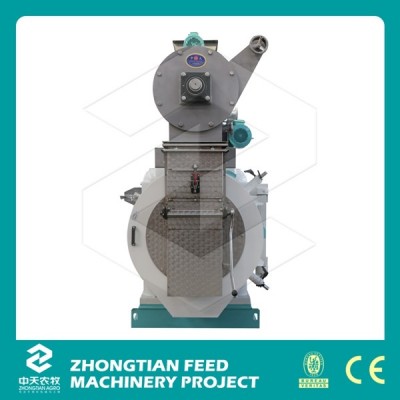

2016 Newest Ring Die Chicken Feed Pellet Machine
(1) Gear directly-connecting driving is adopted for high efficiency;
(2) Full stainless steel feeder;Variable pitch anti-bridging structure;Imported FC control;
(3) LL stainless steel conditioner with axial steam spraying extends the conditioning and cooking time;
(4) Main gear and pinion shaft adopt the carbonizing quenching with high accuracy;Smooth driving, low noise and long service life;
(5) Gearbox and driving holes' accuracy are guaranteed by specialized casting supplier and NCC;
(6) The bearing and oil seal of animal feed machine with CE certification in the main drive are imported, and especially lubrication oil return system is available to ensure reliable bearing lubrication;
(7) 2 pc quick disassembling type precisely-cast die clamp is adopted to connect the die and quill flange, resulting in convenient and quick disassembling of die;
(8) Pellet chamber door and feed chute are fully made of stainless steel with high anti-corrosion ability and long service life;
(9) The connection between motor and gearbox adopts new type S-shape spring coupling with more convenient disassembling and assembling and more reliable use
| Technique Data of Animal Feed Machine with CE Certification |
| | | Model | Main Power
(KW) | Capacity
(t/h) | Feeder Power
(KW) | Conditioner Power
(KW) | DieDIameter
(mm) | Pellet Size
(mm) | | SZLH350 | 55 | 2-5 | 0.7 | 3 | 350 | 2-18 | | SZLH400 | 75/90 | 3-8 | 1.1 | 4 | 400 | 2-18 | | SZLH420 | 110 | 5-12 | 1.1 | 5.5 | 420 | 2-18 | | SZLH508 | 132/160 | 8-15 | 1.5 | 7.5 | 508 | 2-18 | | SZLH578 | 160/185 | 10-20 | 1.5 | 7.5 | 558 | 2-18 | | SZLH678 | 200/250 | 15-28 | 2.2 | 11 | 678 | 2-18 | | SZLH768 | 250/280/315 | 20-35 | 2.2 | 11 | 768 | 2-18 |
| |
Livestock & Poultry Complete Engineering
Provide Layout ,Flow design, Manufacture, Installation, Commissioning,Electrical Control and Operation Training.
(1) Construction of all sizes livestock and poultry premix production line (5-120t / h)
(2) Tailored to your animal feed machine's production plant and a full-service
(3) Can be formulated according to customer requirements, installation
Livestock Poultry Feed Production Line
(1) 10-80t/h pig feed production line
(2) 10-20t/h suckling pig feed production line
(3) 10-80t/h chicken feed production line
(4) 10-80t/h duck feed, goose feed production line
(5) 10-60t/h rabbit feed production line
Our Service
(1) Warranty time: one year, from the date which the animal feed machine is qualified commissioning. Any damage except the wrong operation during warranty period is repaired freely. But the travel and hotel expenses should be count on buyer.
(2) Commissioning services: the animal feed machine's installation and commissioning at the demand side, our engineers will not leave there untill get your agreement.
(3) Training services: our engineers will train your staff to operate it during the period of installation and commissioning, and they will not leave there until your staff can operate it properly and normally.
(4) Maintenance services: any malfunction happened, once you enquiry us, we will reply you within 48 hours except the special reasons.
(5) Lifelong services: we provide lifelong services for all the animal feed machine we sold out, and supply the spare parts with discount price.
Packaging:
Packing by wooden case or iron pallet usually,we also do 0ther packaging as per customer's requirement.
Shipping:
When the container arrived at our factory, our shipping operator and delivering equipments will be ready on time to ensure goods shipped based on Sales Order requirement.
