High Efficiency Water Drop Hammer Mill / Crusher / Pulverizer / Grinder--Jiangsu Zhongtian Agro Machinery Co., Ltd.

FOB Price:	US $19,460-20,040 / Piece
Min. Order:	1 Piece

Min. Order	FOB Price
1 Piece	US $19,460-20,040/ Piece

Basic Info

Model NO.: SFSP
Processing Object: Beans
Screen Mesh: With Screen Mesh
Pellet Mill Type: Ring Die Pelleter
Expanding Method: Dry Expansion
Applicable Materials Shape: Granular
Processing: Milling Machine
Power: 90-315kw
Motor: Siemens
Certification: Ce.BV.SGS.ISO
Dimension(L*W*H): 1900X1550X1650
Transport Package: Iron Pallet
Origin: Jiangsu Liyang

Type: Hammer Mill
Processing Technics: Crushing-before-Mixing
Grinding Equipment Type: Feed Hammer Mill
Bulking Machine Type: Sigle Screw Bulking Machine
Condition: New
Raw Material: Wheat , Corn, Straw, Maize
Capacity: 6-45t/H
Bearing: SKF
Voltage: 380V
Warranty: One Year Guarantee
Trademark: ZTMT
Specification: CE, BV, SGS
HS Code: 8436100000

Product Description

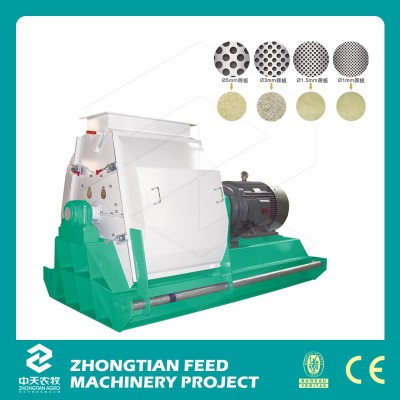

High Efficiency Water Drop Hammer Mill/Crusher/Pulverizer/Grinder

Crushing efficiency is improved more than 18%-20%, fine grinding particle fineness and uniformity is improved by more than 30%, crushing the material temperature by 0.5 ºC, selection of high quality alloy hammer, improve the efficiency of more than 50%.
1,Reasonable design of grinding chamber, Increasing pass ratio of material.

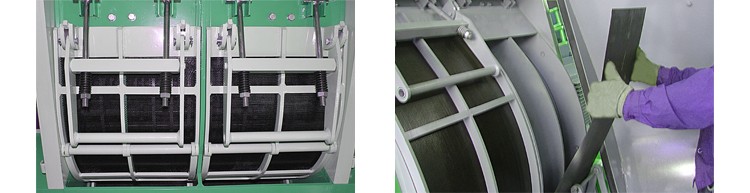

2,Reasonable and safe sieve pressing mechanism, convenient, quick and safe replacing of sieve

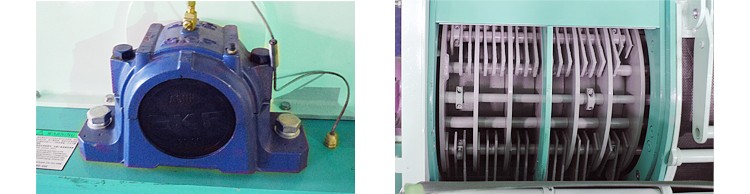

3,Special design and machined rotor assembly, ensure more smoothly, reliable and safe running.
4,Main motor and the filter system are interlock controlled, ensuring filter bag have good ventilating ability and increase capacity
5,Key part adopts imported product, increasing service life, reducing the cost of operation and maintenance.

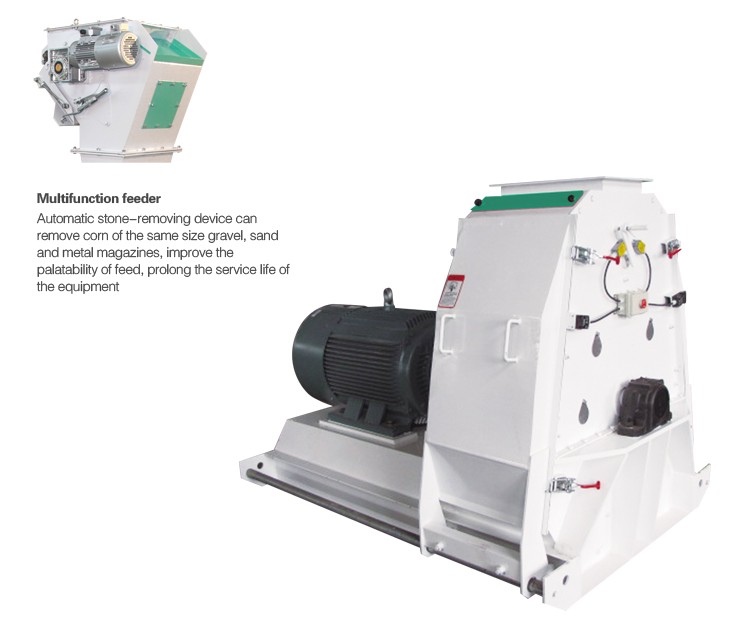

SFSP Poultry Hammer Mill

Show Details of poultry pellet mill with CE

Performance Parameter

Parameters Model	Dia. Of Rotor (mm)	Width Of Grinding Chamber(mm)	Speed Of Rotor (r/min)	Speed Of Beater (m/s)	No. Of Beater (pc)	Power (kw)	Aspiration(m³ /min)		Output(t/h)
Parameters Model	Dia. Of Rotor (mm)	Width Of Grinding Chamber(mm)	Speed Of Rotor (r/min)	Speed Of Beater (m/s)	No. Of Beater (pc)	Power (kw)	Coarse	Fine	Output(t/h)
SFSP668-I	660	380	2970	94	56	22/30	30	34	5-6
SFSP668-II	660	450	2970	94	64	45/55	40	45	7-12
SFSP668-III	660	600	2970	94	88	55/75	48	53	10-15
SFSP668-IV	660	750	2970	94	112	90/110	60	66	15-20

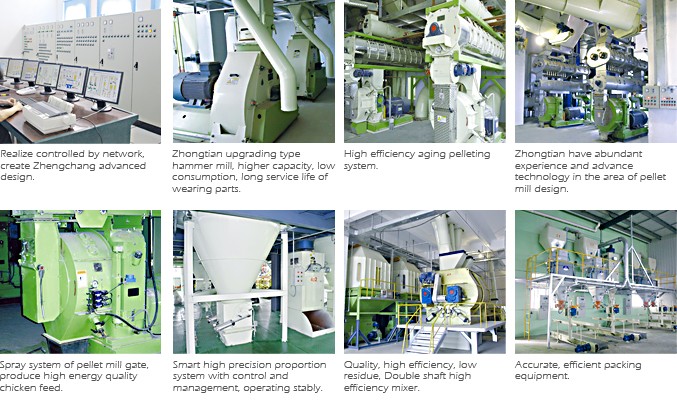

Livestock & Poultry Complete Engineering

Provide Layout ,Flow design, Manufacture, Installation, Commissioning,
Electrical Control and Operation Training.
1  Construction of all sizes livestock and poultry premix production line (5-120t / h)
2  Tailored to your production plant and a full-service
3  Can be formulated according to customer requirements, installation

Livestock Poultry Feed Production Line

1  10-80t/h pig feed production line
2  10-20t/h suckling pig feed production line
3  10-80t/h chicken feed production line
4  10-80t/h duck feed, goose feed production line
5  10-60t/h rabbit feed production line

Zhongtian Controls

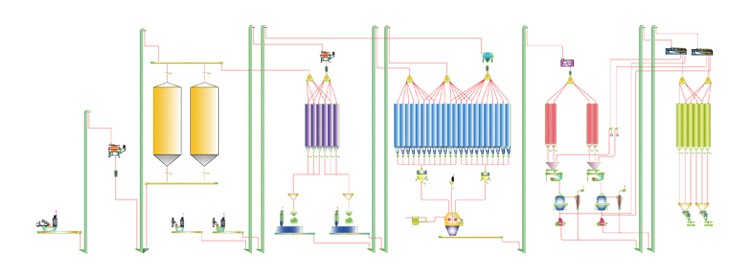

Livestock Production line Of high-end Schematic view

Honor Quality Assurance

Creating values for customers" as the core philosophy, Zhongtian agro is developing at the aspects of consistent integrity, technical innovation, products quality and stable development of enterprise, won the state, society and customers sure.
