Competitive Ring Die Pellet Mill for Animal Feed--Jiangsu Zhongtian Agro Machinery Co., Ltd.

FOB Price:	US $22,000-128,000 / Piece
Min. Order:	1 Piece

Min. Order	FOB Price
1 Piece	US $22,000-128,000/ Piece

Basic Info

Model NO.: SZLH508
Processing Object: Animal-Derived Feed
Screen Mesh: Without Screen Mesh
Pellet Mill Type: Ring Die Pelleter
Expanding Method: Wet Expansion
Applicable Materials Shape: Short strip
Brand Name: Ztmt
Power(W): 90-280kw
Capacity: 1-4t/H
Bearing: SKF
Usage: Biomass Industry
Transport Package: as Customers Require
Origin: Jiangsu, China (Mainland)

Type: Pellet Mill
Processing Technics: Crushing-before-Mixing
Grinding Equipment Type: Feed Hammer Mill
Bulking Machine Type: Sigle Screw Bulking Machine
Condition: New
Ceretification: Ce, BV, SGS
Pellet Size: 2-18mm
Weight: 4.5t
Motor: Siemens
Item: Wood Pellet Mill
Trademark: ZTMT
Specification: 2600*1300*2300mm
HS Code: 84361000

Product Description

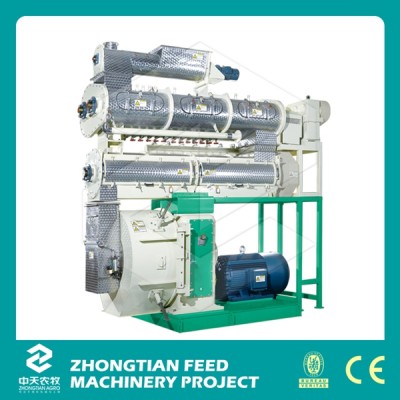

Competitive Ring Die Pellet Mill For Animal Feed

Product Description

Features

1. Gear directly-connecting driving is adopted for high efficiency;
2. Full stainless steel feeder; Variable pitch and anti bridging structure; Electromagnetic converter control;
3. Stainless steel conditioner; Axial steam spraying extends the conditioning time and cooking effect;
4. Main gear and pinion shaft adopt the carbonizing quenching with high accuracy; Smooth driving, low noise and long service life;
5. Gearbox and driving holes' accuracy are guaranteed by specialized casting supplier and NCC.
6. Feed Pelleting Machine is our new Ring Die equipment successfully developed by independent innovation. It overcomes many problems, such as the biomass coarse fiber is difficult for particle making, and with poor efficiency.
7. With the advanced international manufacture technology, We can offer you the high quality moulds for

your various feed machines with different materials. It will extend your machine's service lifetime, improve

product's quality and reduce your tonnage consumption cost.

Applicable Scope

Sawdust, rice husk, cotton stalk, cottonseed skins, weeds, crop stalks and etc.

Technical Paremeter

Model	SZLH320	SZLH350	SZLH400	SZLH420	SZLH508
Capacity:T/H	1-3	1.5-3.5	2-4	2.5-5	3-8
Rated Power:kw	37	55	90	110	132/160
Inner DIa. of ring die(mm)	φ320	φ350	φ400	φ420	φ508
Effective wide of ring die(mm)	90	100	120	120	156
Rotary speed of ring die(r/min)	305	336	307	276	274
Outer dia. of roller(mm)	φ140	φ165	φ190	φ206	φ222
Height of roller(mm)	96	106	126	126	162

Technical Parameter

Model	Main Power(KW)	Capacity t/h	Feeder Power(KW)	Conditioner Power(KW)	Diameter(mm)	Pellet Size(mm)
SZLH350	55	2-5	0.7	3	350	Ø2-Ø18
SZLH400	75/90	3-8	1.1	4	400	Ø2-Ø18
SZLH420	110	5-12	1.1	5.5	420	Ø2-Ø18
SZLH508	132/160	8-15	1.5	7.5	508	Ø2-Ø18
SZLH578	160/185	10-20	1.5	7.5	578	Ø2-Ø18
SZLH678	200/250	15-28	2.2	11	678	Ø2-Ø18
SZLH768	250/280/315	20-35	2.2	11	768	Ø2-Ø18

Part Exhibition

Poultry Feed Production Line

All kinds of feed pellet line, for processing fish feed livestock and poultry feed pellets (floating fish feed is not the processing below, it should be design individually).

The machine set integrates all the equipment required in processes of grinding, mixing, pelletizing, cooling, screening, lifting and conveying, electric control, etc. It can produce high-grand animal feed, aqua feed.

The machine is applicable for the feed mills and aquaculture farms with annual output of 1000-10000 tons per shift. This series has more than ten technologies with modular design. And the users can make choice according to their requirements.

All the machines are under centralized control. It can also be supplied with automatic proportioning system for full automatic production if required by the customer.

It is a middle-sized modular machine set integrating automation, high efficiency and advancement. It is ideal equipment for its low investment and quick returns.

Our Certification
Creating values for customers" as the core philosophy, Zhongtian agro is developing at the aspects
of consistent integrity, technical innovation, products quality and stable development of enterprise,
won the state, society and customers sure.

Competitive Ring Die Pellet Mill for Animal Feed

Our Service
(1)Warranty time:one year, from the date which the product is qualified commissioning. Any damage except the wrong operation during warranty period is repaired freely. But the travel and hotel expenses should be count on buyer.

(2)Commissioning services: the product's installation and commissioning at the demand side, our engineers will not leave there untill get your agreement.

(3)Training services: our engineers will train your staff to operate it during the period of installation and commissioning, and they will not leave there until your staff can operate it properly and normally.

(4)Maintenance services: any malfunction happened, once you enquiry us, we will reply you within 48 hours except the special reasons.

(5)Lifelong services: we provide lifelong services for all the products we sold out, and supply the spare parts with discount price.

FAQ

1. Will you help with installatino and stuff training ?
Of course, we can send our skilled engineers to provide you entire service from the installation, commissioning and training.

2. How do you control the quality?
We insist "Expertise create infinite" and always pay great attention to quality control from the very beginning to the end. You can also be reassured by our one-year warranty and CE&BV$SGS Certificates.

3. Can you provide turn-key project?
Yes, we have enough experience in installing turn-key projects overseas.

4. Where is your factory located? How can I visit there?
Our factory is located in Liyang City, Jiangsu Province, China, near Shanghai. You can fly to Shanghai airport or Nanjing Airport directly. All our clients, from home or abroad, are warmly welcome to visit us!
