Manufacturer of Feed Equipment / Feed Pellet Press MachineProduct features of Feed Equipment1 Gear directly-connecting driving is adopted for high efficiency;
2 Full stainless steel feeder; variable pitch anti-bridging structure; Imported FC control;

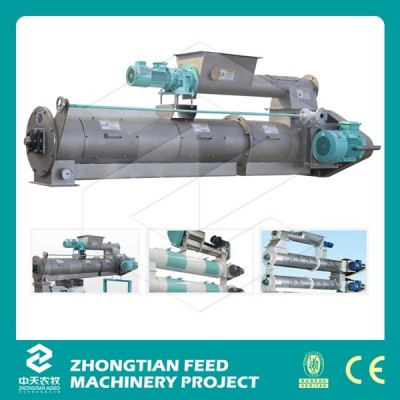

3 LL stainless steel conditioner with axial steam spraying extends the conditioning and cooking time;
4 Main gear and pinion shaft adopt the carbonizing quenching with high accuracy; smooth driving, low noise and long service life;
5 Gearbox and driving holes' accuracy are guaranteed by specialized casting supplier and NCC;
6 The bearing and oil seal in the main drive are imported, and especially lubrication oil return system is available to ensure reliable bearing lubrication;
7 2 pc quick disassembling type precisely-cast die clamp is adopted to connect the die and quill flange, resulting in convenient and quick disassembling of die;
8 Pellet chamber door and feed chute are fully made of stainless steel with high anti-corrosion ability and long service life;
9 The connection between motor and gearbox adopts new type S-shape spring coupling with more convenient disassembling and assembling and more reliable useSZLH400 Feed Equipment![Manufacturer of Feed Equipment / Feed Pellet Press Machine]()

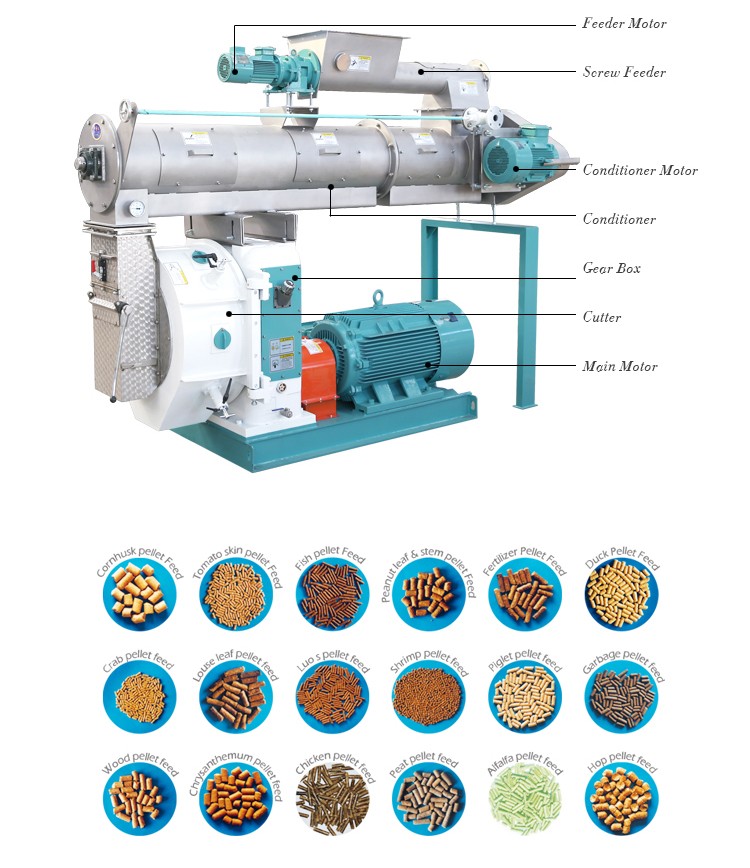

show details of Feed Equipment![Manufacturer of Feed Equipment / Feed Pellet Press Machine]()
Performance Parameter of Feed Equipment| Model | Main Power(kw) | Capacity(t/h) | Feeder Power(kw) | Conditioner Power(kw) | DieDlameter(mm) | Pellet Size(mm) |
| SZLH350 | 55 | 2-5 | 0.7 | 3 | 350 | 2-18mm |
| SZLH400 | 75/90 | 3-8 | 1.1 | 4 | 400 | 2-18mm |
| SZLH420 | 110 | 5-12 | 1.1 | 5.5 | 420 | 2-18mm |
| SZLH508 | 132/160 | 8-15 | 1.5 | 7.5 | 508 | 2-18mm |
| SZLH578 | 160/185 | 10-20 | 1.5 | 7.5 | 558 | 2-18mm |
| SZLH678 | 200/250 | 15-28 | 2.2 | 11 | 678 | 2-18mm |
| SZLH768 | 250/280/315 | 20-35 | 2.2 | 11 | 768 | 2-18mm |
![Manufacturer of Feed Equipment / Feed Pellet Press Machine]()
![Manufacturer of Feed Equipment / Feed Pellet Press Machine]()
Honor Quality AssuranceCreating values for customers" as the core philosophy, Zhongtian agro is developing at the aspects of consistent integrity, technical innovation, products quality and stable development of enterprise, won the state, society and customers sure. ![Manufacturer of Feed Equipment / Feed Pellet Press Machine]()
Packaging:Packing by Wooden case Usually,We also do Other Packaging as Per Customer's Requirement.Shipping: 1 European Countries: 22-28 days
2 United States: East --13-16 days, West--21-28 days
3 Brazil: 30-40 days
4 Russia: 36 days
5 Asia Countries: 3-5days Introduced here is just a small part of the product function,
if you are interested in our products,
we are hope you can contact us,
we will be sure to make you satisfied!!!
