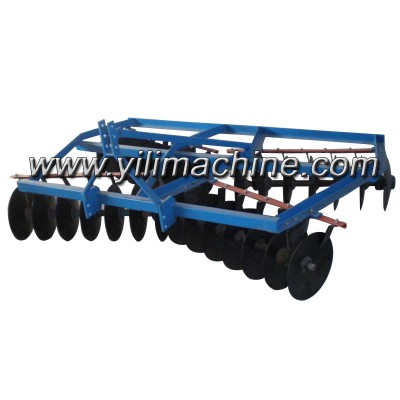

3 Point Opposed Disc Harrow--Yucheng Yili Machinery Co., Ltd.

FOB Price:	US $1,000 / Set
Min. Order:	1 Set

FOB Price:

US $1,000 / Set

Min. Order:

1 Set

Min. Order	FOB Price
1 Set	US $1,000/ Set

Min. Order

FOB Price

1 Set

US $1,000/ Set

Basic Info

Model NO.: 1BQDX series
Application Field: Agriculture
Power Source: Tractor
Traction Type: Semi Hanging
Arbor Configuration: Horizontal Axis
Use: Loosening The Land
Working Depth(Mm): 100-150
Trademark: yili
Origin: China

Type: Disc Plough
Farming Policy: Dry Cultivating Machinery
Operation: Soil Preparation Machinery, Movable Operation
Drive Type: Gear Drive
Color: Red
Working Width(M): 1.25-5.0
No. of Disc: 16-60
Specification: Iso9001

Product Description

The Field General Line of Disc Harrows are constructed with heavy rigid angle iron. The disc gang axles are made of 1" square steel rods mounted on double thrust ring gray-iron bearings. All disc harrows have angle adjustments of 10 or 15 degrees. The Field General line of discs are designed with today's compact tractors in mind.

Model	1BQDX -1.25	1BQDX -1.6	1BQDX -2.0	1BQDX -2.3	1BQDX -2.65	1BQDX -3.0	1BQDX-5.0
Working width(m)	1.25	1.6	2.0	2.3	2.65	3.0	5.0
Working depth(mm)	100-140
No. of disc	16	20	24	28	32	36	60
Dia. of disc(mm)	460
Weight(kg)	330	390	460	560	600	650	1550
Fitted power(HP)	35-40	40-45	50-60	60-75	75-85	80-100	80-100
Linkage	Standard three-point mounted						Trailed
