Professional Manufacture Aquatic Fish Feed Pellet Machine--Jiangsu Liangyou Agro Machinery Co., Ltd.

FOB Price:	US $1-30,000 / Set
Min. Order:	1 Set

Min. Order	FOB Price
1 Set	US $1-30,000/ Set

Basic Info

Model NO.: SZLH508b2
Processing Object: Animal-Derived Feed
Screen Mesh: With Screen Mesh
Condition: New
Output (T/H): 4-20
Power of Conditioner (Kw): 7.5×2
ID of Die(mm): 508
Clamp: 3 PCS Quick Disassembling Type Precisely-Cast Die
Model Number: Szlh508b2
Specification: CE, ISO, SGS
HS Code: 8436100000

Type: Pellet Mill
Processing Technics: Mixing-before-Crushing
Pellet Mill Type: Ring Die Pelleter
Applicable Materials Shape: Granular
Main Power(Kw): 110/132/160
Power of Feeder(Kw): 1.5/2.2
Pellet Size(mm): 2-18
Gearbox: Ht250 High Quality Gearbox with Long Life
Trademark: FDSP
Origin: Jiangsu China

Product Description

FDSP feed pellet mill is an ideal Feed Pellet Machine for high quality sinking fish feed pellets.

Features of 508b2 Feed Pellet Machine
1) Gear-driven transmission system to ensure high efficiency(above 97%).

2) Using spheroidal graphite cast iron, the machine body is more durable.

3)Treated by hardness quenching and milling machine,the gears maintain high concentricity with the shaft.

4)With lubrication system, you can add grease to main shaft without having to turn off the machine .

5)The ring die mould are cast by heat processing technology, thus having a durable life and producing qualified pellets.

6)Equipped with an advanced compensation serpentine-spring coupling which connects the pelletizing chamber with the motor to increase safety and stability.

7) Permanent magnet device can remove impurities in the pelletizing process.
Technical parameters of 508b2 Feed Pellet Machine

Model	Output (t/h)	Main Power (kw)	Inner diameter of Die (mm)	Pellet Size (mm)
SZLH320b2	2-5	37/45	320	2-6
SZLH350b2	2-7	55	350	2-6
SZLH400b2	3-10	75/90	400	2-6
SZLH420b2	3-12	90/110	420	2-6
SZLH508b2	4-20	110/132/160	508	2-6

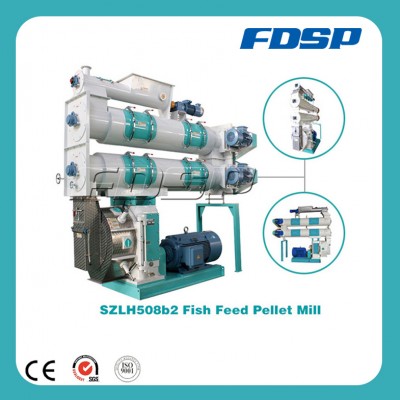

FDSP 508b2 Feed Pellet Machine

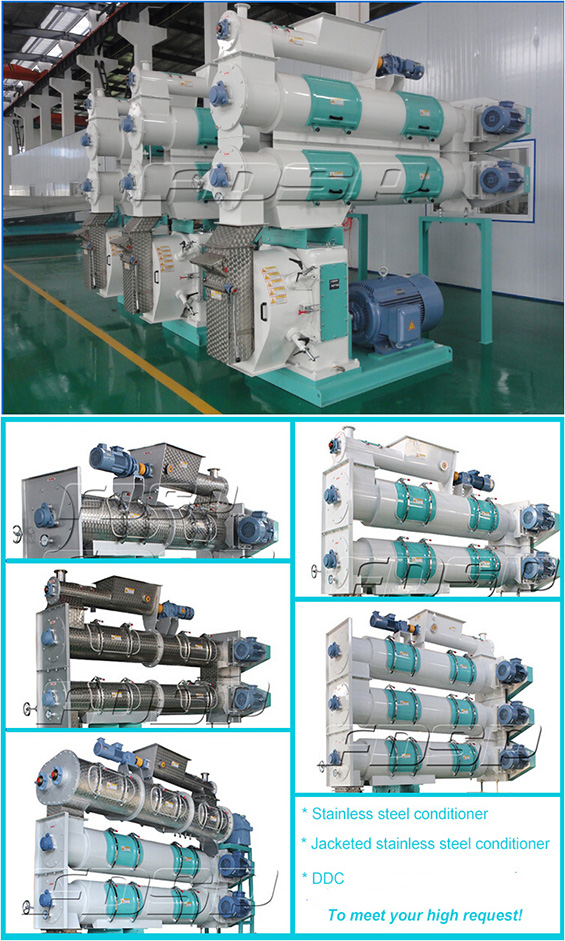

All the FDSP conditioners are made from stainless steel, have a very stable design and allow an easy installation on top of the pellet mill. We can customize different kinds of conditioners to meet your request.
Professional Manufacture Aquatic Fish Feed Pellet Machine

Professional Manufacture Aquatic Fish Feed Pellet Machine

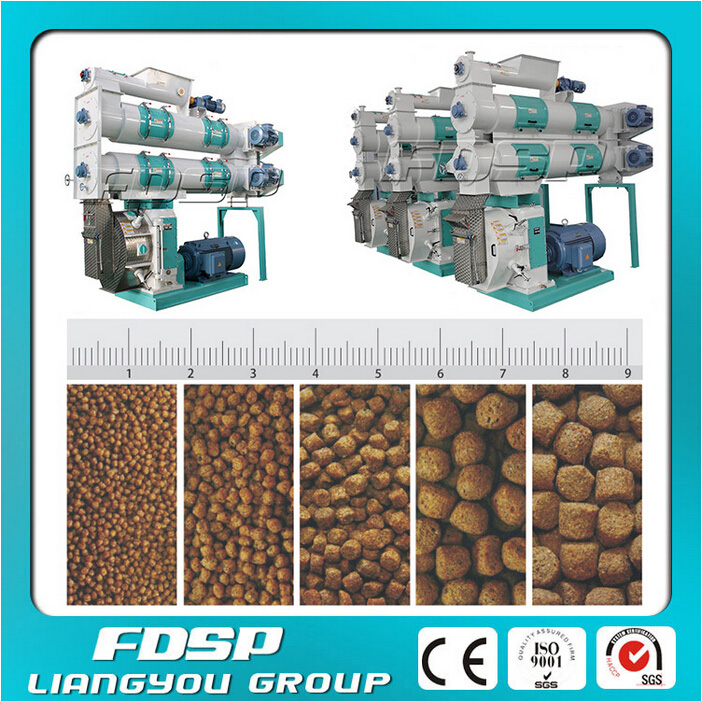

Feed pellets produced by 508b2 Feed Pellet Machine

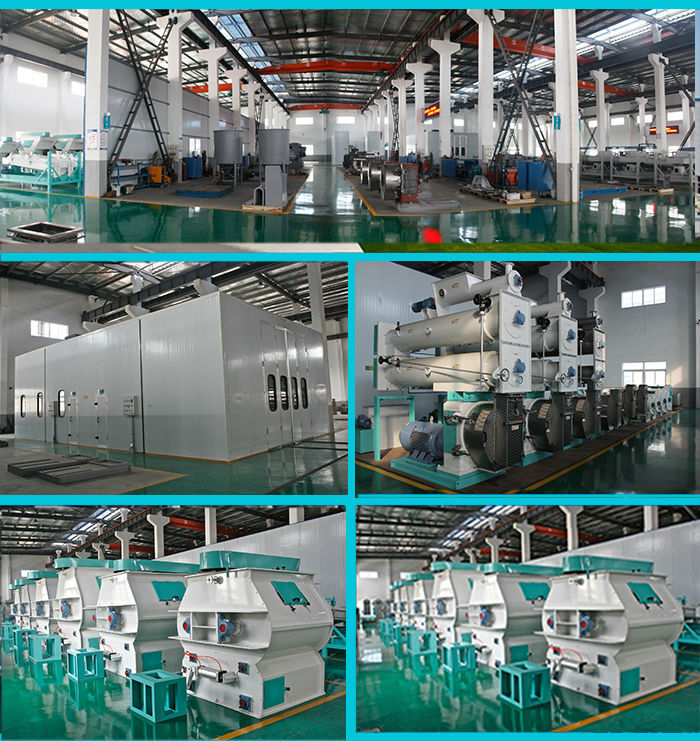

Company View

We manufacture and export feed machines more than 15 years, and we can make over1,000 sets of pellet mills each year.Covering total area of 15,000 square meters with over 200 staffs, our company has two large scale workshops andone large comprehensive warehouse. We have full set of production facilities and series of CNC machines to meet forging, casting, machining, etc.
