This line is for production of poultry feed like chicken, duck, geese feed, but also livestock feed such as cattle, cow, horse, rabbit, pig feed etc, it is applicable for various small poultry farms, feed factory or home use.Technical parameters Model | Total Power (kw) | Output (t/h) | Floor Area(m) (L*W*H) | Main Machines model |
SKJZ1800 | 55 | 0.5-2 | 6*4*8 | SFSP50.SLHY0.4,SZLH25.SNSZ80 |
SKJZ3000 | 80 | 1-3 | 8*6*8 | SFSP568 (22kw), SLHY0.6,SZLH25,SNSZ80 |
SKJZ3800 | 136 | 2-4 | 8.5*7.5*11 | SFSP568 (30kw), SLHY1,SZLH32,SKLN2.5, SSLG15*80,SFJH80*2C |
SKJZ4800 | 145 | 3-5 | 9.5*8.5*12 | SFSP568( 37kw), SHSJ1 SZLH320( 37kw), SKLN2.5 SSLG15*100, SFJH80*2C |
SKJZ5800 | 191 | 4-5 | 10 × 9× 13 | SFSP668( 55kw),SHSJ1, SZLH350( 55kw),SKLN2.5, SSLG15×100,SFJH100×2C |
Note: We can equip the suitable main machine according to customer's requirements and can specially design the size of a factory and technical format, etc. |
This machine is also called poultry feed machine,poultry feed manufacturing machine,poultry feed making machine,poultry pellet feed machine,poultry feed plant,poultry feed pellet making machine,poultry feed processing equipment,poultry feed production machine,etc.
Application:Making pellet,mash feed
1. Poultry & livestock feed Processing engineering
Feeds for animals in various growing period;Different capacity, varied from 0.5 to 10TPH per line;
Meeting the standards of different countries and regions.
2. Premix feed Processing engineering
Specialized equipment and process flow;Effectively controlled cross contamination, residue and dust emission;Different capacity, varied from 0.5-10 TPH per line.
3. Pet-food feed Processing engineering
Specialized extruder, dryer and coater adopted;Different capacity, varied from 1.5 to 5 TPH per line.
Raw material: all kinds of cereal like soybean, maize,and grass like alfafa,etc
Complete feed pellet line show
Raw material receiving and pre-cleaning---crushing---mixing---pelleting---cooling--(Crumbling)--sieving---packing
Animal feed production line is made up of below several sections:
Cleaning process as your requirement
To clean the material in order to ensure the quality of the products and the regular
working of all equipment.
(1) crushing process
The task of this section is to crush the clean materials we got in the last section into
powder(less than 3mm),and then deliver the powder to the next section.
(2)mixing process
The task of this section is:
A. evenly mix different materials into complete powder feed.
B. According to the certain operation order between the bin for the mixer, the mixer and
the buffer bin,to ensure the continuous operation.
(3) pelletizing process
The task of this section is to pelletize the powder feed to required sizes.
Cooling Process
After the pelletizing process,the temperature of the feed pellet is about 60/80 degrees
Celsius,with a moisture content of about 15%.A Cooler must then be used to reduce
the moisture content of the pellets to about 3/4%,thereby making the pellets easier to
store.
(4). Sieving Process
It is for screening and classifying of mash or pellet feed.
(5). Packing Process
Independent packaging system, manual packing ,optional automatic packing like following, high precision.10-50KG/bag, 800-1000kg per bag.
Electrical Control System for SKJZ
the mimic panel is adopted. All machines can be interlocked and safety, alarm device is available.The operation is simple and convenient
Finished product:mash and pellet

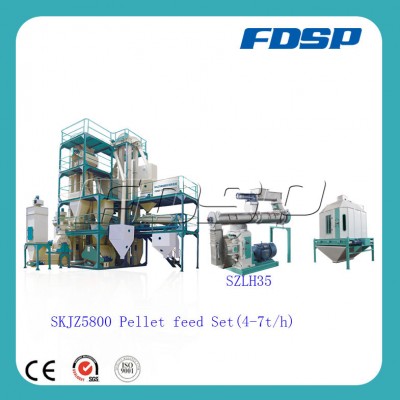

Typical lines: SKJZ1800, SKJZ3000,SKJZ3800,SKJZ4800,SKJZ5800

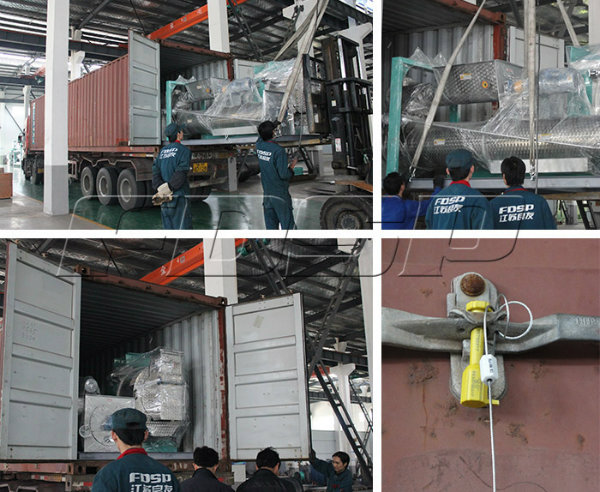

Packing and shipment:
![Small Animal Poultry Pellet Feed Production Plant for Sale]()

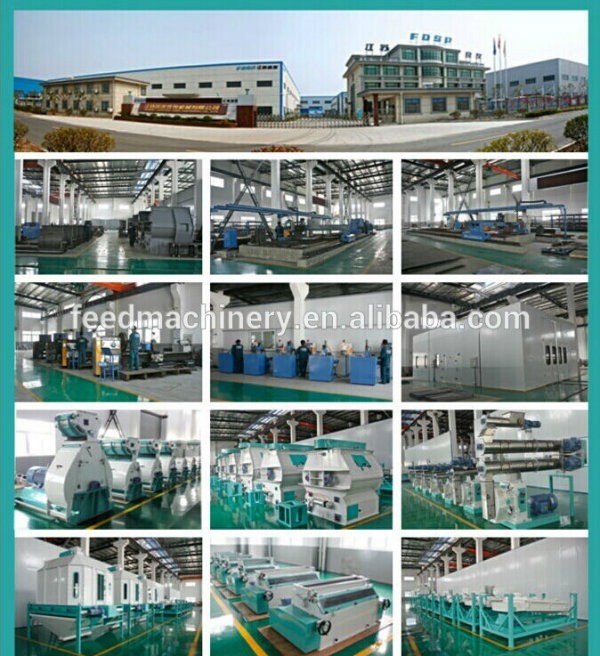

Customer visiting
![Small Animal Poultry Pellet Feed Production Plant for Sale]()
Certificate:
![Small Animal Poultry Pellet Feed Production Plant for Sale]()
