High Efficient Floating Fish Feed Plant Shrimp Feed Production Line

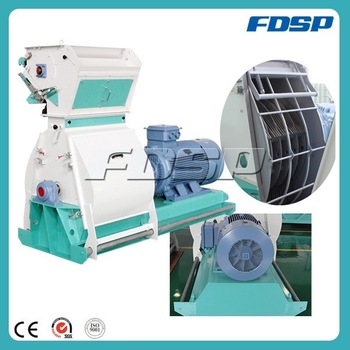

1.Material grinding---- feed hammer millRaw material ingredients should be grinded to the required size by feed grinder. We supply two types of feed grinders to meet your different requirements: SFSP668/SFSP999 feed
Hammer Mill is suitable for small or medium sized feed extruding factories; SFSP568/
SFSP998 feed Hammer mill is used for grinding raw materials by large and medium
livestock and aqua feed mills; SFSP668/SFSP999 hammer mill, also called Wide chamber
Fine feed Hammer Mill, is mainly applied to fine grinding of meals for special aqua feed.
![High Efficient Fish Feed Plant Shrimp Feed Production Line]()

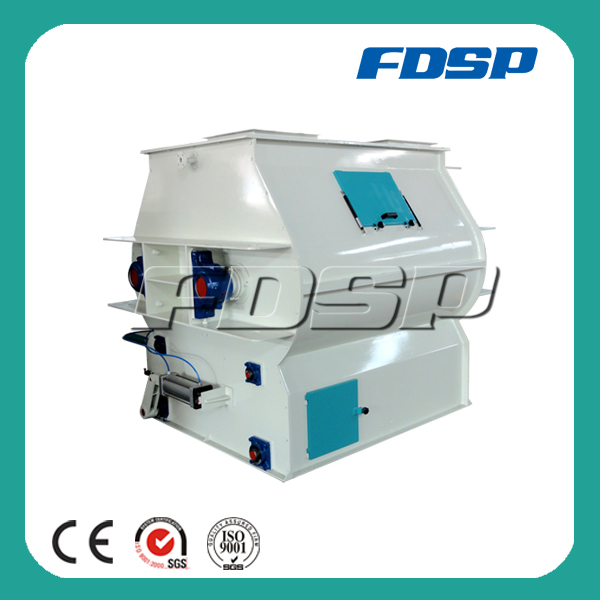

2. Material mixing---feed mixerMixing the material thoroughly can ensure extruding efficiency and improve the feed quality. We supply two kinds of feed mixers for you to choose: double-shaft efficient mixer can be
applied to mixing powdery,granular, flaky and blocky materials while feed ribbon type mixer
is mostly used for mixing powdery materials.These two kinds of mixers can be customized
with atomizing spraying system which will add liquid like molasses and grease to material
more evenly.
![High Efficient Fish Feed Plant Shrimp Feed Production Line]()

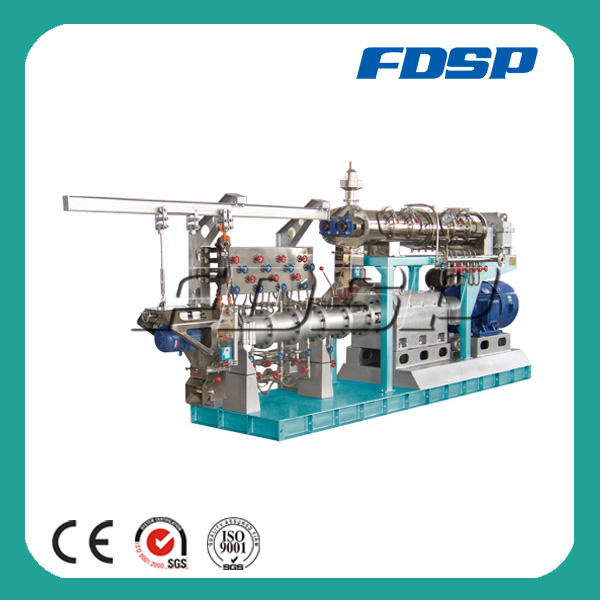

3. Extruding process--- floating feed pellet extruderOur fish feed pellet machine can be divided into two types: dry type fish feed machine and wet type feed machine. The wet type is with the conditioner and need to equip the steam
boiler. The dry type fish feed extruder is cheaper while the capacity of the wet type fish
feed extruder is higher, so usually the wet type fish feed extruder is suitable for large feed pellet factory and the dry type fish feed extruder is better and economic for the small and
medium size user or factory.
![High Efficient Fish Feed Plant Shrimp Feed Production Line]()
Extruder | Product | Model | Power(kw) | Capacity(t/h) |
| Single-Screw Dry Extruder | SPHG100D | 30 | 0.1-0.4 |
| 37 | 0.1-0.5 |
| SPHG135D | 55 | 0.3-0.6 |
| 75 | 0.4-0.7 |
| SPHG155D | 90 | 0.5-1.2 |
| SPHG200D | 132 | 1-2 |
| Material Extruder | SPHS100DY | 30 | 0.5-1.0 |
| 37 | 0.7-1.5 |
| SPHS135DY | 55 | 1.2-2.5 |
| 75 | 1.6-3.5 |
| SPHS135DY | 90 | 2.0-4.0 |
| Double-screw Dry Extruder | SPHG65S | 22 | 0.1-0.2 |
| SPHG68S | 30 | 0.15-0.3 |
| SPHG80S | 37 | 0.2-0.4 |
| SPHG85S | 45 | 0.3-0.5 |
| Single-screw Steam Extruder | SPHS135D | 75/90/110 | 1-2 |
| SPHS165D | 132/160/200 | 3-5 |
| SPHS218D | 250/280 | 6-10 |
| Double-screw Sream Extruder | SPHS65DS | 22 | 0.15-0.3 |
| SPHS66DS | 30 | 0.2-0.4 |
| SPHS68DS | 37 | 0.25-0.5 |
| SPHS80DS | 45 | 0.35-0.6 |
| Dry Extruder | SPHG2500b | 55/75 | 0.6-1.8 |
| SPHG3200b | 90/110 | 1.0-2.5 |
| SPHG5000b | 110/132 | 3.0-7.0 |
| Double-screw Sream Extruder | SPHS118S | 90 | 0.8-2.0 |
| SPHS120S | 110 | 1.5-2.2 |
| SPHS145S | 132 | 2-4 |
| SPHS148S | 160-200 | 3-6 |
| SPHS150S | 200-135 | 8-10 |

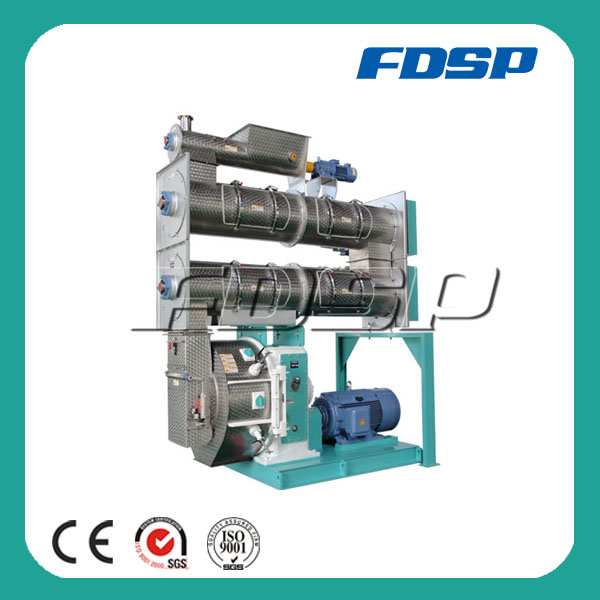

Aua Feed Pellet Mill(Double Jacket Conditioner) | Model | Power(kw) | Capacity(t/h) |
| SZLH320b2 | 37/45 | 2-5 |
| SZLH350b2 | 55 | 2-7 |
| SZLH400b2 | 75/90 | 3-10 |
| SZLH420b2 | 90/110 | 3-12 |
| SZLH508b2 | 110/132/160 | 4-20 |
Shrimp Feed Pellet Mill | Model | Output(t/h) | Main Power(kw) | Inner diameter of Die(mm) |
| XZLH32 | 0.3-0.8 | 37/45 | 320 |
| XZLH35 | 0.5-1 | 55 | 350 |
| XZLH400 | 0.8-2.0 | 75/90 | 400 |
| XZLH420 | 1.0-2.5 | 90/110 | 420 |
| XZLH508 | 1.5-3.5 | 110/132/160 | 508 |
![High Efficient Fish Feed Plant Shrimp Feed Production Line]()
4.Pellets drying---feed pellet dryerOur mesh belt dryer is a continuous convective belt dryer. Pellets formed through the extruder are stacked in layers on a wire mesh or perforated plate belt conveyor and
conveyed continuously through drying chambers. During this process, the drying air is passed repeatedly through the products layer until pellets have the optimum moisture content before leaving the dryer. While if you choose wet type fish feed machine, we recommend the gas type pellet dryer.

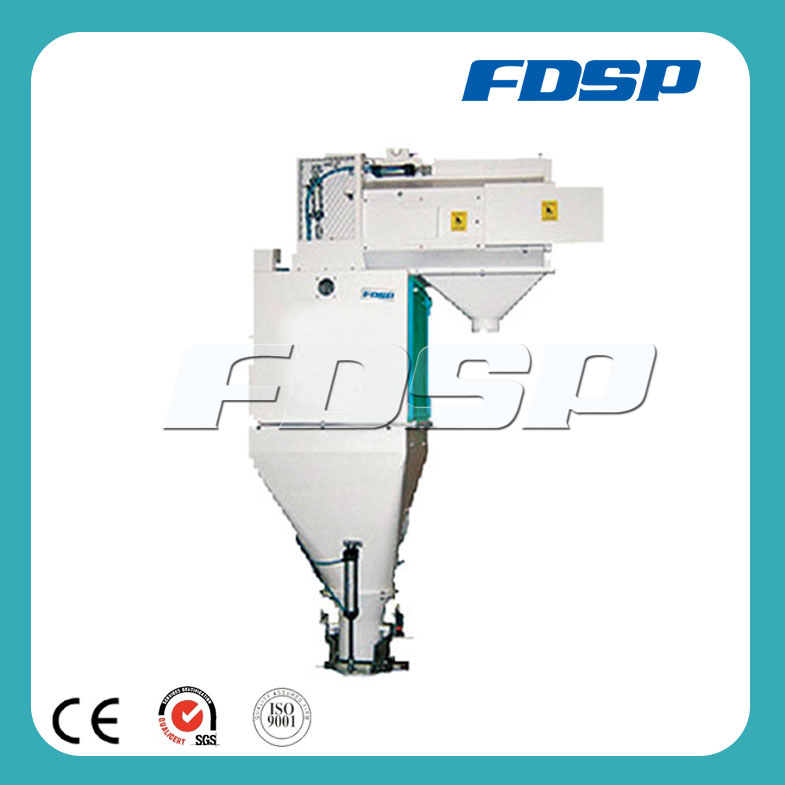

5. Pellet packing---electronic packing machineTo make the finished pellets easy to store, transport and catch the clients' eyes, they should be packed properly. With our electronic weighing and packing machine, the finished pellets
can be packed into bags,weighed, conveyed, and sealed automatically, which saves labor
and time greatly and meet the requirements of large scale production. For this packing machine, automatic heat typing code, automatic bag sewing and automatic thread cutting
can be optional functions.
![High Efficient Fish Feed Plant Shrimp Feed Production Line]()
Our ServiceIn presales we provide users with comprehensive technical support. We provide comprehensive customer training, including in charge of the procedures, operating procedures, maintenance procedures, equipment, general maintenance, equipment, longterm hazard assessment knowledge and so on. Before the users buy our equipment, they must come to our company to accept a series of training. After the examination for equipment operation personnel, we will issue husbandry machinery operation qualification certificate. We suggest user to set up the remote control system. Our company aftersales service can guide the user through the remote control system for regular maintenance equipment key parts. Our aim is: to do a responsible enterprise, let customers safely use the best feed machinery!
FAQ1. Q: Are you a factory or trading company?
A: We are a factory.
2. Q: Where is your factory located? How can I visit there?
A: Our factory is located in Liyang City, Jiangsu Province, China, near Shanghai. You can fly to Shanghaiairport directly. All our clients, from home or abroad, are warmly welcome to visit us!
