China Manufacturer Poultry Feed Production Line Small Capacity
5-6TPH Cattle Feed Line
Application:Making pellet,mash feed1. Poultry & livestock feed Processing engineering
Feeds for animals in various growing period;Different capacity, varied from 0.5 to 10TPH per line;
Meeting the standards of different countries and regions.
2. Premix feed Processing engineering
Specialized equipment and process flow;Effectively controlled cross contamination, residue and dust emission;Different capacity, varied from 0.5-10 TPH per line.
3. Pet-food feed Processing engineering
Specialized extruder, dryer and coater adopted;Different capacity, varied from 1.5 to 5 TPH per line.
Technical parameter:
Model | Total Power
(kw) | Output
(t/h) | Floor Area (m)
(L× W ×H ) | Main Equipment |
| SKJZ1800 | 43.5 | 0.5-1.5 | 6 × 4× 8 | SFSP50.SLHY0.4,SZLH25.SNSZ80 |

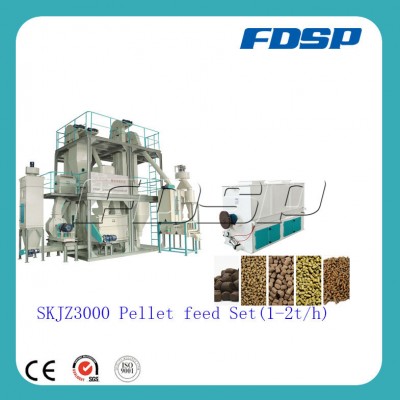

| SKJZ3000 | 80 | Mash:3-4
Granule:0.5-2 | 8× 6 × 8 | SFSP568 22kw,
SLHY0.6,SZLH25,SNSZ11×11 |
| SKJZ3800 | 136 | 2-4 | 8.5 × 7.5 × 11 | SFSP568 30kw,SLHY1,
SZLH320,SKLN2.5,
SSLG15×80,SFJH802C |
| SKJZ4800 | 145 | 3-5 | 9.5 × 8.5 ×12 | SFSP568 30kw,SLHY1,
SZLH320,SKLN2.5,
SSLG15×80,SFJH802C |
| SKJZ5800 | 191 | 5-6 | 10 × 9× 13 | SFSP668 55kw,SHSJ1,
SZLH350 55kw,SKLN2.5,
SSLG15×100,SFJH100×2C |
(1)Cleaning process as your requirement
To clean the material in order to ensure the quality of the products and the regular working of all equipment.

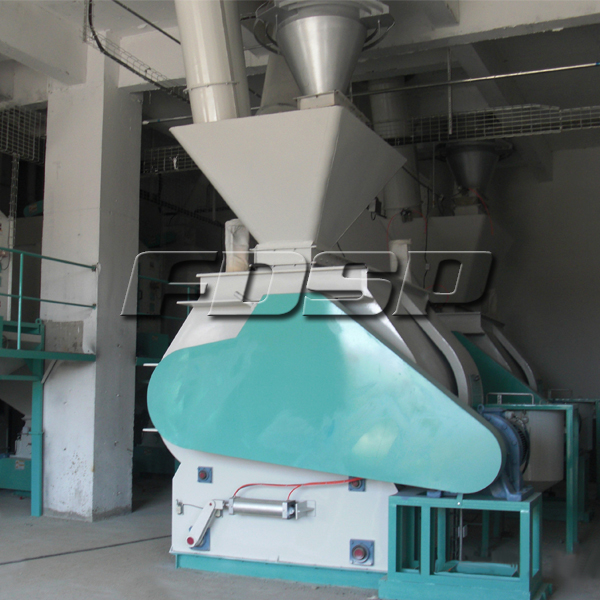

(2) crushing process
The task of this section is to crush the clean materials we got in the last section into powder(less than 3mm),and then deliver the powder to the next section.
![China Manufacturer Poultry Feed Production Line Small Capacity 5-6tph Cattle Feed Line]()
(3)mixing process
The task of this section is:
A. evenly mix different materials into complete powder feed.
B. According to the certain operation order between the bin for the mixer, the mixer and the buffer bin,to ensure the continuous operation.
![China Manufacturer Poultry Feed Production Line Small Capacity 5-6tph Cattle Feed Line]()

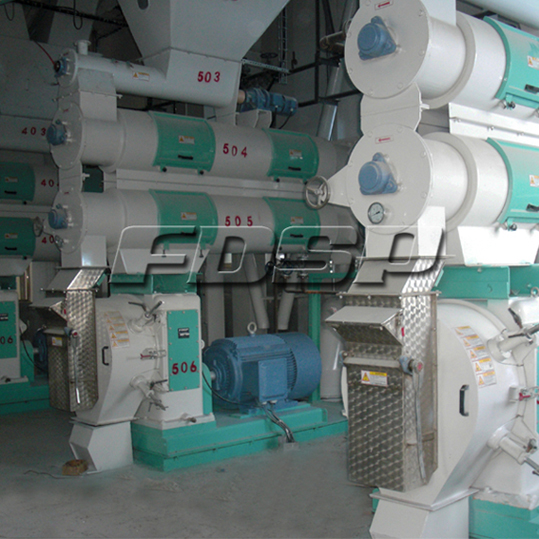

(4) pelletizing process
The task of this section is to pelletize the powder feed to required sizes.
![China Manufacturer Poultry Feed Production Line Small Capacity 5-6tph Cattle Feed Line]()

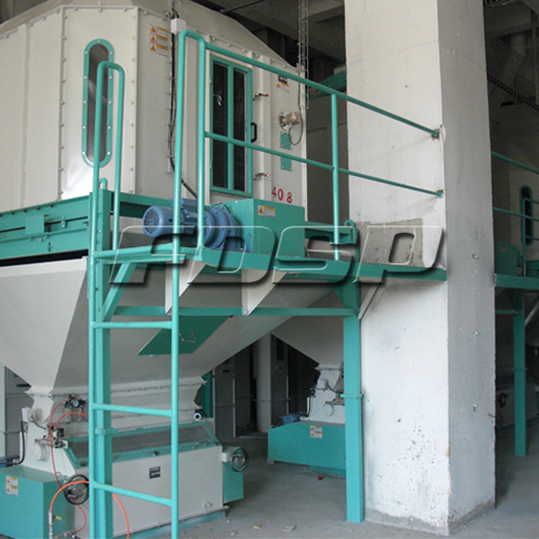

(5)Cooling Process
After the pelletizing process,the temperature of the feed pellet is about 60/80 degrees Celsius,with a moisture content of about 15%.A Cooler must then be used to reduce the moisture content of the pellets to about 3/4%,thereby making the pellets easier to store.
(6). Sieving Process
It is for screening and classifying of mash or pellet feed.
(7). Packing Process
Independent packaging system, manual packing ,optional automatic packing like following, high precision.10-50KG/bag, 800-1000kg per bag.
(8)Electrical Control System for SKJZ
the mimic panel is adopted. All machines can be interlocked and safety, alarm device is available.The operation is simple and convenient
Certifications:FDSP has obtained ISO9001:2008 international quality system certification, CE certification for feed machinery, fertilizer machinery, biomass equipment and complete sets of production line, SGS certification.![China Manufacturer Poultry Feed Production Line Small Capacity 5-6tph Cattle Feed Line]()
