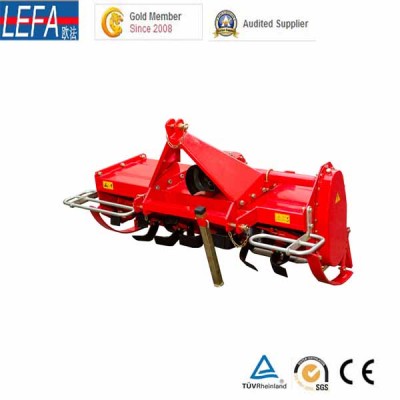

PTO Shaft 3 Point Hitch Rotray Tiller (CE/SGS/TUV)
Transmission: Gearbox driven.
Graphite gearbox is made of casting iron. Material performance is better. Not easy broken.
The suspension plate shape is not easy to deform.
Chain device hand adjustable. More easy and reliable.
Side protection plates are added onto the rear deflection. This device prevents the soil flying out.
The tilling height can be adjustable.
The structure is firm and stable due to the heavy weight.
1. We are the first one to produce tractor flail mower in China.
We have mature experience in this field.
2. We have engineer with many years experience in farm machine design.
3. We provide good after-sales service.
4. We will reply your email in 12 hours.
5. We provide professional shipment service to save delivery charges for customers.
6. Short lead time: 25 days to 30 days for one 20ft container.
7. We have got good credit grade from the government.
8. CE certificate provided.
9. OEM and ODM provided.
Model | LFH-105 | LFH-125 | LFH-135 | LFH-150 | LFH-180 |
Dimensions(L*W*H) | 1250*800*700mm | 1450*800*700mm | 1550*800*700mm | 1700*800*700mm | 2000*800*700mm |
Weight | 265 kg | 285 kg | 300 kg | 320 kg | 350 kg |
Number of blades | 24 | 30 | 30 | 36 | 42 |
Working width | 1045mm | 1245mm | 1345mm | 1495mm | 1795mm |
Working depth | 120mm | 120mm | 120mm | 120mm | 120mm |
PTO Input speed | 540r/min | 540r/min | 540r/min | 540r/min | 540r/min |
Power required | 20-30 HP | 25-35 HP | 30-40 HP | 30-50 HP | 40-75 HP |
More pictures for your referance.
